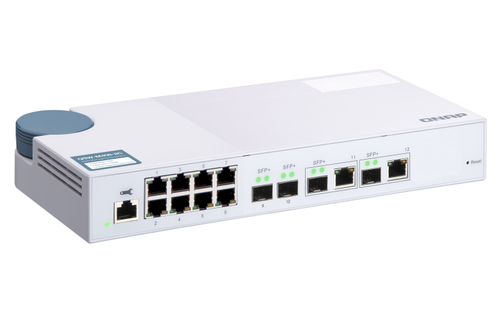

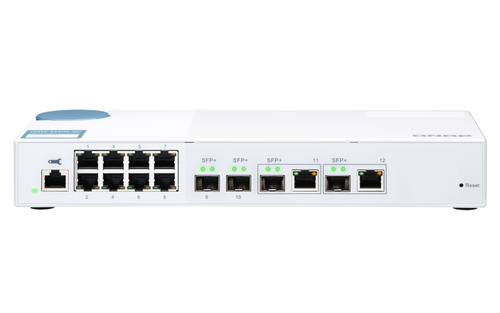

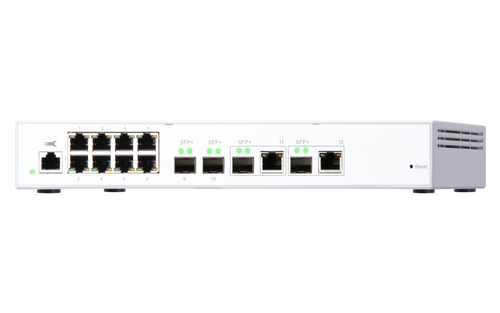

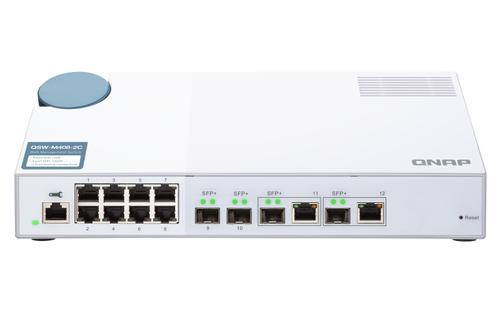

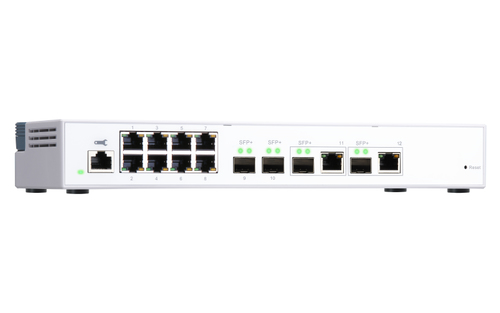

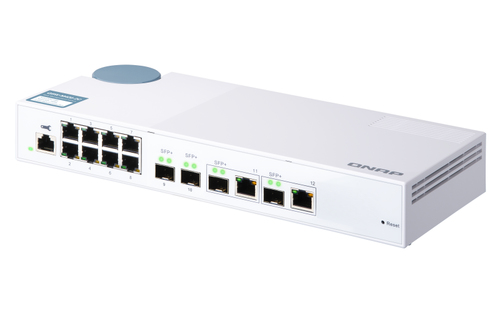

QNAP QSW-M408-2C network switch
QSW-M408-2C - 4713213516706
QNAP QSW-M408-2C network switch Managed L2 10G Ethernet (100/1000/10000) White
- Brand
- QNAP HW
- Product code
- QSW-M408-2C
- SKU
- 0VGRYGSB1QRYI
- EAN/GTIN
- 4713213516706
- The QSW-M408-2C is equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-2C offers higher transmission speeds when used with existing cables
- Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy
- The QSW-M408-2C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security
- The QSW-M408-2C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention
- Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-2C avoids packet loss from unparalleled bandwidth, and reduces power consumption for low-speed and inactive connections
- QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security
Product Info
8x RJ45 1GbE, 2x 10GbE SFP+/RJ45 Combo, 2x 10GbE SFP+, Web Managed, 100-240VAC, 50/60 Hz, 42.5 x 290 x 127 mm, 1.15 kg
QNAP QSW-M408-2C. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE...
The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Full duplex | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Private VLAN |
| Data transmission | |
| Switching capacity | 96 Gbit/s |
| Throughput | 48 Gbit/s |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans | 1 fan(s) |
| Electromagnetic compatibility | CLASS A |
| Certification | CE, FCC, VCCI, BSMI, CCC |
| Performance | |
| Noise level | 21 dB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 22.04 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 127 mm |
| Height | 42.5 mm |
| Weight | 1.15 kg |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Yes |
| Package weight | 1.57 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
