TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP235-WALL
- SKU
- SKXYIDBQT4DAV
- EAN/GTIN
- 6935364006341
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
Product Info

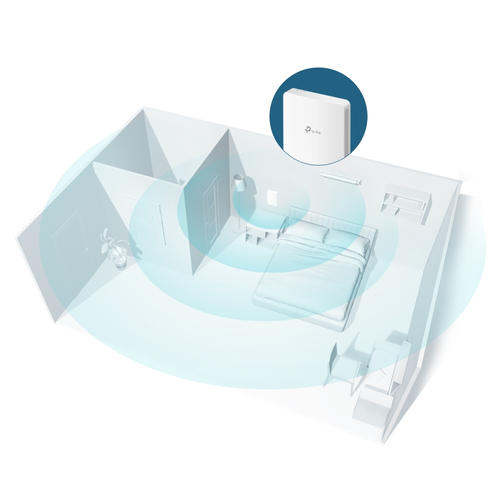

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

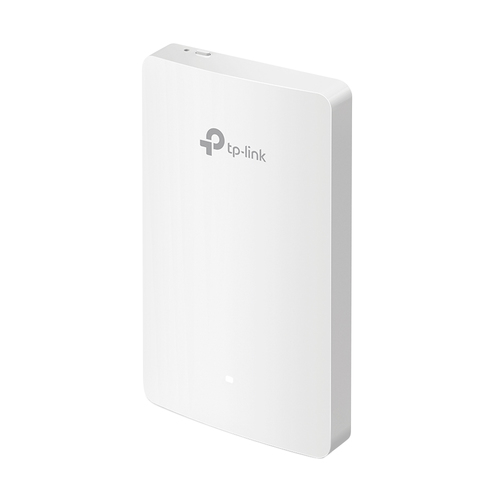

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

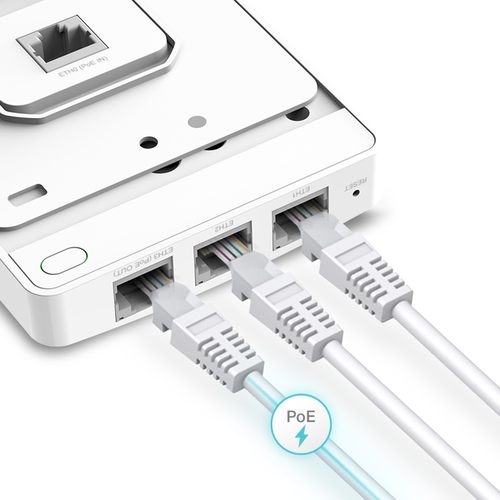

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 21 dBm |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Universal Plug and Play (UPnP) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Power consumption (typical) | 24.4 W |
| Design | |
| Placement | Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Reset button | Yes |
| LED indicators | LAN, Power, Status, WAN, WLAN |
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Performance | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Packaging data | |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 33 mm |
| Package weight | 300 g |
| Package type | Box |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
