TP-Link Gigabit Single-Mode Media Converter
- Brand
- TP-Link
- Product code
- MC210CS
- SKU
- DHNCWF39NE6LD
- Wired
- 1000 Mbit/s 15000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Single-mode Fiber ports quantity: 1 SC
- Black
Product Info
- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 15km

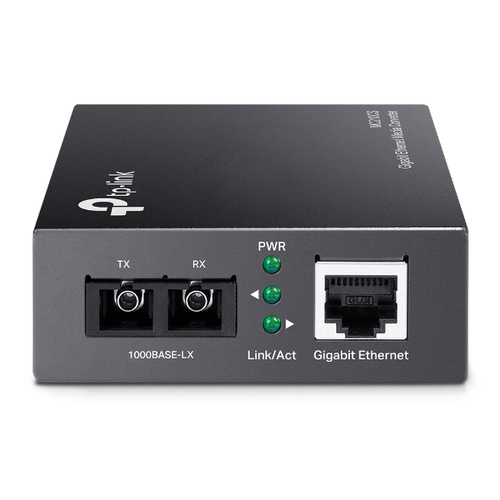

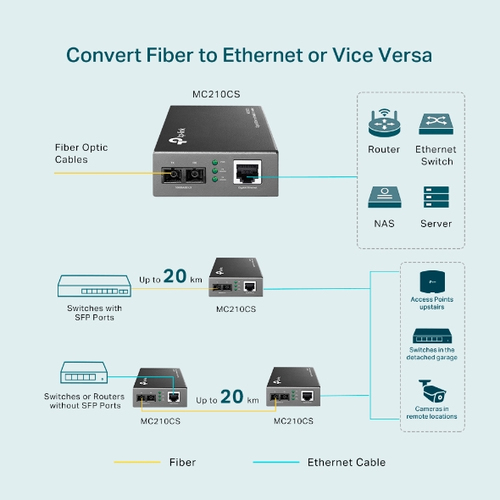

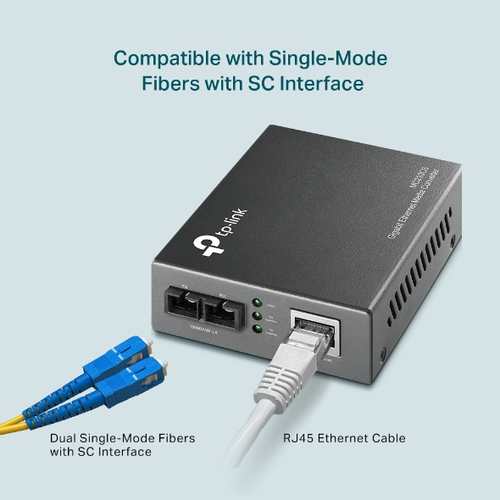

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat6 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 15000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Design | |
| Internal | No |

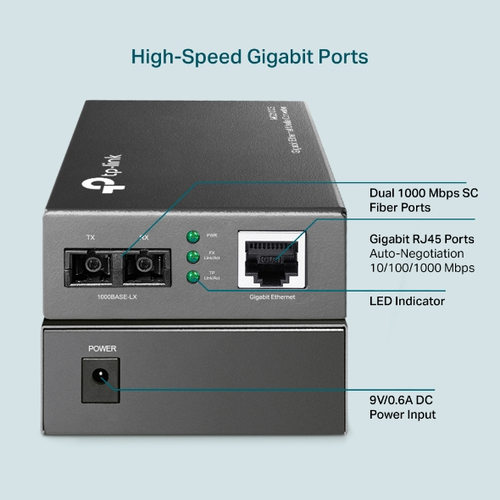

| LED indicators | Activity, Power |
| Product colour | Black |
| Certification | FCC, CE |
| Power | |
| Power consumption (max) | 5.5 W |
| Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 430 g |
| Technical details | |
| Sustainability certificates | RoHS |
