TP-Link Power over Ethernet Adapter Kit
- Brand
- TP-Link
- Product code
- TL-POE200
- SKU
- 7L0IOHL4LI4WP
- EAN/GTIN
- 6935364030551
- Carries power & data over a single Ethernet cable up to 100 meters away
- Selectable power output
- Plug-and-Play, requires no configuration
Product Info

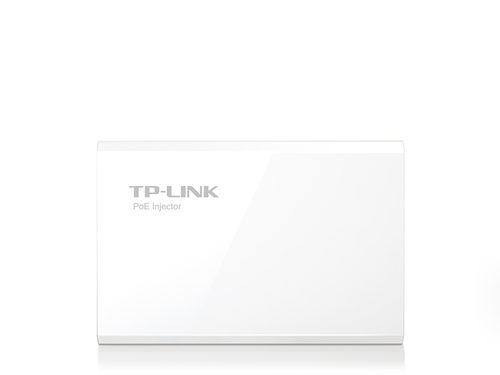

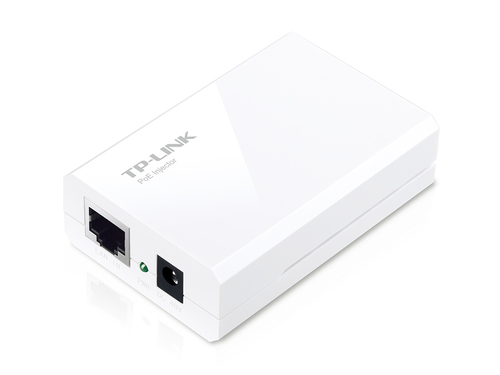

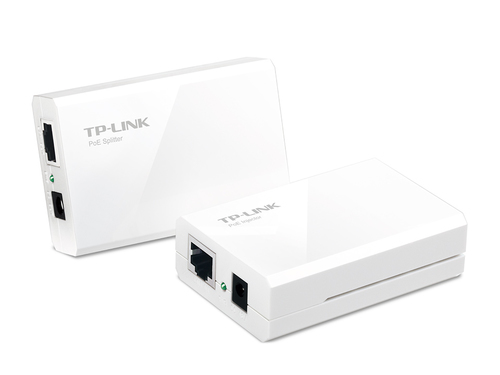

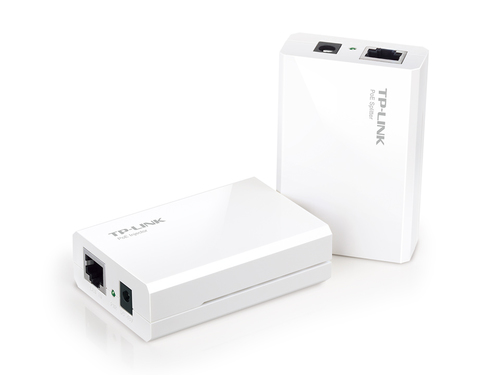

The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.
TP-LINKs TL-POE200 uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.
- Delivers power and data through a single Ethernet cable for simple network extension
- Transmits power & data over an Ethernet cable up to 100m(328 feet) away
- Plug and play design provides a hassle free setup
- 12/9/5VDC triple output adapts to different Ethernet-enable devices
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Compliance industry standards | IEEE802.3, IEEE802.3u |
| Features | |
| Product colour | Grey, Silver |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Power | |
| Power over Ethernet (PoE) voltage | 12 V |
| Power requirements | 100 - 240VAC |
| AC adapter input voltage | 100 - 240 V |
| Input voltage | 48 V |
| Input current | 0.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 80.8 mm |
| Depth | 54 mm |
| Height | 24 mm |
| Packaging data | |
| Package width | 198 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 430 g |
| Package type | Box |
| Packaging content | |
| Number of products included | 2 pc(s) |
