Seagate Exos E 5U84 disk array
D4865X000000DA - 5054444479958
Seagate Exos E 5U84 disk array Rack (5U) Black, Metallic
- Brand
- SEAGATE SYSTEMS
- Product code
- D4865X000000DA
- SKU
- 7D1SKJ9UZT3F3
- EAN/GTIN
- 5054444479958
- Rack (5U) Black, Metallic
- USB connectivity Hot-swap drive bays
- 2200 W
Product Info
5U, 16GB ,84 x 3.5" HDD SUPPORT, DUAL PSU SUPPORT, RAILKIT, POWER CORD
Seagate Exos E 5U84. Storage drive interface: NL-SAS, Serial Attached SCSI (SAS), Storage drive size: 3.5". Chassis type: Rack (5U). Supported storage drive types: HDD & SSD, Supported storage drive interfaces: SAS, Storage drive sizes supported: 3.5". Width: 483 mm, Depth: 933 mm, Height: 220 mm, Weight: 135 kg. Product colour: Black, Metallic
Exos E 5U84

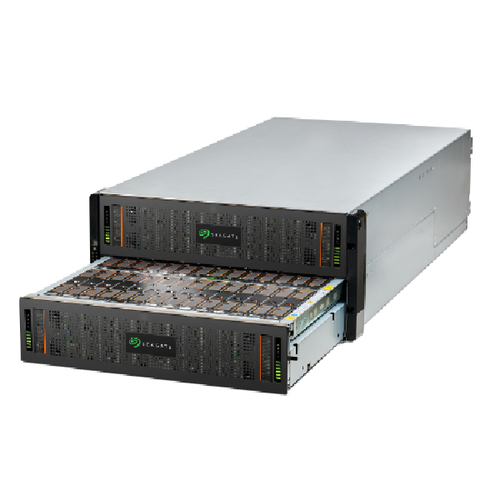

Seagate® Exos™ E 5U84 is the datasphere’s high-capacity, high performance platform that can handle extreme data growth. Build exabyte-scale data centers with this 5U, high density rackmount enclosure and easily manage in the field with features such as the unique drawer design allowing easy access to drives.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Maximum supported storage capacity | 1008 TB |
| Storage drive interface | NL-SAS, Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS |
| Storage drive sizes supported | 3.5" |
| RAID levels | 0, 1, 3, 5, 6, 10, 50 |
| Data transfer rate | 7 Gbit/s |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | Yes |
| SFP+ module slots quantity | 8 |
| Remote management port | RJ-45 (Gigabit) |
| RJ-45 ports quantity | 2 |
| Design | |
| Chassis type | Rack (5U) |
| Product colour | Black, Metallic |
| LED indicators | Yes |
| Cooling | Yes |
| Hot-swap fan module | Yes |
| Power | |
| Power supply unit (PSU) capacity | 2200 W |
| Number of power supply units | 2 |
| AC input voltage | 180 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 933 mm |
| Height | 220 mm |
| Weight | 135 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
