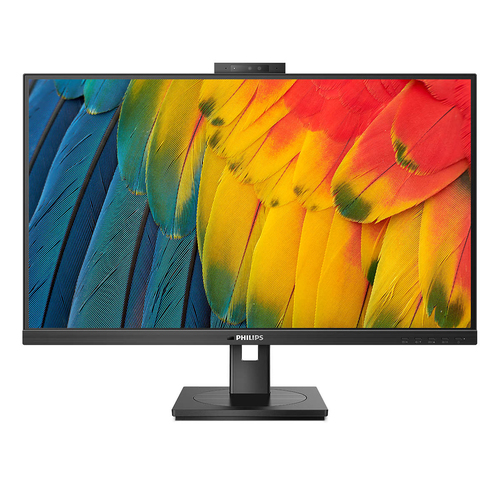

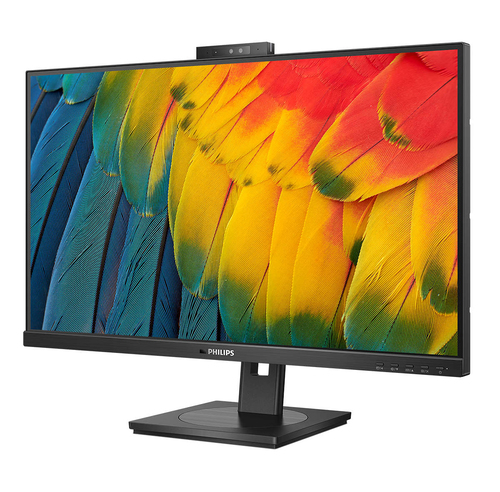

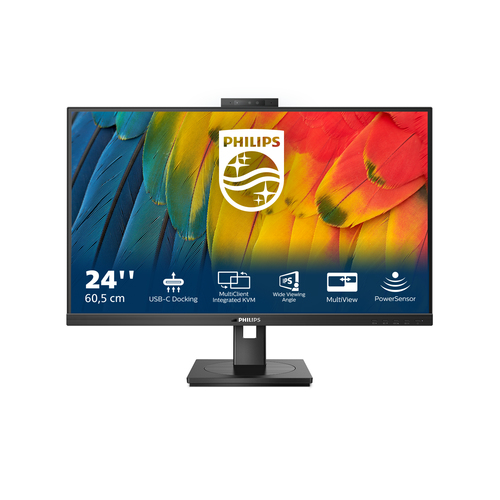

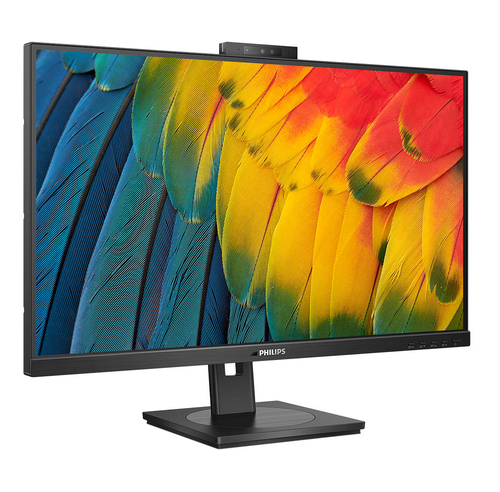

Philips 5000 series 24B1U5301H/00 LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
- Brand
- Philips
- Product Family
- 5000 series
- Product code
- 24B1U5301H/00
- SKU
- HZ99PSO09QKOS
- EAN/GTIN
- 8712581796488
- Business 60.5 cm (23.8") LCD IPS
- Full HD 1920 x 1080 pixels 16:9
- 75 Hz 4 ms 300 cd/m² 1000:1
- Flicker-free technology
- E 18 kWh 15.3 W
Philips 5000 series 24B1U5301H/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black
This USB-C monitor is for data transfer, power delivery and watching videos. The integrated 5 MP webcam delivers sharp images, and the noise cancelling mic lets people hear you fine. Windows Hello Webcam for quick access and strong security.
Description

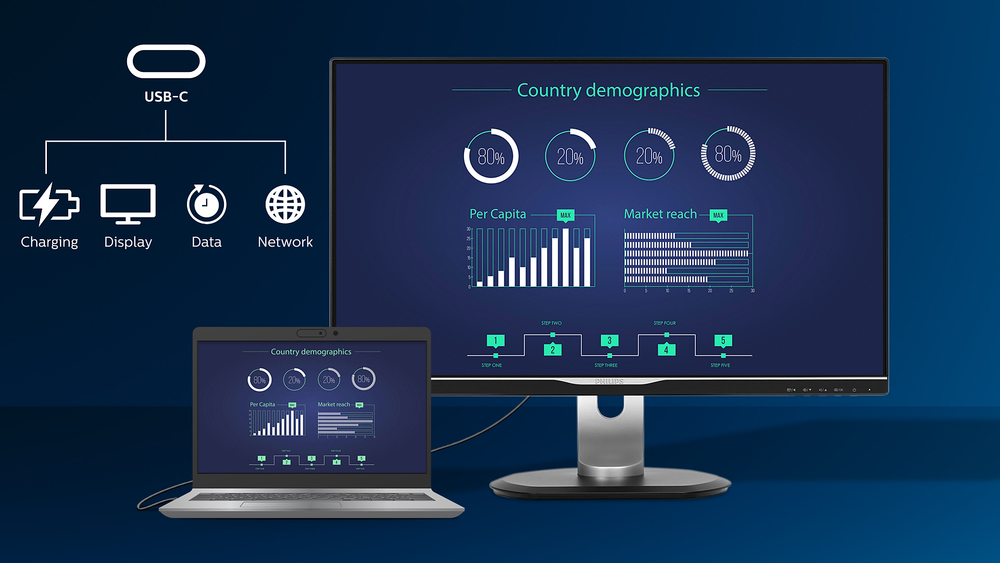

RJ-45 to USB-C gives easy network connection with security
Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.

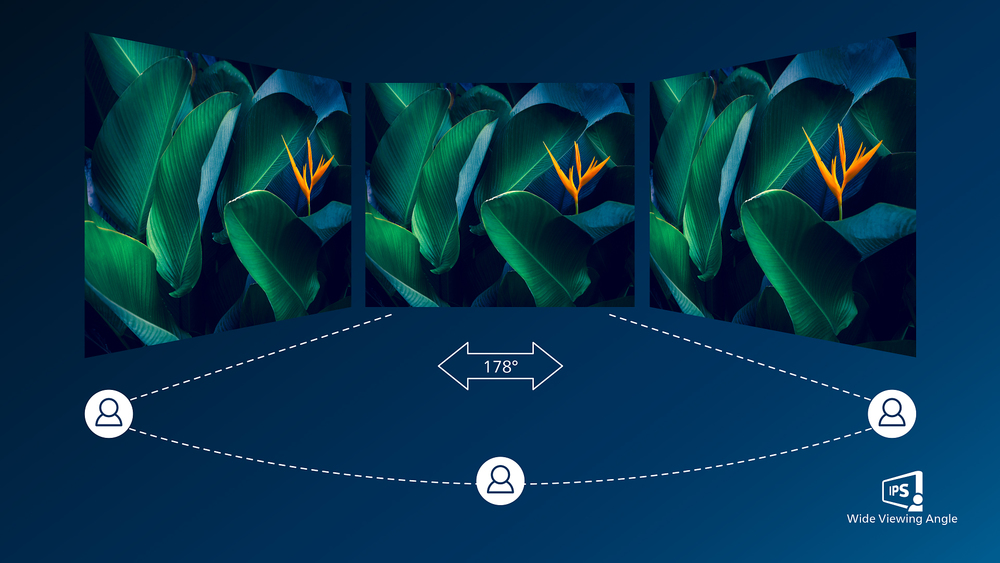

IPS technology for full colours and wide viewing angles
IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

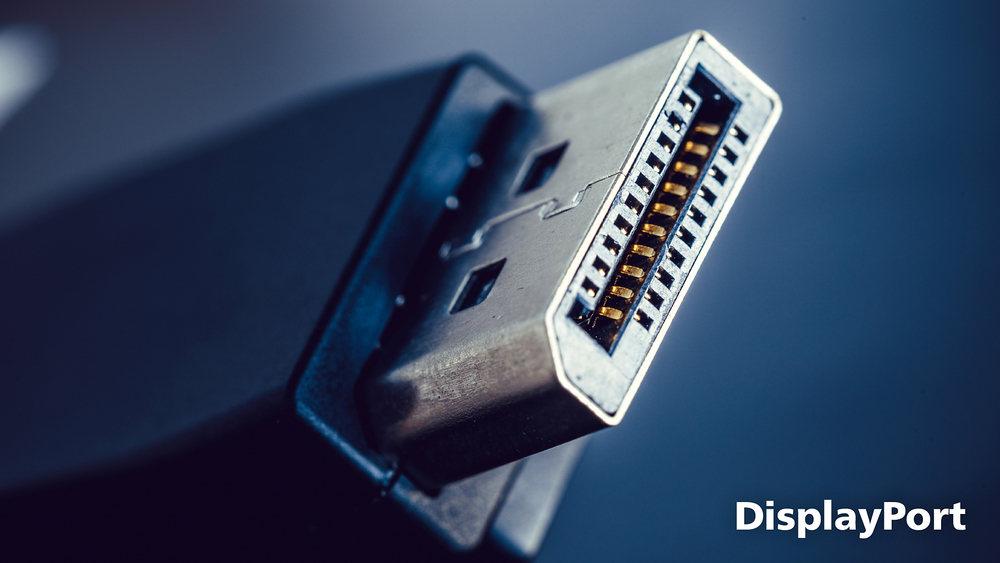

DisplayPort-out for connecting additional displays
With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.

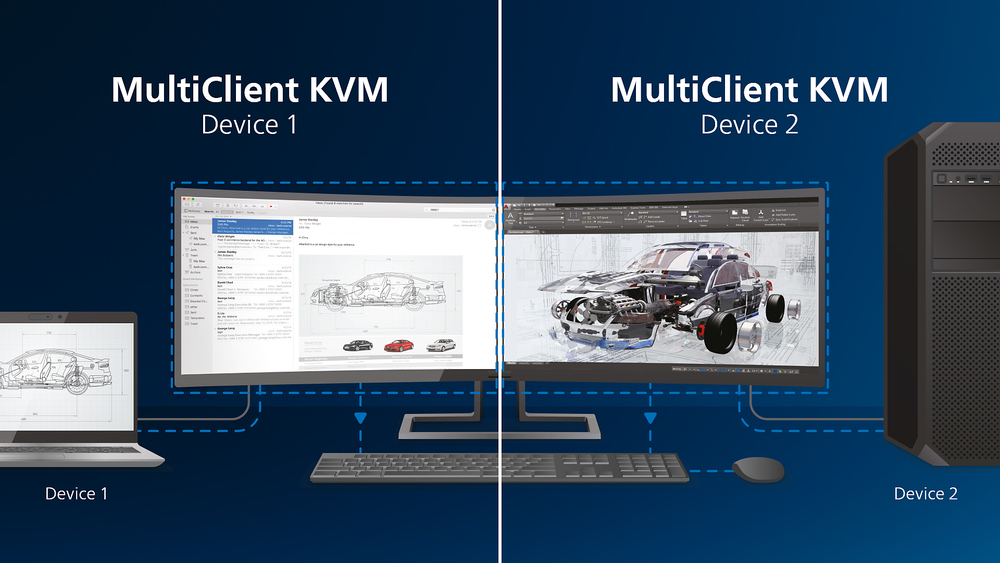

Built-in KVM switch to easily switch between sources
With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.

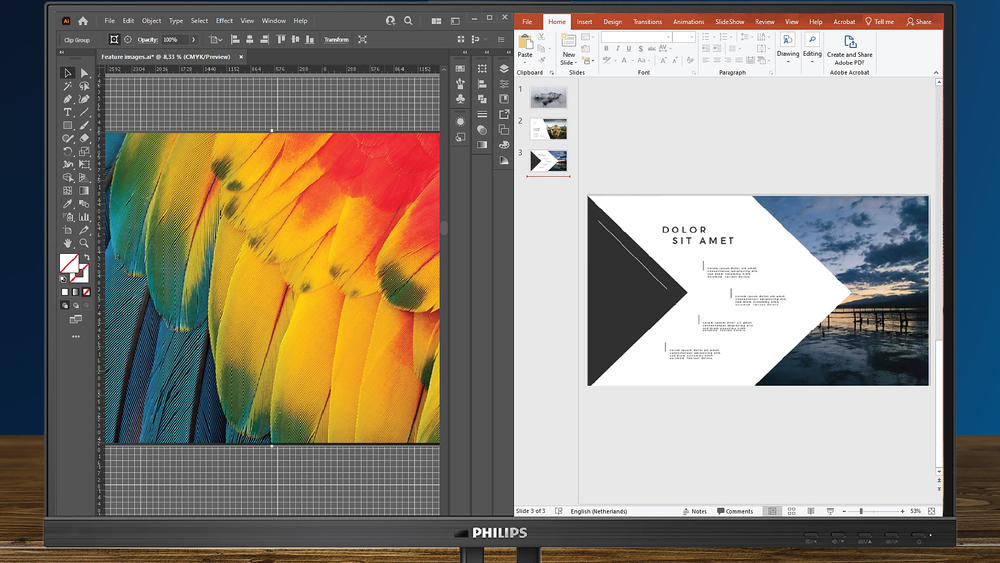

MultiView enables simultaneous dual connection and view
With the ultra-high resolution Philips MultiView display, you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multitasking.

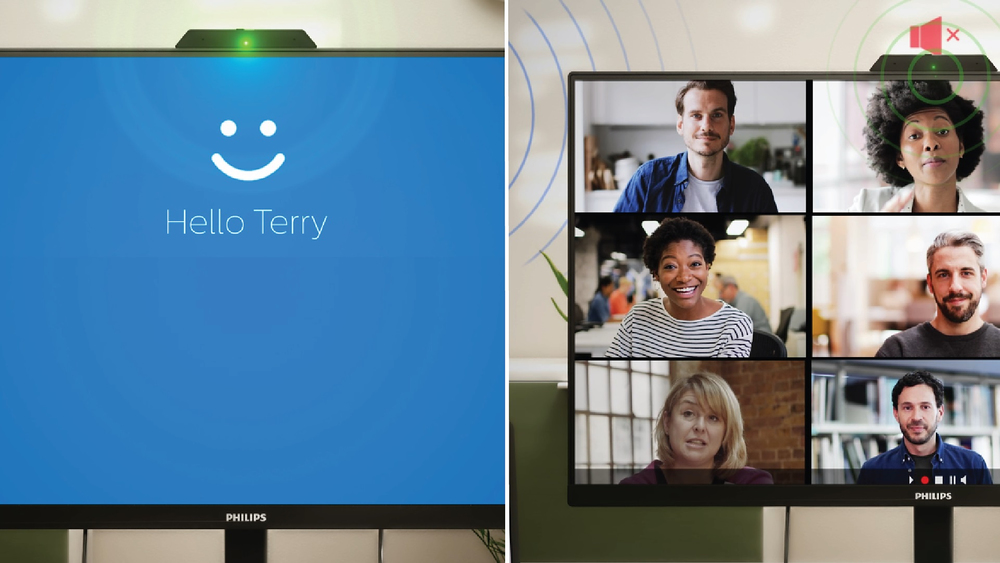

Webcam with noise-cancelling microphone for collaboration
This Philips monitor comes with a built-in 5 MP webcam, a noise-cancelling microphone, and speakers, making it perfect for working from home and collaborating remotely. The webcam is certified for Windows Hello and is equipped with advanced sensors for Windows Hello™ facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds. The physical camera switch offers extra privacy when not in use. The noise-cancelling microphone and dual 5 watt integrated speakers deliver clear communications.

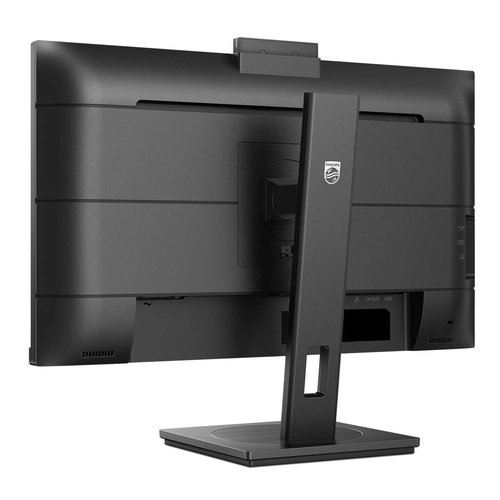

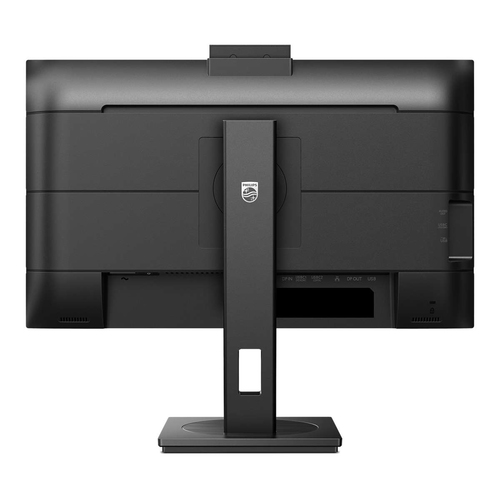

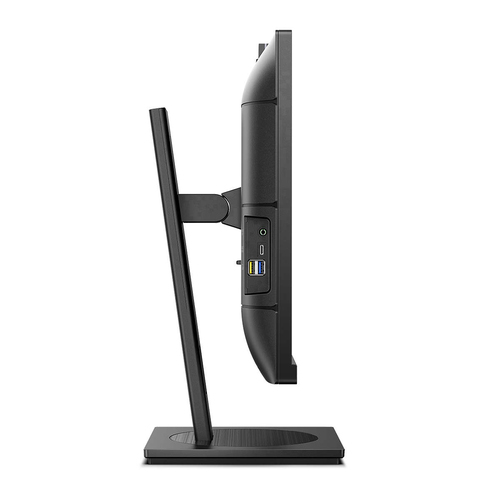

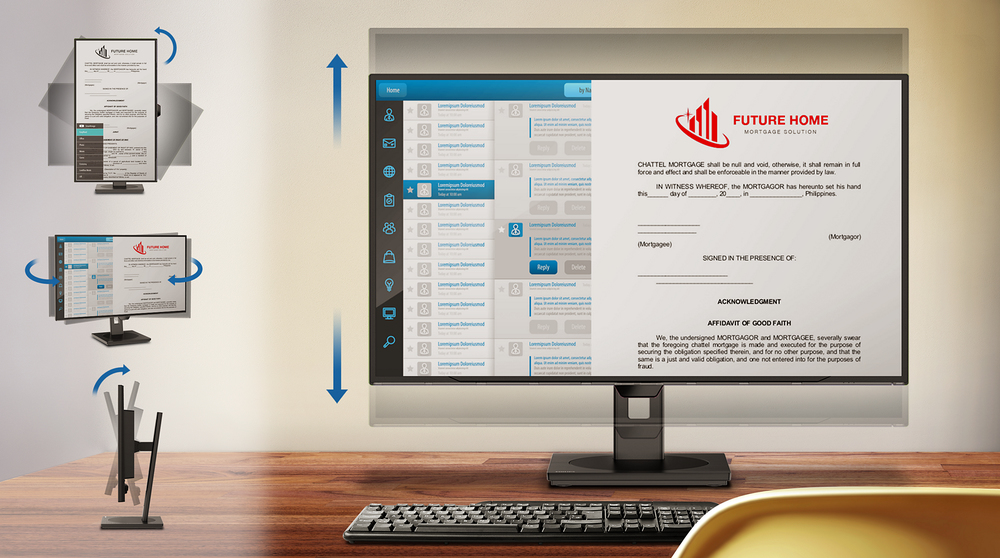

SmartErgoBase enables user-friendly ergonomic adjustments
The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height-adjustable stand guarantees the optimal viewing level, reducing the physical strains of a long workday, while cable management reduces cable clutter and keeps the workspace neat and professional.
TUV Eye Comfort certified to reduce eye fatigue
Philips displays meet TUV Rheinland Eye Comfort standard to prevent eye strain caused by prolonged computer use. With TUV Eye Comfort certification, Philips displays ensure flicker-free, low-blue mode, no disturbing reflections, a wide viewing angle, less reduction of image quality from different angles and ergonomic stand designs for an ideal viewing experience. Keep your eyes healthy and boost work productivity.

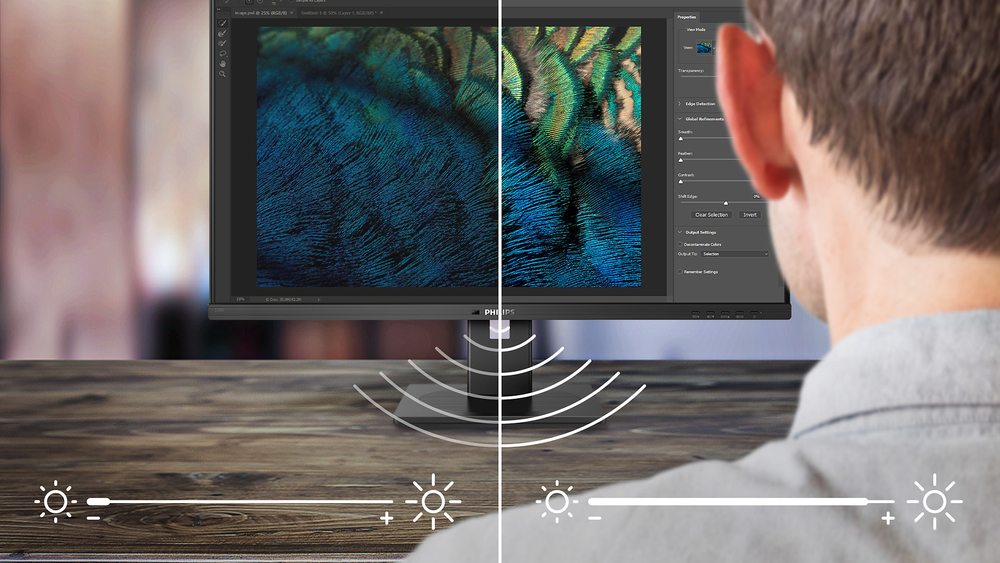

PowerSensor saves up to 75% energy costs
PowerSensor is a built-in "people sensor" that transmits and receives harmless infra-red signals to determine if the user is present and automatically reduces monitor brightness when the user steps away from the desk, cutting energy costs by up to 75 percent and prolonging monitor life.

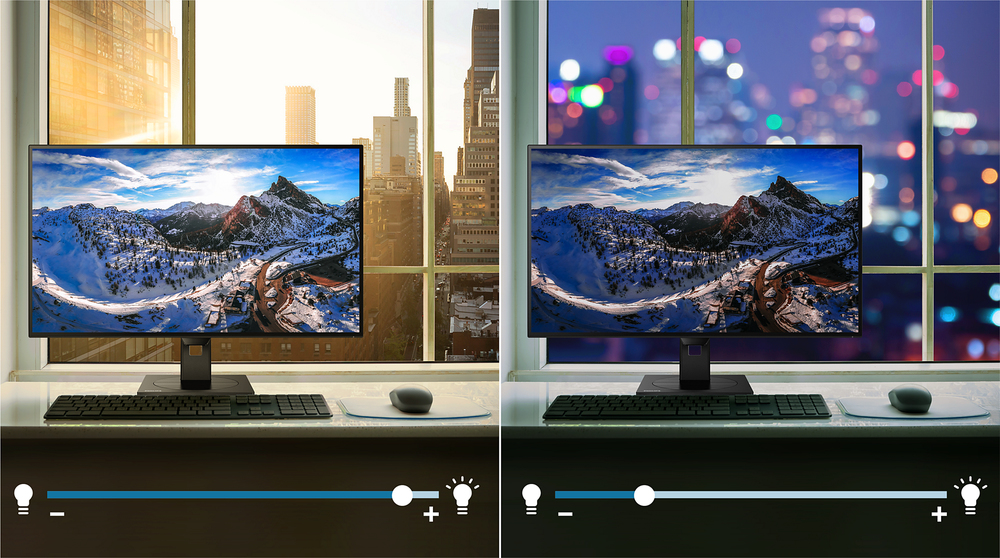

LightSensor for the perfect brightness with minimal power
LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.
| Display | |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 4 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| DDC/CI | Yes |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| RGB colour space | sRGB |
| sRGB coverage (typical) | 105% |
| NTSC coverage (typical) | 88% |
| Display sRGB | Yes |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Fast charging | Yes |
| Fast charging technology | Power Delivery |
| Component video sync | Separate sync |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| HBR3 support | Yes |
| Compatible operating systems | Mac OS X Windows 11 / 10 / 8.1 / 8 / 7 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | Yes |
| Number of speakers | 2 |
| RMS rated power | 5 W |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 90 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort output | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Height adjustment | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
| Tilt adjustment | Yes |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 15.3 W |
| Power consumption (standby) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Packaging content | |
| Stand included | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Manual | Yes |
| Bundled software | SmartControl |
| Weight & dimensions | |
| Width (with stand) | 540 mm |
| Depth (with stand) | 205 mm |
| Height (with stand) | 500 mm |
| Weight (with stand) | 5.5 kg |
| Width (without stand) | 540 mm |
| Depth (without stand) | 51 mm |
| Height (without stand) | 323 mm |
| Weight (without stand) | 3.9 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 198 mm |
| Package height | 406 mm |
| Package weight | 8.32 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, TCO, RoHS |
| Doesn't contain | Mercury, PVC/BFR |
| Recycling data | |
| Post-consumer recycled plastic | 85% |
| Other features | |
| Picture-by-Picture (PbP) | Yes |
| Exterior finish type | Textured |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus |
| Light sensor | Yes |
| EasyRead mode | Yes |
| LowBlue mode | Yes |
| Mean time between failures (MTBF) | 70000 h |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN | Yes |
