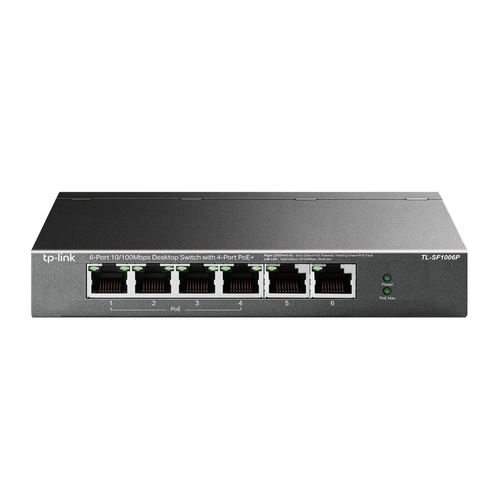

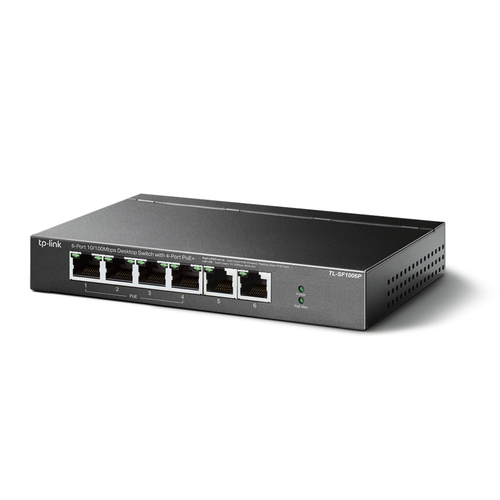

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
- Brand
- TP-Link
- Product code
- TL-SF1006P
- SKU
- ZCZ2M9UIBDWFV
- EAN/GTIN
- 6935364030940
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Plug and play with no configuration required
Product Info
Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 1.2 Gbit/s |
| Forwarding rate | 0.8928 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 74 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 67 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 252.34 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Packaging data | |
| User guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 870 g |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
