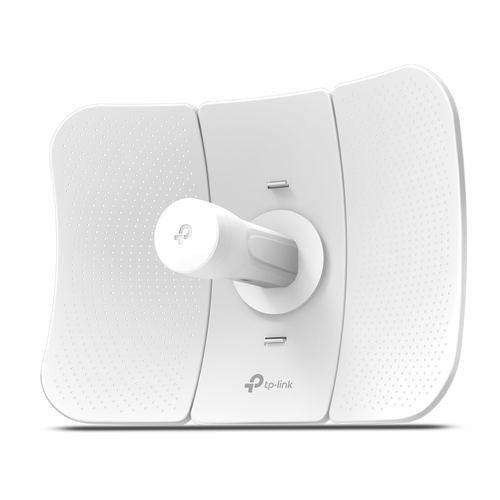

TP-Link 5GHz 150Mbps 23dBi Outdoor CPE
- Brand
- TP-Link
- Product code
- CPE605
- SKU
- 61L55X9414R0E
- EAN/GTIN
- 6935364089870
- Up to 150Mbps on 5GHz wireless data rates
- 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

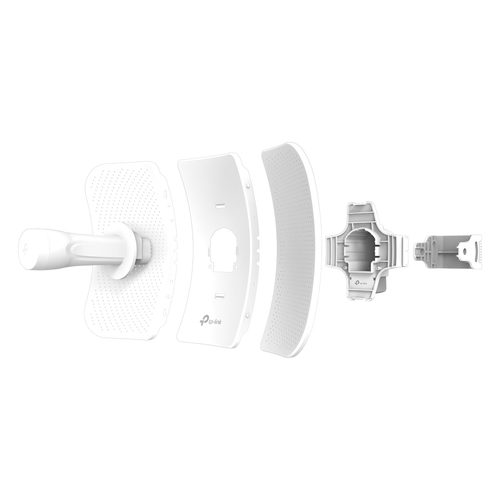

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Product Info
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission
Professional-standard 23dBi Directional
Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics and retail.
Pharos Control – Centralized Management System
CPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
| Performance | |
|---|---|
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Cabling technology | 10/100Base-T(X) |
| Gain | 23 dBi |
| Horizontal beam width | 7° |
| Vertical beam width | 10° |
| Built-in processor | Yes |
| Processor model | Atheros MIPS 74Kc |
| Processor frequency | 560 MHz |
| Internal memory | 64 MB |
| Internal memory type | DDR2 |
| Flash memory | 8 MB |
| Antenna gain level (max) | 23 dBi |
| Features | |
| Antenna type | Directional antenna |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP65 |
| Waterproof | Yes |
| Mounting | Pole |
| Housing material | Plastic |
| Product colour | White |
| Certification | CE, FCC |
| Power | |
| Power source type | PoE |
| Input voltage | 16 - 27 V |
| Technical details | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 233.4 mm |
| Depth | 170 mm |
| Height | 156 mm |
| Package width | 328 mm |
| Package depth | 155 mm |
| Package height | 135 mm |
| Package weight | 1.42 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Cables included | AC |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
