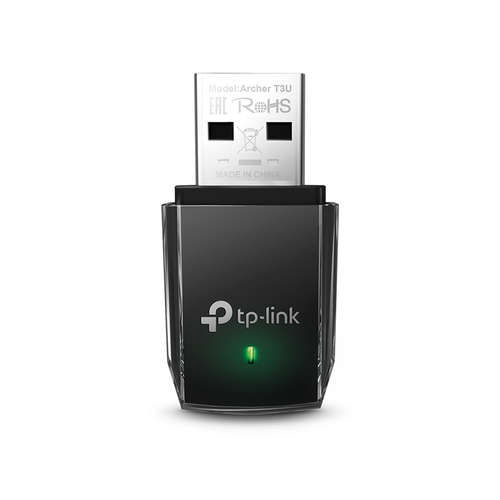

TP-Link AC1300 Mini Wireless MU-MIMO USB WiFi Adapter
- Brand
- TP-Link
- Product code
- ARCHER T3U
- SKU
- 2XK2VRJEBTO9N
- Ultimate Wi-Fi Speed – AC1300 (400 Mpbs on 2.4GHz band and 867 Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac
- Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity
- Mini design –Mini-sized design for convenient portability with a reliable high performance
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- MU-MIMO - Delivers highly efficient wireless connection
- Supported Operating System – Supports Windows 10/8.1/8/7/XP, Mac OS X
Product Info
High-Speed Dual Band Adapter for Better Connections
Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
Miniature Design - Makes It Easy to Take
Archer T3U has a smart design that is tinier than a usual USB adapter. Not only could it be inserted into any USB port, but is quite easy to carry, which is convenient for most usage scenarios.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.
Boosted Throughput with MU-MIMO
With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Maximum data transfer rate | 1267 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 11,54,300,400,867 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
| Design | |
| Component for | PC/Laptop |
| Product colour | Black |
| Internal | No |
| Antenna | Yes |
| Antenna design | Internal |
| LED indicators | Status |
| Receiver sensitivity | 5GHz： 11a 6Mbps: -91dBm 11a 54Mbps: -76dBm 11n HT20：-71dBm 11n HT40：-70dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -62dBm 2.4GHz: 11b 11Mbps: -86dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -70dBm |
| Certification | CE, FCC |
| Power | |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 40.5 mm |
| Depth | 19.7 mm |
| Height | 10.3 mm |
| Packaging data | |
| Quantity | 1 |
| Package type | Box |
| Package width | 138 mm |
| Package depth | 128 mm |
| Package height | 30 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Other features | |
| Transmit power range | 23 - 23 dBmW |
