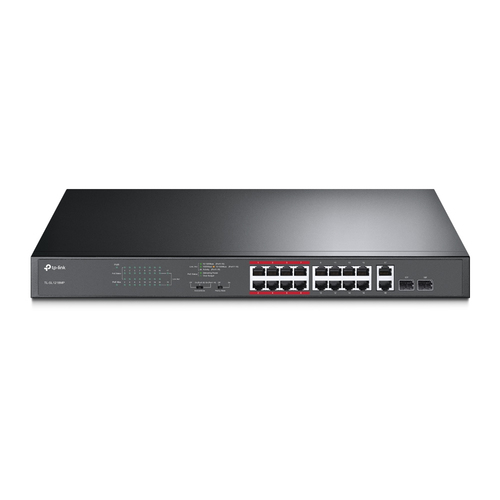

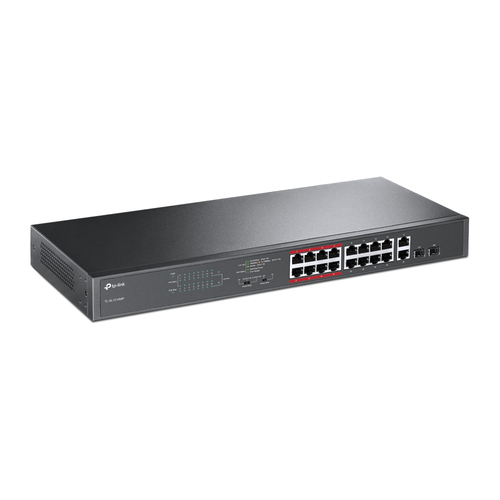

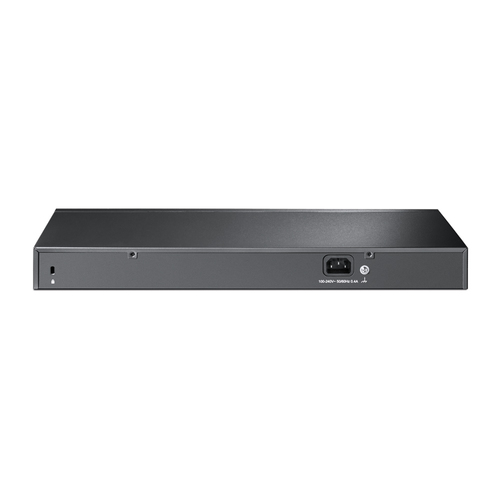

TP-Link TL-SL1218MP

TL-SL1218MP - 6935364099817

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Brand: TP-Link
Product code: TL-SL1218MP
SKU: WALY9VCWM3ZZJ
EAN/GTIN: 6935364099817

16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
Up to 250m data and power transmission under extend mode specially designed for surveillance system
Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
Easy to use, with no configuration and installation needed

€166.37 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

16x PoE+, 2x 1000Mbps, 2x Combo Gigabit SFP, 2x Fans, Bandwidth 7.2 Gbps, 802.3at/802.3af, 192W

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
Switching capacity	7.2 Gbit/s
Forwarding rate	5.36 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
Design
Rack mounting	Yes
Stackable	No
Form factor	1U
Product colour	Black
LED indicators	LAN, PoE, Status
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	217.22 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	192 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	741.15 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging data
Cables included	LAN (RJ-45)
Manual	Yes
Package type	Box
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	2.96 kg
Logistics data
Harmonized System (HS) code	85176990
