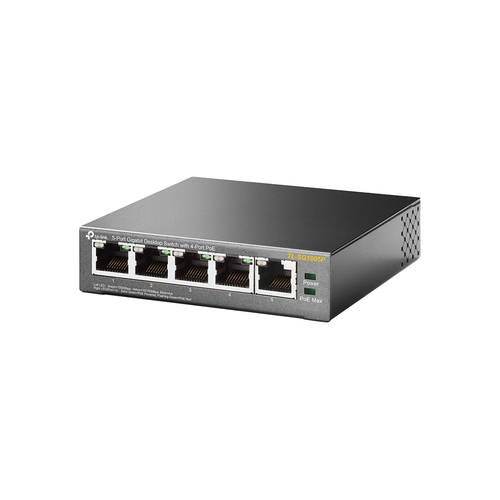

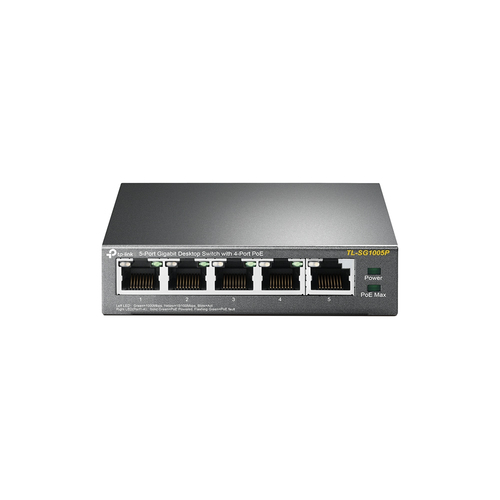

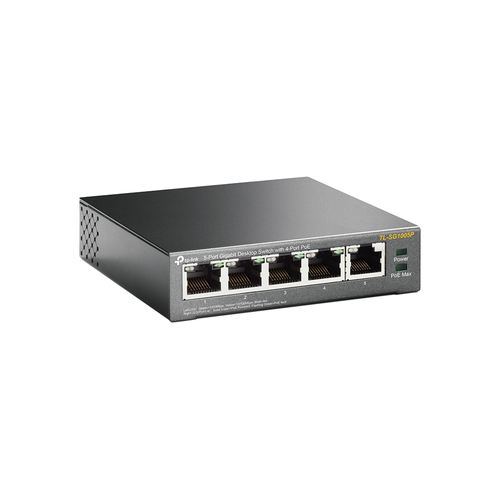

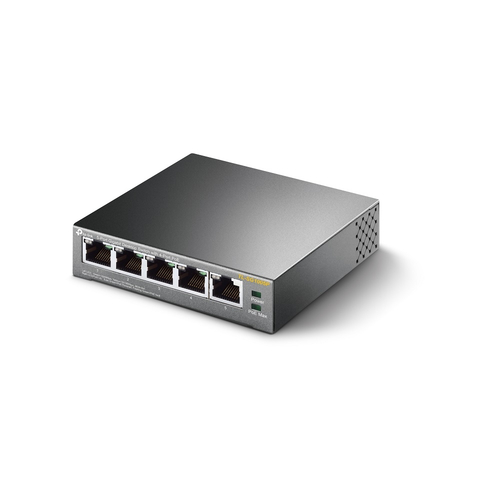

TP-Link TL-SG1005P
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
- Brand
- TP-Link
- Product code
- TL-SG1005P
- SKU
- UG03G1NNTX4IW
- EAN/GTIN
- 6935364083229
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
€52.57
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
PoE Switches for Your Ultra Convenience
TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)
PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Maximum cable length | 100 m |
| Fanless | Yes |
| Power | |
| Power source | DC/PoE |
| Power supply included | Yes |
| DC input voltage | 48 V |
| Input current | 1.25 A |
| Power consumption (max) | 64.44 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 219.87 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging data | |
| User guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 131 mm |
| Package depth | 196 mm |
| Package height | 121 mm |
| Package weight | 800 g |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
