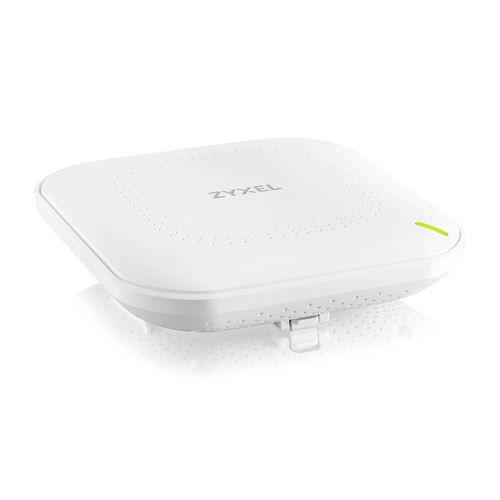

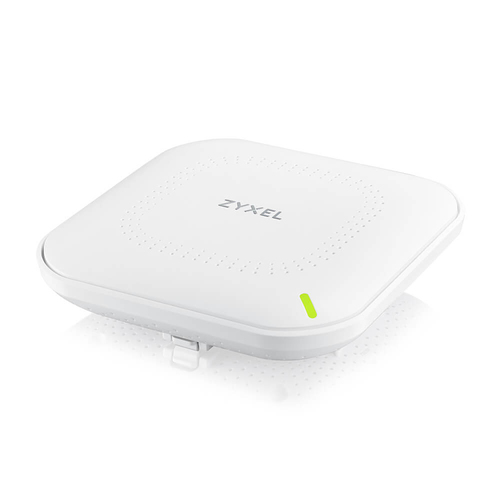

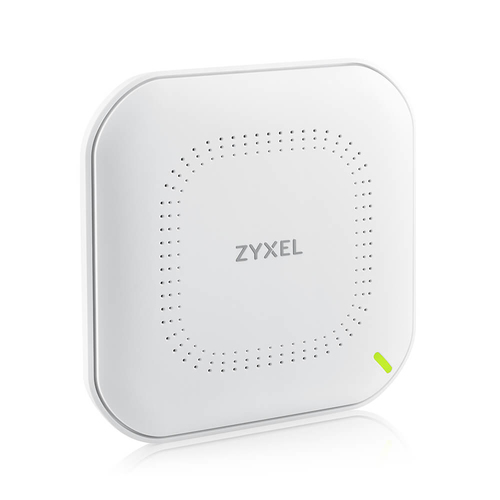

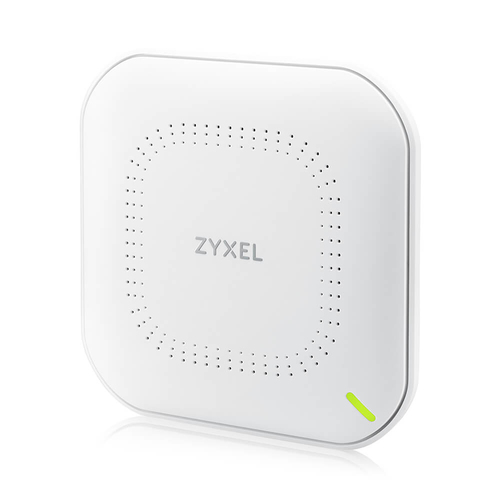

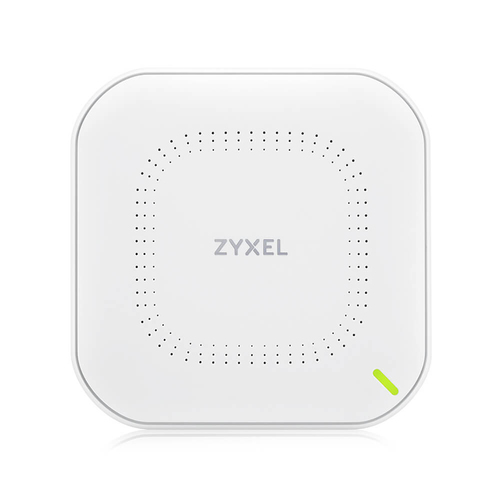

Zyxel NWA90AX PRO

Zyxel NWA90AX PRO 2400 Mbit/s White Power over Ethernet (PoE)


Brand
Zyxel
Product code
NWA90AXPRO-EU0102F
SKU
LC8XA79K937MP
EAN/GTIN
4718937630592
  • 2.4 GHz 575 Mbit/s
  • 5 GHz 2400 Mbit/s
  • Maximum data transfer rate: 2400 Mbit/s
  • IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
  • 802.1x RADIUS, EAP, WEP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3
  • Power over Ethernet (PoE)
  • Internal Integrated antenna
€127.96 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Multi-gig WiFi 6 access point for small businesses
Zyxel NWA90AX Pro
AX3000 Dual-Radio Multi-gig PoE Access Point with secure authentication support

Multi-gig WiFi 6 access point for small businesses
Delivering AX3000 WiFi speed with 2.5G Ethernet uplink port, the Zyxel NWA90AX Pro provides the powerful and fastest WiFi 6 speed for small businesses, SoHo, and home offices.

Small business owners looking for an affordable WiFi 6 access point with multi-gig connectivity, Zyxel’s NWA90AX Pro is no doubt the ideal choice for them to support more connected devices and applications with the fastest speeds.

Boost your WiFi performance
To better leverage the faster speeds in 5Ghz band, Zyxel NWA90AX Pro equips with 3x high-gain antennas to boost WiFi signals and extend coverage, especially to previously hard-to-reach areas.

In addition to the WiFi boost, NWA90AX Pro also comes with the premium multi-gig Ethernet connections. As it can run on the common-type Cat5e cabling, a 2.5G uplink port breaks through the 1.0G bottleneck without re-cabling, making it easy to create an affordable high-speed network environment for your business or home.

Secure authentication to protect business networks
With the support of captive portal and IEEE802.1x authentication, the NWA90AX Pro not only offers small business users the enterprise-level security to protect their networks, but also the flexible opportunity to customize wireless network usage login for marketing and business recognition.

Set up your wireless network in minutes!
No networking expertise required - The NWA90AX Pro is designed to be easily configured and installed in places like small hotels, retail stores, restaurants, or home offices.

The simple configuration allows you to set up the network for your customers and employees in minutes. The AP can be managed either with Nebula Cloud networking platform or the device’s local interface.

Easy deployment with Zyxel’s Smart Mesh

Zyxel’s Smart Mesh technology automatically forms dynamic wireless links between access points and mitigates the complex, inconvenient cabling for WiFi deployment.

The Smart Mesh technology can save you from extra wiring by enabling the wireless connectivity between APs for extended range and flexible deployment.

Manage it your way!
The NWA90AX Pro with NebulaFlex offers the flexible manageability for you to freely choose between the device’s local web interface or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password when managing it on cloud.

Features
2.4 GHz Yes
5 GHz Yes
6 GHz No
Maximum data transfer rate 2400 Mbit/s
Maximum data transfer rate (2.4 GHz) 575 Mbit/s
Maximum data transfer rate (5 GHz) 2400 Mbit/s
Ethernet LAN data rates 1000,2500 Mbit/s
Networking standards IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
MIMO Yes
MIMO type Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME) Yes
VLAN support Yes
Security
Security algorithms 802.1x RADIUS, EAP, WEP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3
MAC address filtering Yes
Protocols
Management protocols SNMP
Management features
Web-based management Yes
Firmware upgradeable Yes
Ports & interfaces

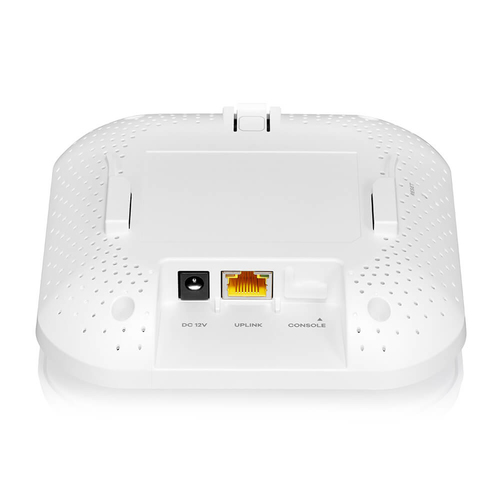

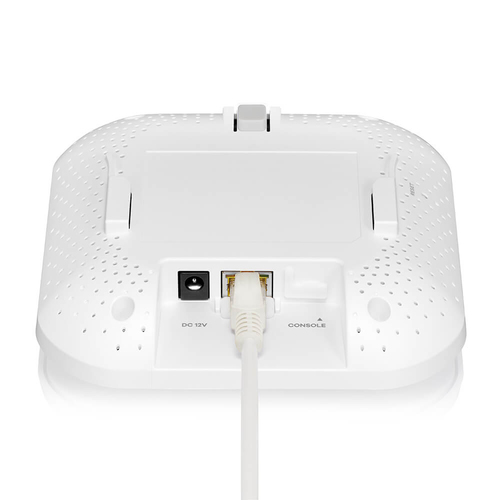

Ethernet LAN (RJ-45) ports 1
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 0.3 A
Output voltage 12 V
Output current 2 A
Design
Placement Ceiling
Product colour White
LED indicators Yes
Antenna
Antenna type Internal
Antenna features Integrated antenna
Antenna gain level (max) 4 dBi
Weight & dimensions
Width 140 mm
Depth 140 mm
Height 37.5 mm
Weight 352 g
Packaging data
Package width 240 mm
Package depth 155 mm
Package height 60 mm
Package weight 668 g
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 10 - 90%
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
