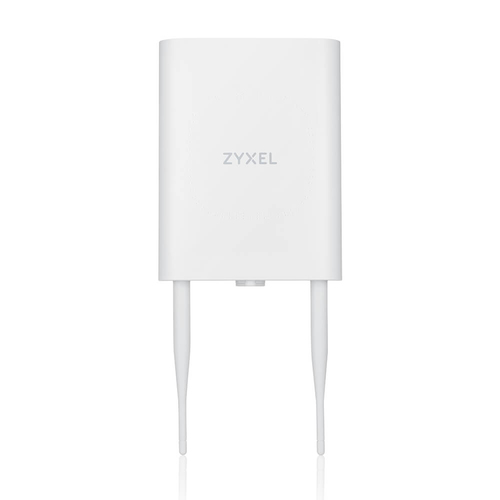

Zyxel NWA55AXE 1775 Mbit/s White Power over Ethernet (PoE)
- Brand
- Zyxel
- Product code
- NWA55AXE-GB0102F
- SKU
- YEQFEAQB3QY7I
- EAN/GTIN
- 4718937624218
- 2.4 GHz 575 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1775 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSK
- Power over Ethernet (PoE)
- Antennas quantity: 2 External
Product Info

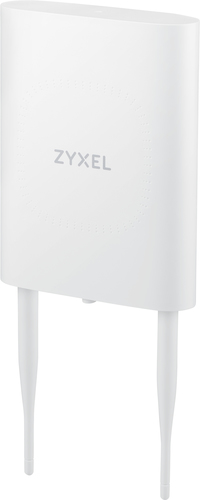

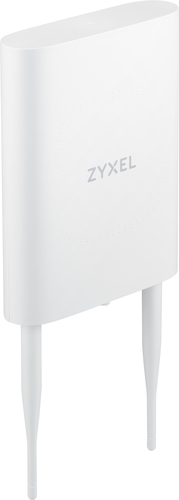

Durable, Weatherproof Outdoor WiFi 6 AP
Thinking of upgrading to the 11ax (WiFi 6) technology for your outdoor wireless network? Zyxel NWA55AXE is your answer!

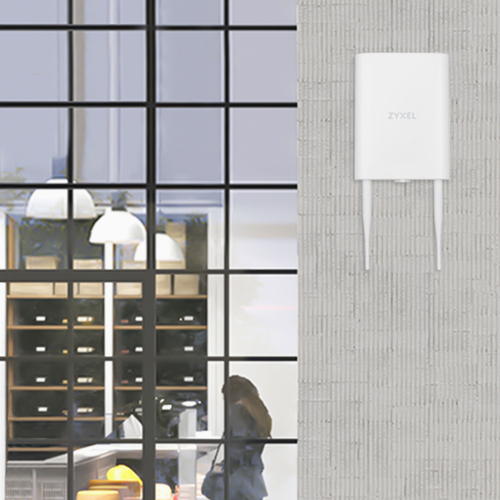

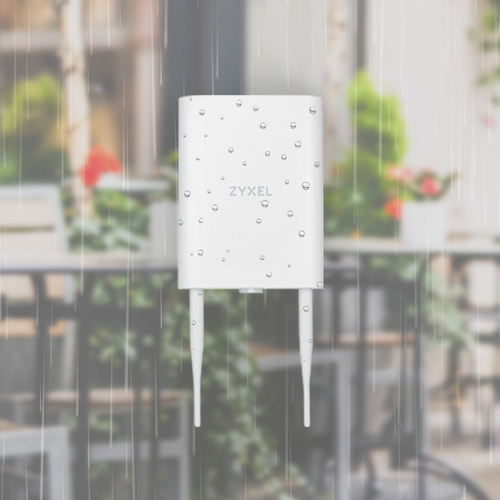

Designed for harsh outdoor environments, the IP55-rated, weatherproof NWA55AXE is the best WiFi 6 outdoor access point to extend your wireless network outside.
Smart Mesh for Extended Coverage

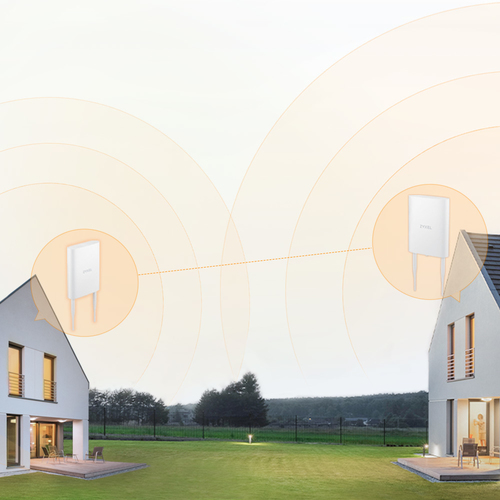

Zyxel Smart Mesh Technology not only forms dynamic wireless links between APs for extended range, but can also bridge the wireless connectivity from one building to another. It is no doubt that NWA55AXE is an ideal choice for a simple expansion of your outdoor wireless network or forming an interconnected wireless network through outdoor inter-building links.
Simple Installation. Easy Configuration.

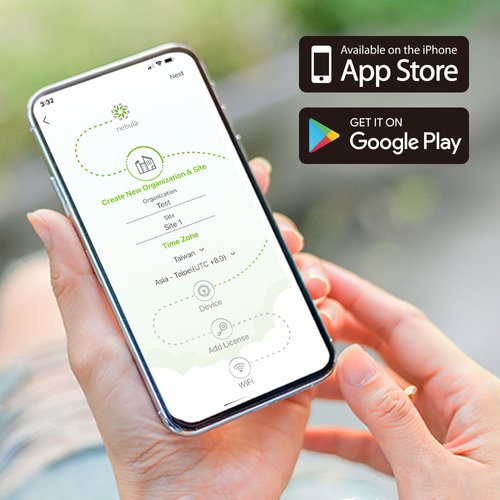

Perfect for small business owners or SOHO users, the NWA55AXE supports both local GUI management and Nebula Cloud networking management. The simple setup in Nebula APP or web allows you to quickly configure the AP with only a few clicks, making it super easy to set up guest and employee network on your own and start enjoying the ultra-fast WiFi 6 speeds in no time.
Manage it your way!

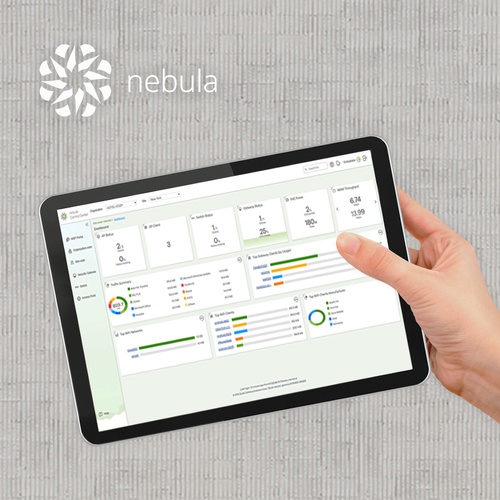

The NWA55AXE with NebulaFlex offers the flexible manageability for you to freely choose between the local GUI management or onboarding to our super easy Nebula cloud management interface that you never need to worry about forgetting the IP address or lost account and password whatsoever.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -99 dBm |
| Security | |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 16 W |
| Design | |
| Product colour | White |
| Country of origin | China |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Weight & dimensions | |
| Width | 308 mm |
| Depth | 136.4 mm |
| Height | 49.6 mm |
| Weight | 580 g |
| Packaging data | |
| Package width | 221 mm |
| Package depth | 188 mm |
| Package height | 59 mm |
| Package weight | 887 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 483 mm |
| Master (outer) case height | 332 mm |
| Master (outer) case gross weight | 13 kg |
| Products per master (outer) case | 7 pc(s) |
