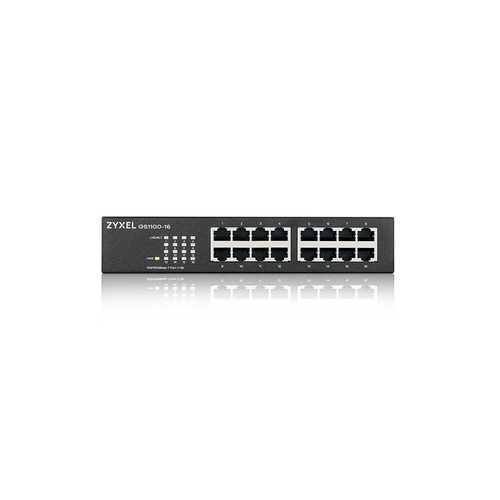

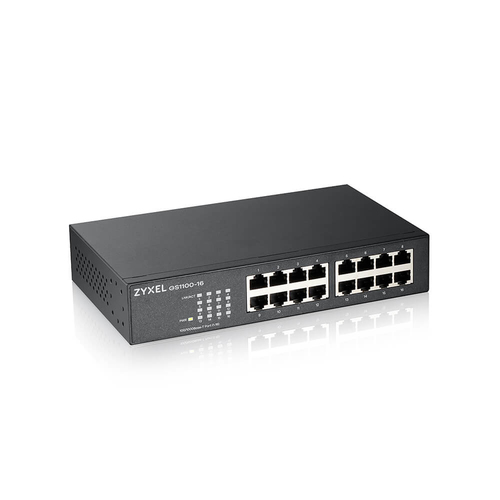

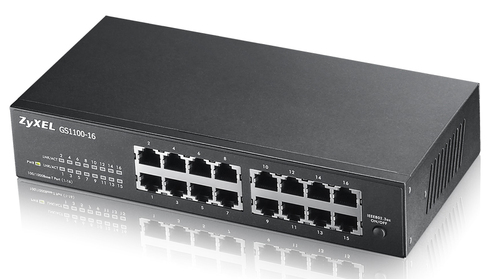

Zyxel GS1100-16
Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)
- Brand
- Zyxel
- Product code
- GS1100-16-GB0103F
- SKU
- ZBD82X4O0V2HB
- EAN/GTIN
- 4718937614073
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x Flow Control
- IEEE 802.3z 1000BASE-X
- IEEE 802.1p CoS
€70.9
(Inc. VAT)
(Delivery 2-4 working days)
Product Info

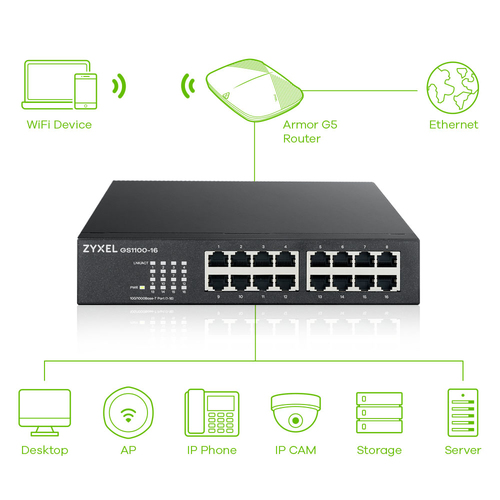

Plug and play connectivity
Zyxel GS1100-16. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Wall mountable, Rack mounting
Plug and play connectivity
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving

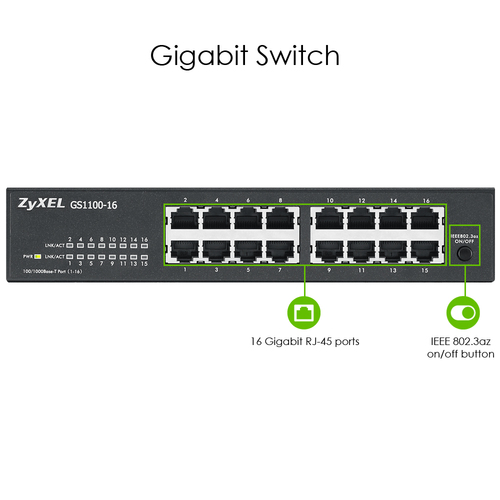

The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |

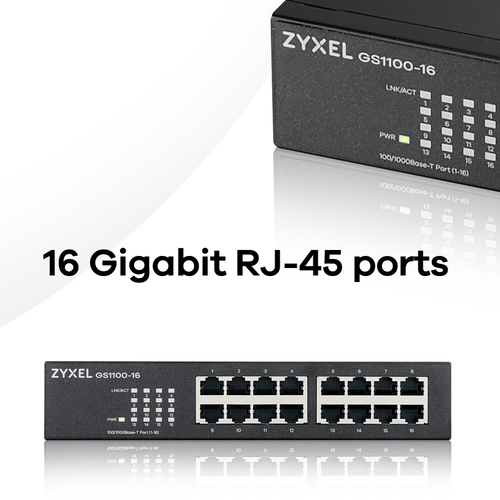

| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Active link detection | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Design | |
| Rack mounting | Yes |

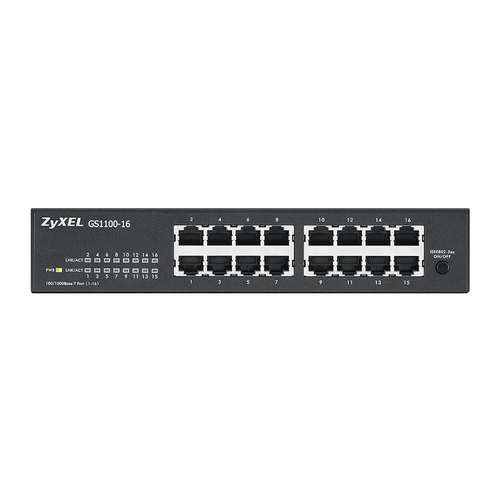

| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Certification | LVD, BSMI RoHS, REACH |
| Performance | |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1156942 h |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 1 |

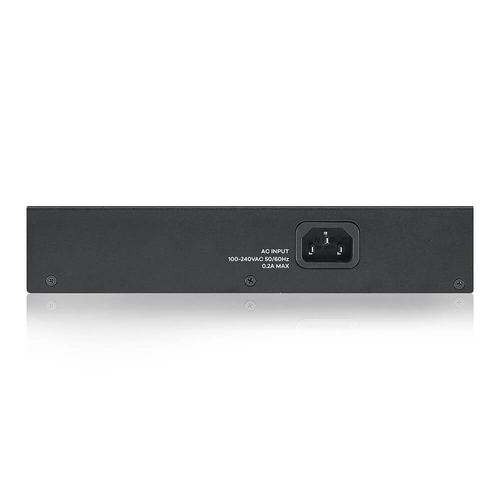

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 32.86 BTU/h |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 42 mm |
| Weight | 19.8 kg |
| Packaging data | |
| Cables included | AC |
| Package type | Box |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
