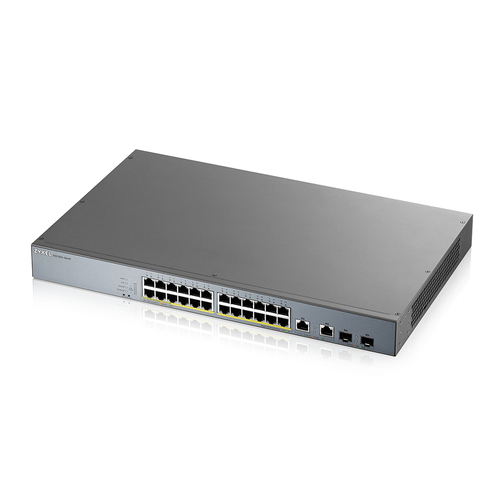

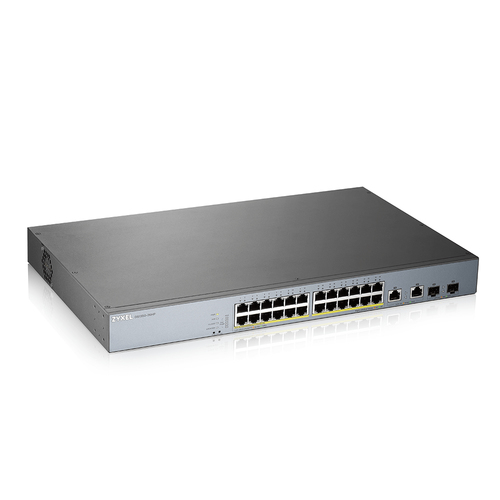

Zyxel GS1350-26HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
- Brand
- Zyxel
- Product code
- GS1350-26HP-GB0101F
- SKU
- 4AXTV15CXRIJ0
- EAN/GTIN
- 4718937604470
- Auto camera recovery
- Large power budget
- Up to 250 meters transmission
- Intuitive PoE usage LED
- Enhanced surge & ESD protection
Product Info
Just For Surveillance
Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications
New outlook
Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.
Specialized PoE software features for surveillance
Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.
Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

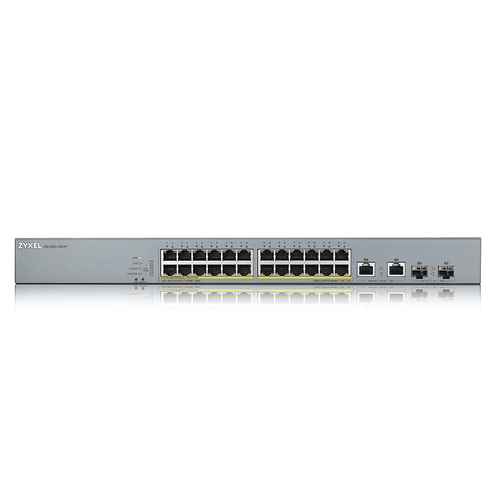

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.
Unique hardware, robust design
Stabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.
Selected power supply
2X Surge and ESD protection.
Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.
Intelligent System Monitor
Keeps the system operational from anomalies.
Patented Ethernet Protection
- 4X Surge protection.
- 2X ESD resistant.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN |
| Number of VLANs | 256 |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| MAC address table | 8000 entries |
| Packet buffer memory | 0.525 MB |
| Security | |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | SNMP, SNMPv3, SSH, SSL/TLS |
| Loop protection | Yes |
| Queue scheduling algorithms | SPQ, WFQ, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Electromagnetic compatibility | CE, FCC, C-Tick, A; BSMI CNS13438 |
| Certification | LVD EN62368-1, BSMI CNS14336-1, RoHS |
| Performance | |
| Noise level | 40.1 dB |
| Firmware upgradeable | Yes |
| Mean time between failures (MTBF) | 888495 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 448.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 375 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1530.75 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.58 kg |
| Packaging data | |
| Cables included | AC |
| Rack mount kit | Yes |
| Package width | 622 mm |
| Package depth | 355 mm |
| Package height | 110 mm |
| Package weight | 4.65 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
