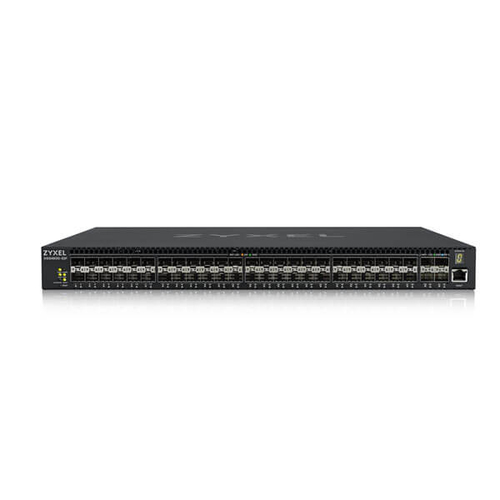

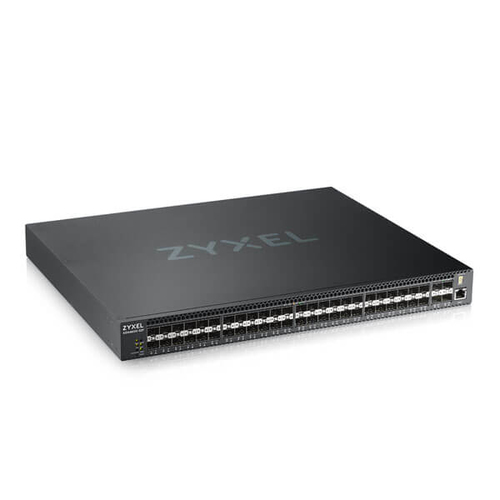

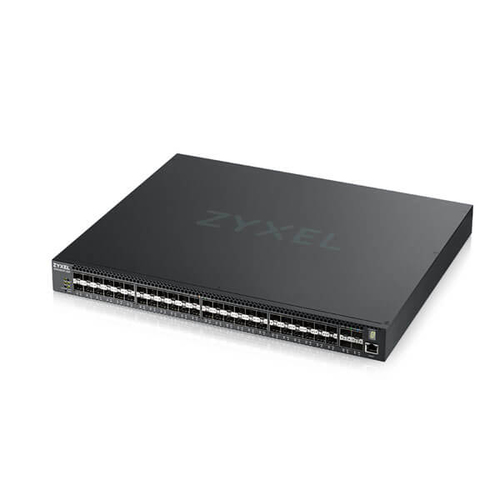

Zyxel XGS4600-52F
Zyxel XGS4600-52F Managed L3 Black
- Brand
- Zyxel
- Product code
- XGS4600-52F-ZZ0101F
- SKU
- HZLYS9R47LI6P
- EAN/GTIN
- 4718937595570
- Managed L3 Web-based management
- 10G support
- MAC address table: 32000 entries Switching capacity: 176 Gbit/s
- Access Control List (ACL)
- Rack mounting
€3232.17
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
Stylish Outlook
Zyxel XGS4600-52F. Switch type: Managed, Switch layer: L3. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting
Stylish Outlook
New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.
Choose a right L3 switch for your network
High Availability
The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.
Stacking Capability
The XGS4600-32/32F allows creating a physical stack through one or two 10-Gigabit SFP+ slots. XGS4600 series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.
High Resiliency

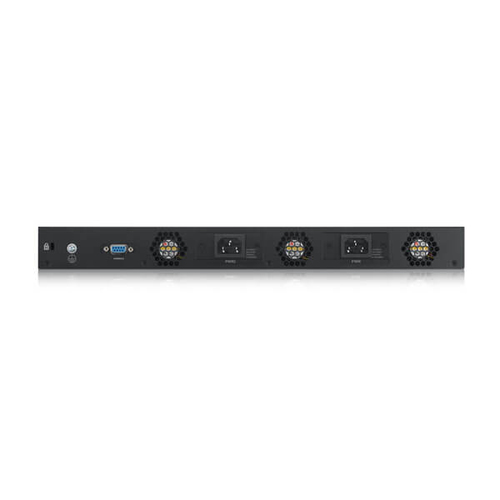

The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 48 |
| SFP+ module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| IP routing | Yes |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| MAC address table | 32000 entries |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| Security algorithms | SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Internal memory | 1024 MB |
| Flash memory | 64 MB |
| Noise level | 42.6 dB |
| Mean time between failures (MTBF) | 815860 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 70.16 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 252.68 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 360 mm |
| Height | 44 mm |
| Weight | 4.97 kg |
| Packaging data | |
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Package weight | 6.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
