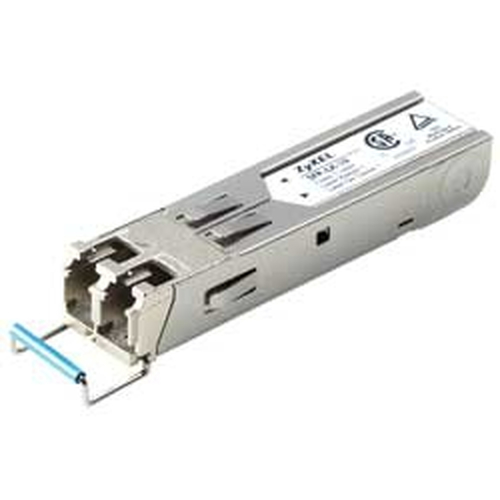

Zyxel SFP-LX-10-D network transceiver module
91-010-203001B - 4718937510337
Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm
- Brand
- Zyxel
- Product code
- 91-010-203001B
- SKU
- MBXJVMRAXC8KD
- EAN/GTIN
- 4718937510337
- 1000 Mbit/s
- Wavelength: 1310 nm
- Hot-swap
Product Info
SFP-LX-10-D 1000Base-LX SFP Transceiver
Zyxel SFP-LX-10-D. Maximum data transfer rate: 1000 Mbit/s, Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Certification: Class 1 Laser 21 CFR 1040.10 & 1040.11 CSA TUV. Width: 56 mm, Depth: 13.4 mm, Height: 12.5 mm. Dimensions (WxDxH): 56 x 13.4 x 12.46 mm
Gigabit Speed and Flexibility
ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.
Small Size and High Port Density
ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links – all at an affordable price.
Industry Standards-based Compliance
ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.
| Performance | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Features | |
| Hot-swap | Yes |
| Certification | Class 1 Laser 21 CFR 1040.10 & 1040.11 CSA TUV |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 13.4 mm |
| Height | 12.5 mm |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Other features | |
| Dimensions (WxDxH) | 56 x 13.4 x 12.46 mm |
