D-Link DGS-712 Transceiver network transceiver module

DGS-712 - 790069356117

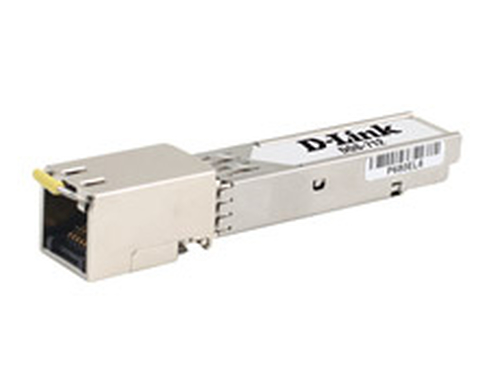

D-Link SFP 10/100/1000 BASE-T Copper Transceiver

Brand: D-Link
Product code: DGS-712
SKU: 4C7A4HOYMAWSS
EAN/GTIN: 790069356117

€68.12 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

1000Base-T Copper SFP Transceiver

D-Link SFP 10/100/1000 BASE-T Copper Transceiver. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Metallic, Mean time between failures (MTBF): 5617000 h. Maximum voltage: 3.3 V. Safety: CSA, TUV, Certification: FCC Class A CE Class A VCCI Class A. Width: 13.7 mm, Depth: 70.2 mm, Height: 13.4 mm

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement. It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab. The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper.

Specifications

Performance

SFP transceiver type Copper

Maximum data transfer rate 1000 Mbit/s

Maximum transfer distance 100 m

Operational conditions

Operating temperature (T-T) 0 - 85 °C

Storage temperature (T-T) -40 - 85 °C

Weight & dimensions

Weight 20 g

Packaging data

Package width 74 mm

Package depth 131 mm

Package height 49 mm

Package weight 64 g

Logistics data

Shipping (inner) case length 36 cm

Shipping (inner) case width 26 cm

Shipping (inner) case height 31 cm

Shipping (inner) case net weight 3.2 kg

Products per shipping (inner) case 50 pc(s)

Pallet gross weight (air) 246.8 kg

Master (outer) cases per pallet (air) 54 pc(s)

Products per pallet (air) 2700 pc(s)

Pallet gross length 102 cm

Pallet gross width 122 cm

Pallet height (air) 199 cm

Pallet gross weight (sea) 246.8 kg

Master (outer) cases per pallet (sea) 54 pc(s)

Products per pallet (sea) 2700 pc(s)

Pallet height (sea) 199 cm

Shipping (inner) case gross weight 4.2 kg

Harmonized System (HS) code 85176990
