APC Smart-UPS uninterruptible power supply (UPS)

SMX2200HV - 731304292609

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth

Brand: APC HW
Product code: SMX2200HV
SKU: W7O0W3MGZC72S
EAN/GTIN: 731304292609

Line-Interactive
2.2 kVA 1980 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black, Stainless steel

€1989.12 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950,...

Smart-UPS,1980 Watts /2200 VA,Input 230V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 U

Includes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual

Specifications

Features

UPS topology Line-Interactive

Output power capacity 2.2 kVA

Output power 1980 W

Waveform Sine

Input operation voltage (min) 140 V

Input operation voltage (max) 280 V

Input frequency 50/60 Hz

Output operation voltage (min) 208 V

Output operation voltage (max) 240 V

Output frequency regulation 50/60 Hz

Automatic Voltage Regulation (AVR) Yes

Surge energy rating 645 J

Hold time (min) 2 ms

Hold time (max) 10 ms

Efficiency 98.1%

Emergency Power Off (EPO) Yes

Noise level 55 dB

Surge protection Yes

Audible alarm(s) Yes

Auto-restart Yes

Ports & interfaces

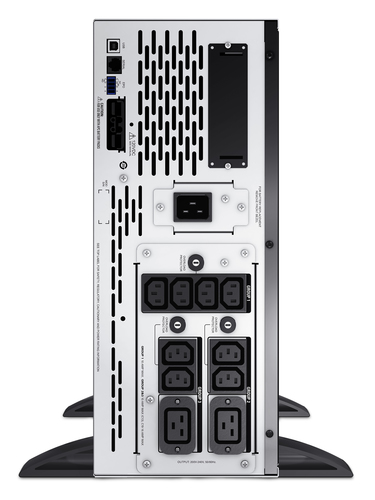

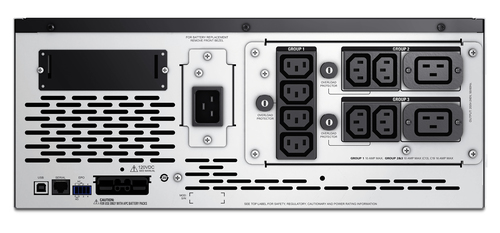

AC outlet types C13 coupler, C19 coupler

Power plug C20 coupler

AC outlets quantity 10 AC outlet(s)

Number of output IEC jumpers 2

USB port Yes

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery capacity 702 VAh

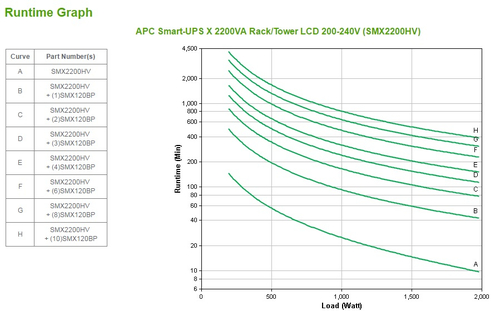

Typical backup time at full load 9.8 min

Typical backup time at half load 25.3 min

Battery life (max) 5 year(s)

Battery recharge time 3 h

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

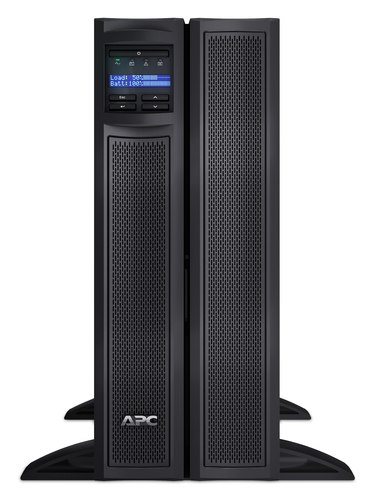

Form factor Rackmount/Tower

Rack capacity 4U

Cable length 2 m

Product colour Black, Stainless steel

Display type LCD

LED indicators Status, Battery replacement

Certification CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 178 mm

Depth 483 mm

Height 432 mm

Weight 38.6 kg

Package width 586 mm

Package depth 633 mm

Package height 330 mm

Package weight 47.7 kg

Packaging data

Rack mount kit Yes

Cables included RS-232, USB cable

Temperature sensor Yes

Manual Yes

Quick installation guide Yes

Software CD Yes

Logistics data

Products per pallet 6 pc(s)

Harmonized System (HS) code 85078000

Other features

Packaging content Web/SNMP Management Card
