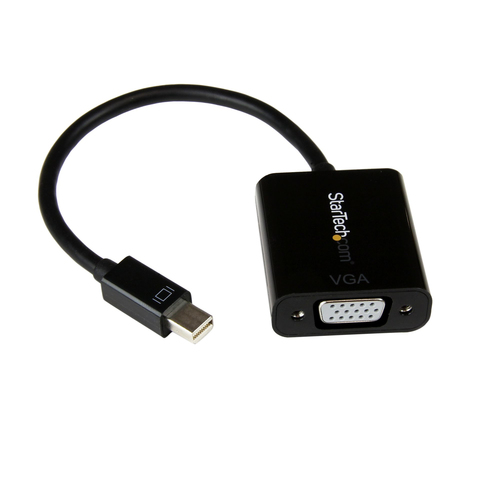

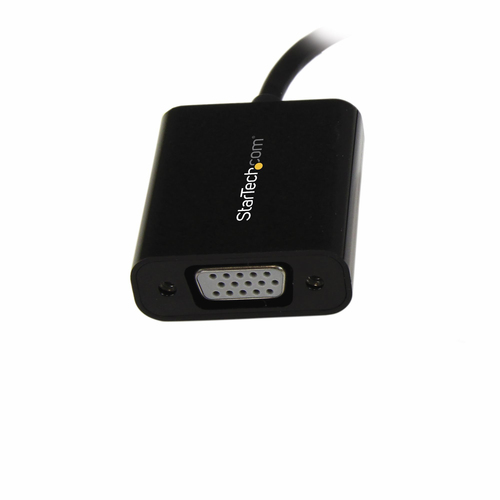

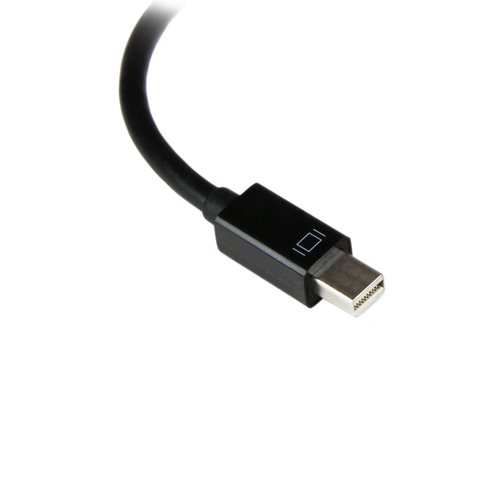

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black
- Brand
- STARTECH
- Product code
- MDP2VGA2
- SKU
- O3V4QWSC74LH8
- EAN/GTIN
- 065030854283
- MINI DISPLAYPORT TO VGA ADAPTER: Mini DisplayPort 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using the mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home / 7" (18cm) cable
- SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors / Tested with VGA cables up to 25'
- EASY TO USE: With no software or drivers required, the Mini DP to VGA converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Product Info
Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or ProjectorThe MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.18 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Product colour | Black |
| Chipset | Analogix - ANX9833 |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Certification | RoHS, CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 27 g |
| Width | 35 mm |
| Depth | 220 mm |
| Height | 8 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 36 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 213 mm |
| Products per master (outer) case | 150 pc(s) |
