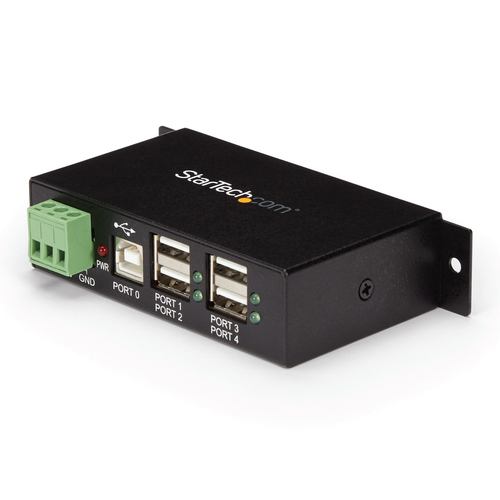

StarTech.com ST4200USBM interface hub
StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub
- Brand
- STARTECH
- Product code
- ST4200USBM
- SKU
- E070538SIA71B
- EAN/GTIN
- 0065030831024
- Protects your connected devices with 8kV Air and 4kV Contact ESD protection

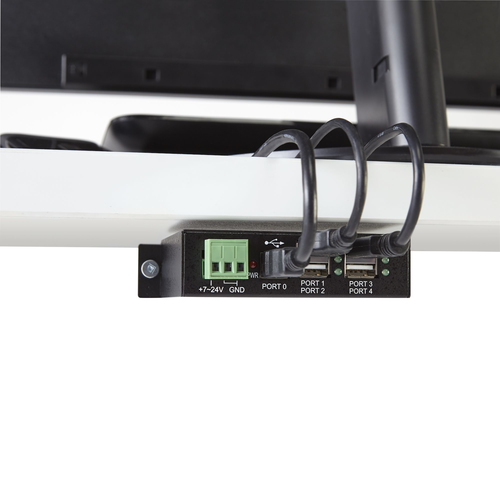

- Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails
- Offers flexible, wide-range power inputs with a 7-24V DC terminal block
- Adds four USB 2.0 ports from a single USB connection
€82.35
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 57.3 mm, Depth: 114 mm, Height: 26 mm. Package width: 210 mm, Package depth: 146 mm, Package height: 40 mm
Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 MbpsThis TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.Perfect for Harsh EnvironmentsThis industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.Connect More USB DevicesDesigned for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.Locate the Hub Where You Need It MostWith versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.Works with Older USB DevicesThe rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

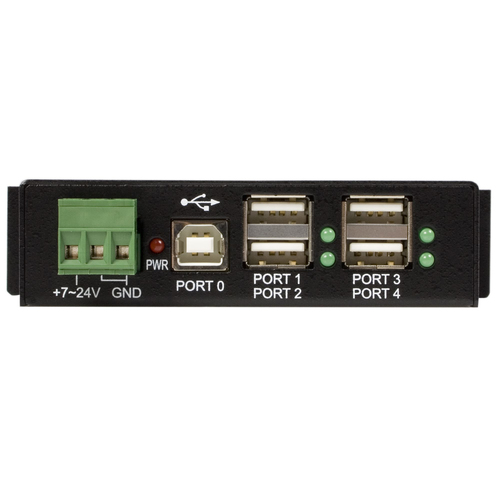

| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Ports quantity | 4 |
| Terminal block port | Yes |
| Features | |
| Data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS |
| Power | |
| Input voltage | 7 - 24 V |
| Weight & dimensions | |
| Width | 57.3 mm |
| Depth | 114 mm |
| Height | 26 mm |
| Weight | 207 g |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 146 mm |
| Package height | 40 mm |
| Package weight | 400 g |

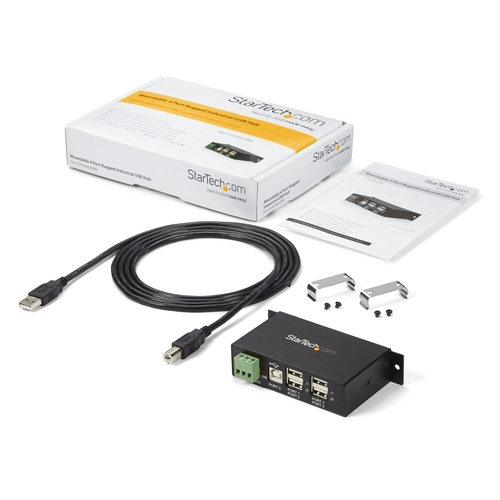

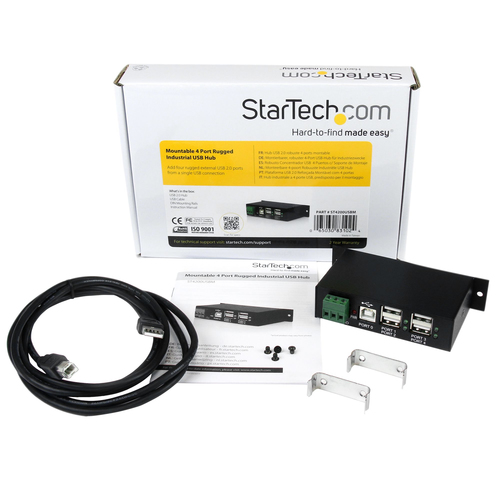

| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| DIN rail kit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Mean time between failures (MTBF) | 193317 h |
| Logistics data | |
| Master (outer) case width | 447 mm |
| Master (outer) case length | 527 mm |
| Master (outer) case height | 339 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | Renesas/NEC - µPD720114 |
