StarTech.com DP2VGAMM6B video cable adapter

DP2VGAMM6B - 065030852463

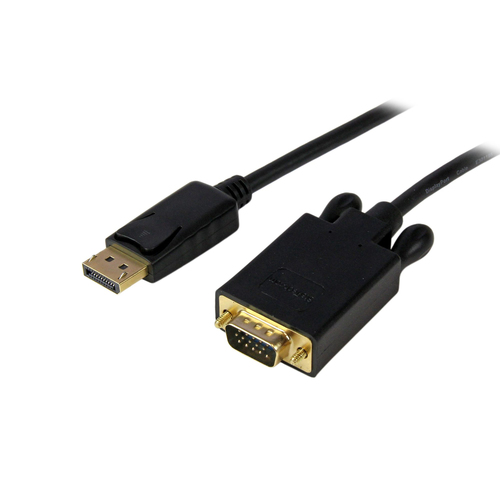

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector

Brand: STARTECH
Product code: DP2VGAMM6B
SKU: T4E5DLZM8MJA9
EAN/GTIN: 065030852463

DISPLAYPORT TO VGA CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office

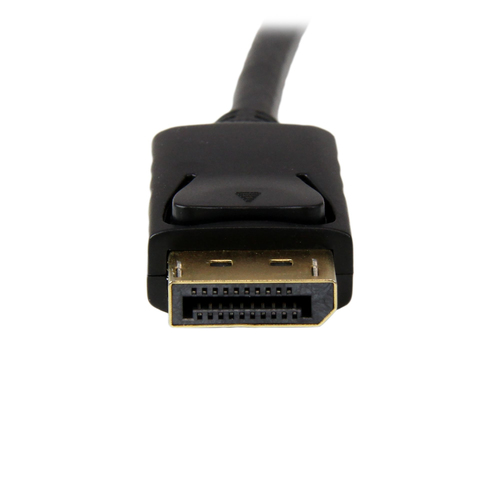

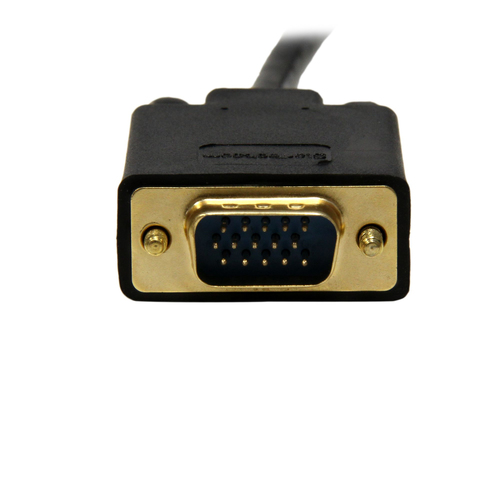

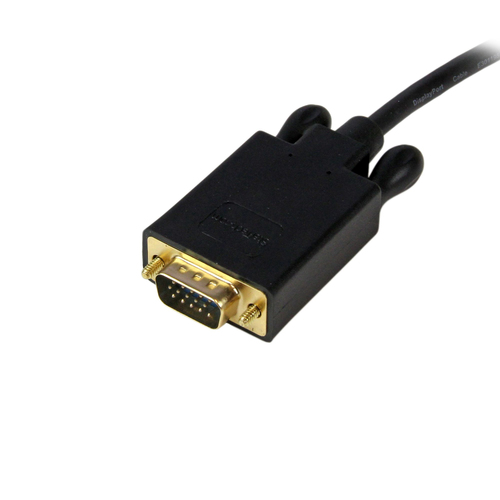

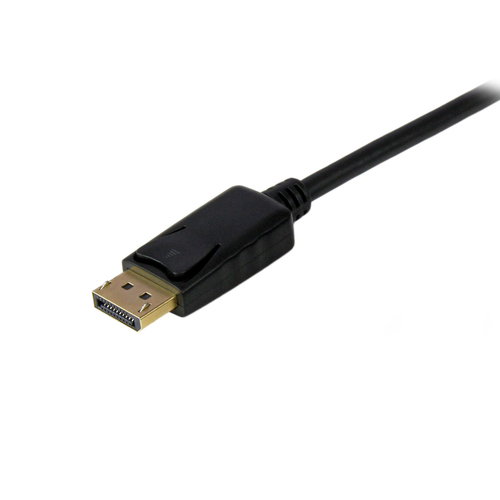

LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable

€41.59 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector (DP2VGAMM6B)

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector. Cable length: 1.8 m, Connector 1: DisplayPort, Connector 2: VGA (D-Sub). Compliance certificates: CE, RoHS. Weight: 103.67 g, Width: 35 mm, Depth: 1840 mm. Package width: 195 mm, Package depth: 220 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cableThe DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Specifications

Features

Connector 1 form factor Straight

Connector 2 form factor Straight

Cable length 1.8 m

Connector 1 DisplayPort

Connector 2 VGA (D-Sub)

Connector 1 gender Male

Connector 2 gender Male

DisplayPort version 1.2

Maximum resolution 2048 x 1280 pixels

Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280

Supported video modes 1080p

Maximum refresh rate 60 Hz

HBR2 support Yes

Product colour Black

Chipset Analogix - 9832

Plug and Play Yes

Converter type Active video converter

Operational conditions

Operating temperature (T-T) 0 - 60 °C

Storage temperature (T-T) -10 - 70 °C

Operating relative humidity (H-H) 40 - 85%

Sustainability

Sustainability certificates CE, RoHS

Weight & dimensions

Weight 103.67 g

Width 35 mm

Depth 1840 mm

Height 15 mm

Packaging data

Quantity per pack 1 pc(s)

Package width 195 mm

Package depth 220 mm

Package height 20 mm

Package weight 128 g

Logistics data

Harmonized System (HS) code 84733080

Master (outer) case width 420 mm

Master (outer) case length 415 mm

Master (outer) case height 435 mm

Products per master (outer) case 120 pc(s)
