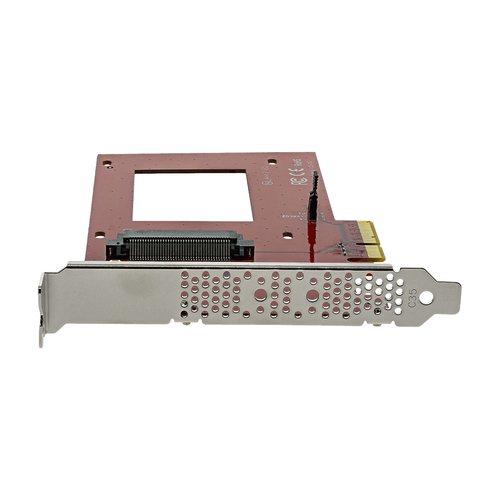

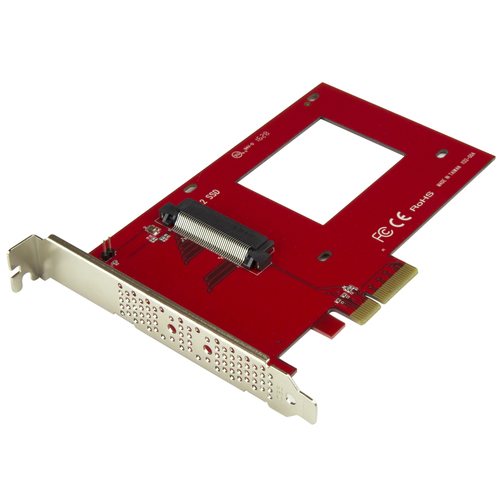

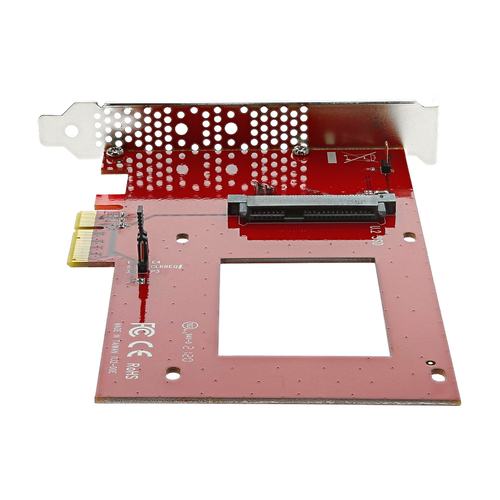

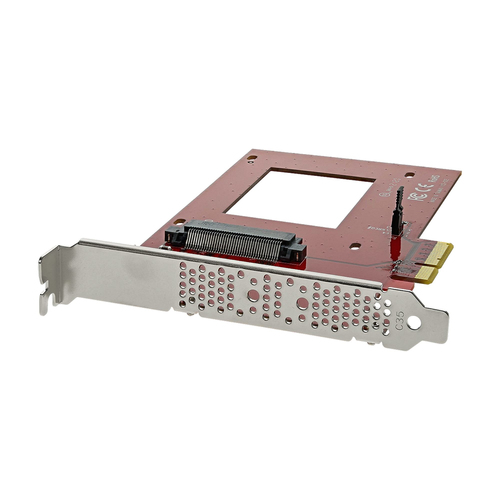

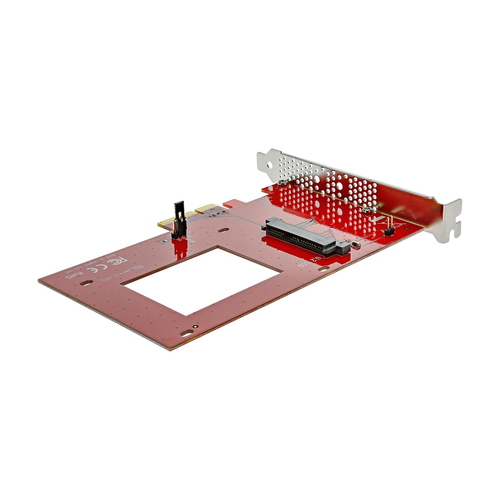

StarTech.com PEX4SFF8639 interface cards/adapter

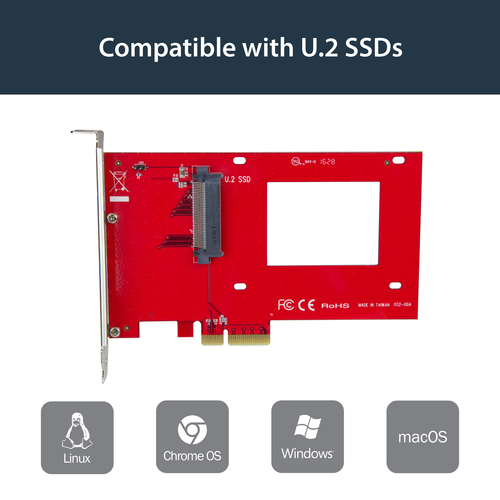

StarTech.com U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 4.0


Brand
STARTECH
Product code
PEX4SFF8639
SKU
O2BHSP04NA2ST
EAN/GTIN
0065030872591
  • Boost system speed and performance by adding a PCIe NVMe U.2 SSD to your PC
  • Simplify system builds with a U.2 to PCIe adapter that mounts your SSD directly to the adapter, with no need for adapter cables
  • PCI Express 4.0 x4 lane host adapter
  • Compatible with x4 PCIe 4.0 motherboards, and backward compatible with PCIe 3.0 / 2.0 / 1.0
  • OS independent with no drivers required, for a fast, hassle-free setup
€51.3 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

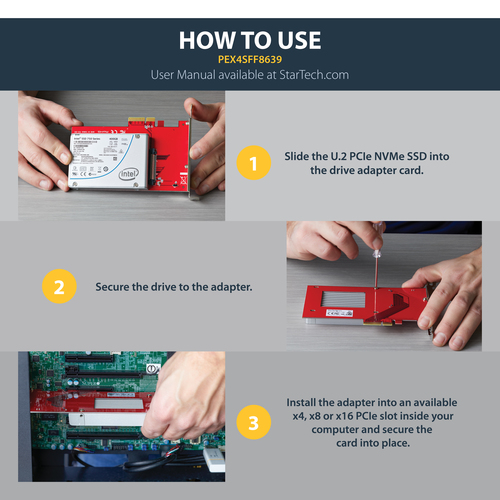

Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slotGet ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.Boost your system speed and performanceThe expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.Easy to installThe expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

Ports & interfaces
Host interface PCIe
Output interface U.2
Expansion card standard PCIe 4.0
Design
Internal Yes
Product colour Red
LED indicators Activity
Hot-swap No
Certification CE, FCC
Features
Plug and Play Yes
Operational conditions
Operating temperature (T-T) 5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 15 - 90%
Technical details
Sustainability certificates RoHS

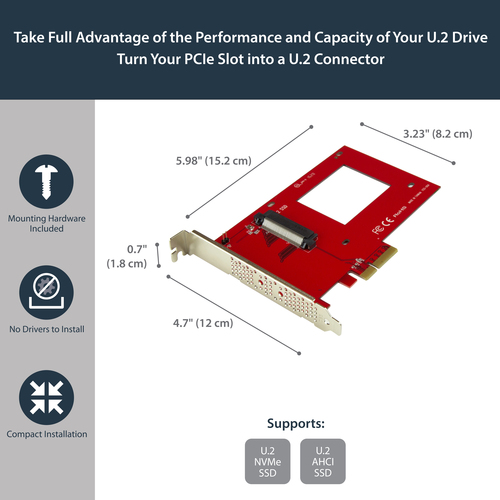

Weight & dimensions
Width 122 mm
Depth 165 mm
Height 22 mm
Weight 65 g

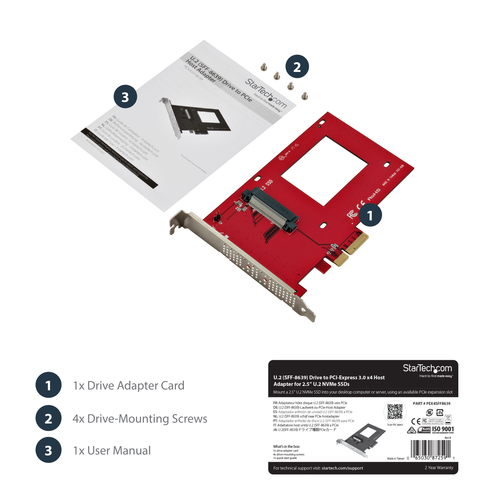

Packaging data
Screws included Yes
Quick installation guide Yes
Package width 160 mm
Package depth 220 mm
Package height 45 mm
Package weight 161 g
Logistics data
Harmonized System (HS) code 84733020
Products per master (outer) case 40 pc(s)
Master (outer) case width 340 mm
Master (outer) case length 450 mm
Master (outer) case height 490 mm
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
