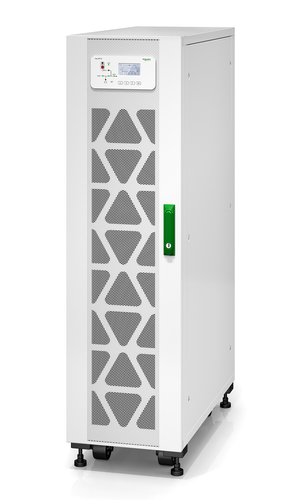

APC E3SUPS20K3IB2 uninterruptible power supply (UPS)
APC E3SUPS20K3IB2 uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
- Brand
- APC
- Product code
- E3SUPS20K3IB2
- SKU
- QNUL9WKHQDRJX
- EAN/GTIN
- 5054444236735
- Double-conversion (Online)
- 20 kVA 20000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 240 V
- Tower White
€9561.81
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
High-efficiency 3-phase UPS with internal batteries providing a runtime of 30 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 20 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 5.5% |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Number of output phases | 1 |
| Efficiency | 95% |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Noise level | 60 dB |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
| Form factor | Tower |
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 231 kg |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 242 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
