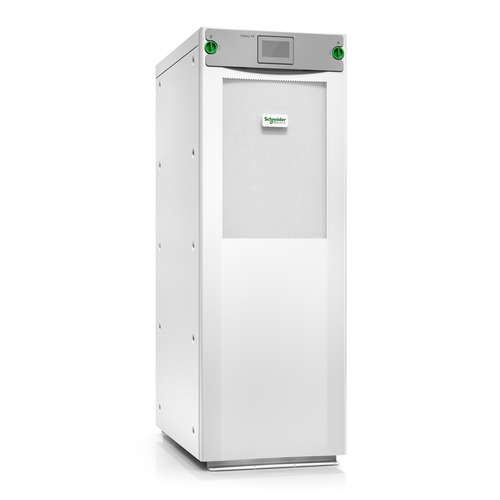

APC GVSUPS30KB4HS uninterruptible power supply (UPS)

GVSUPS30KB4HS - 0731304641780

APC GVSUPS30KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W

Brand: APC
Product code: GVSUPS30KB4HS
SKU: ROOW1VKBK7Y3A
EAN/GTIN: 0731304641780

Double-conversion (Online)
30 kVA 30000 W
Waveform: Sine
Sealed Lead Acid (VRLA) 480 V
Tower White

€16547.18 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

30 kVA, 30 kW, 40/70Hz, 61 dB, 521x847x1485mm, 460kg

APC GVSUPS30KB4HS. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 30000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product colour: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...

GVSUPS30KB4HS Features

- Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 30kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 2 smart high-capacity modular battery strings, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 30 kVA

Output power 30000 W

Waveform Sine

Input operation voltage (min) 340 V

Input operation voltage (max) 460 V

Input frequency 40/70 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 54 A

Number of input phases 3

Number of output phases 3

Input power factor 0.99

Crest factor 2.5:1

ECO mode Yes

Input current Total Harmonic Distortion (THD) 3%

Noise level 61 dB

Power protection features Overload, Short circuit

Audible alarm(s) Yes

Ports & interfaces

AC outlet types Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 480 V

Design

Form factor Tower

Product colour White

Display type LCD

International Protection (IP) code IP20

Certification CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 1000 m

Non-operating altitude 0 - 3000 m

Weight & dimensions

Width 521 mm

Depth 847 mm

Height 1485 mm

Weight 460 kg

Package width 640 mm

Package depth 990 mm

Package height 1680 mm

Package weight 490 kg

Packaging data

Quick installation guide Yes

Logistics data

Harmonized System (HS) code 85078000
