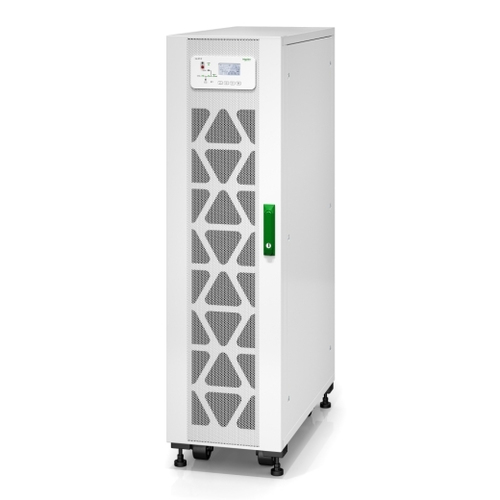

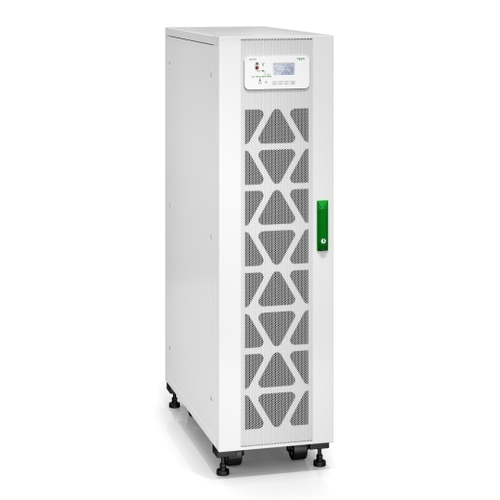

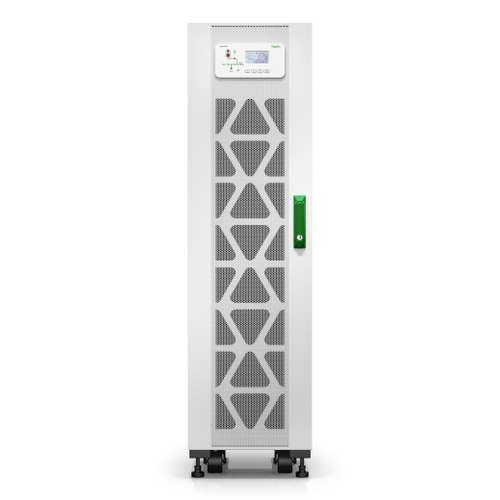

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
- Brand
- APC
- Product code
- E3SUPS10K3IB2
- SKU
- EU3EDFW7R7731
- EAN/GTIN
- 731304428145
- Double-conversion (Online)
- 10 kVA 10000 W
- Sealed Lead Acid (VRLA) 240 V
- Tower White
Product Info
High-efficiency 3-phase UPS with internal batteries providing a runtime of 40 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Convenience
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Protection
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Replaceable dust filters
protect the UPS in harsh environments.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 4% |
| Power protection features | Overload |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Design | |
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 907 mm |
| Height | 1400 mm |
| Weight | 211 kg |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 229 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 230 V |
