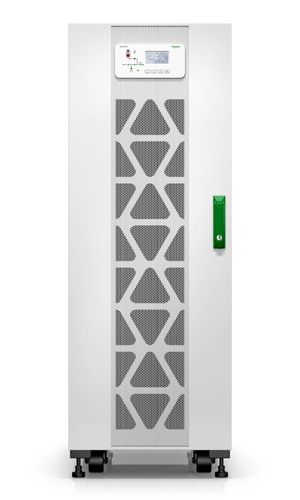

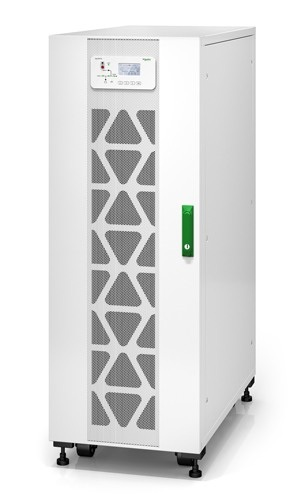

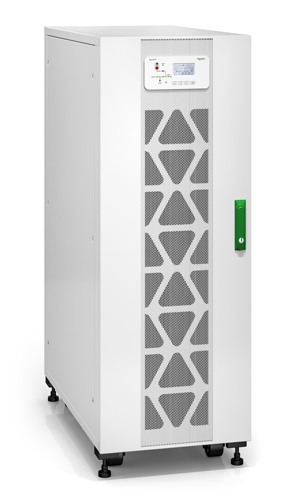

APC Easy 3S uninterruptible power supply (UPS)

E3SUPS40KHB2 - 731304428305

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 40 kVA 40000 W

Brand: APC
Product code: E3SUPS40KHB2
SKU: 1ID3PXABBQWBT
EAN/GTIN: 731304428305

Double-conversion (Online)
40 kVA 40000 W
Waveform: Pure sine
Sealed Lead Acid (VRLA) 240 V
Tower White

€12860.69 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 40 kVA, Output power: 40000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 240 V. Form factor: Tower, Product colour: White, International Protection (IP) code: IP20. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 500 mm, Depth: 969 mm, Height: 1400 mm

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 40 kVA

Output power 40000 W

Waveform Pure sine

Input operation voltage (min) 304 V

Input operation voltage (max) 477 V

Input frequency 45/65 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 73 A

Number of input phases 3

Number of output phases 3

Input power factor 0.99

Output voltage Total Harmonic Distortion (THD) 3%

Input current Total Harmonic Distortion (THD) 3%

Noise level 63 dB

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 240 V

Number of batteries supported 4

Design

Form factor Tower

Product colour White

International Protection (IP) code IP20

Certification CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 999.9 m

Non-operating altitude 0 - 15000 m

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 500 mm

Depth 969 mm

Height 1400 mm

Weight 590 kg

Package width 683 mm

Package depth 1114 mm

Package height 1640 mm

Package weight 643 kg

Packaging data

Quick installation guide Yes

Logistics data

Harmonized System (HS) code 85078000

Other features

Output voltage 400 V
