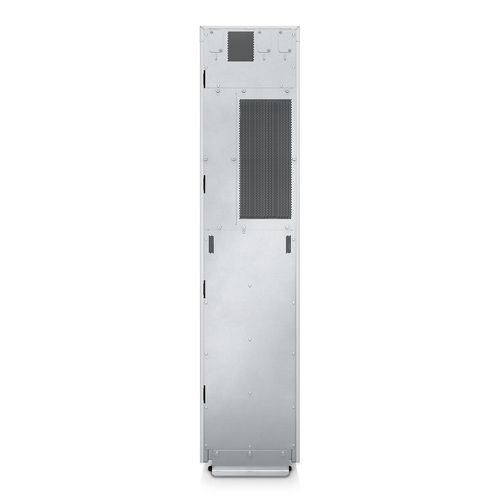

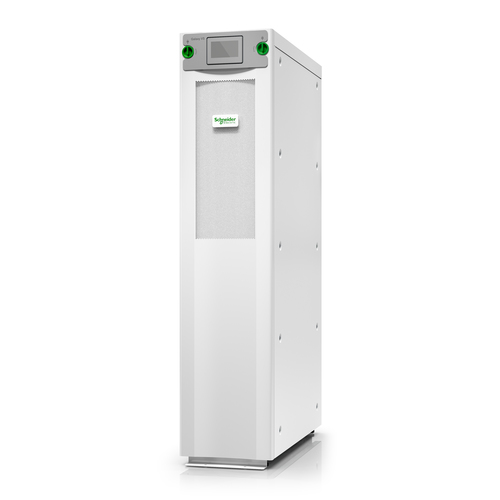

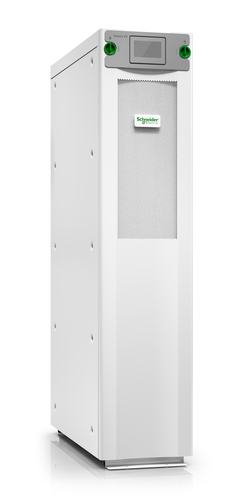

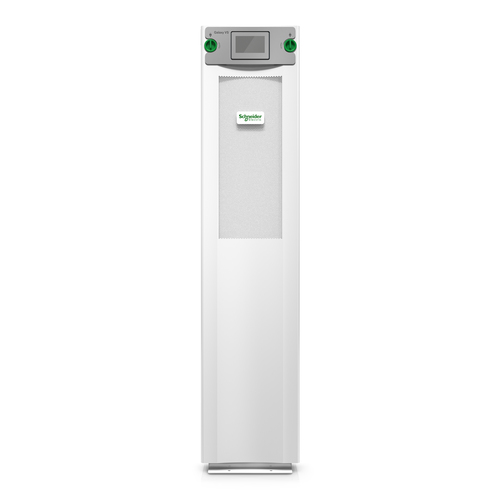

APC GVSUPS15KB2HS uninterruptible power supply (UPS)

GVSUPS15KB2HS - 0731304406716

APC GVSUPS15KB2HS uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W

Brand: APC
Product code: GVSUPS15KB2HS
SKU: CO30U4C1JV7BA
EAN/GTIN: 0731304406716

Double-conversion (Online)
15 kVA 15000 W
Waveform: Sine
Sealed Lead Acid (VRLA) 480 V
Tower White

€11455.72 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

15 kVA, 15 kW, 40/70Hz, 65 dB, 333x847x1485mm, 245kg

APC GVSUPS15KB2HS. UPS topology: Double-conversion (Online), Output power capacity: 15 kVA, Output power: 15000 W. AC outlet types: Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product colour: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...

GVSUPS15KB2HS Features

- Galaxy VS UPS 15kW 400V, 1 internal 7Ah smart modular battery string, expandable to 2, Start-up 5x8
- Highly efficient, easy-to-deploy 15kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart modular battery string, expandable to 2 strings for extended runtime. Runtime charts available in the Documents tab.

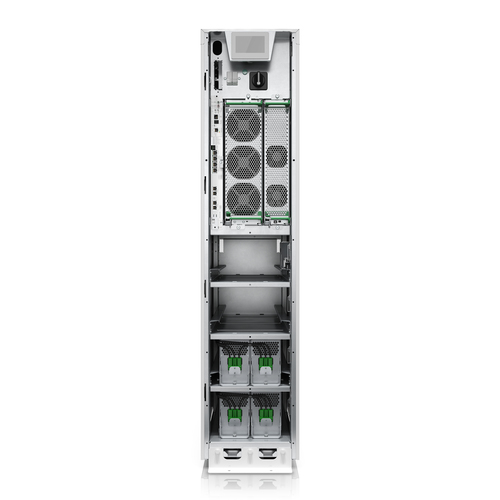

- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 15 kVA

Output power 15000 W

Waveform Sine

Input operation voltage (min) 340 V

Input operation voltage (max) 460 V

Input frequency 40/70 Hz

Output operation voltage (min) 380 V

Output operation voltage (max) 415 V

Output frequency 50/60 Hz

Maximum current 27 A

Number of input phases 3

Number of output phases 3

Input power factor 0.99

Crest factor 2.5:1

ECO mode Yes

Output voltage Total Harmonic Distortion (THD) 3%

Input current Total Harmonic Distortion (THD) 3%

Noise level 65 dB

Power protection features Overload, Short circuit

Audible alarm(s) Yes

Ports & interfaces

AC outlet types Hard Wire 3-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery voltage 480 V

Design

Form factor Tower

Product colour White

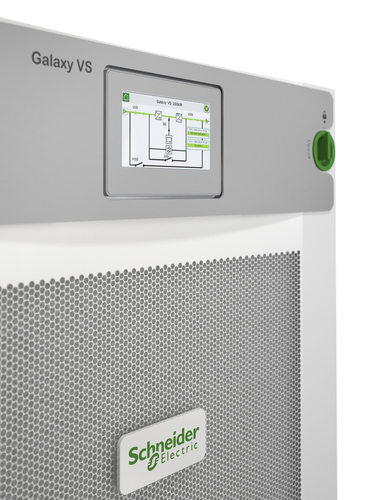

Display type LCD

International Protection (IP) code IP20

Certification CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 40 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 10 - 80%

Operating altitude 0 - 1000 m

Non-operating altitude 0 - 3000 m

Weight & dimensions

Width 333 mm

Depth 847 mm

Height 1485 mm

Weight 245 kg

Package width 640 mm

Package depth 990 mm

Package height 1690 mm

Package weight 270 kg

Packaging data

Quick installation guide Yes

Logistics data

Harmonized System (HS) code 85078000
