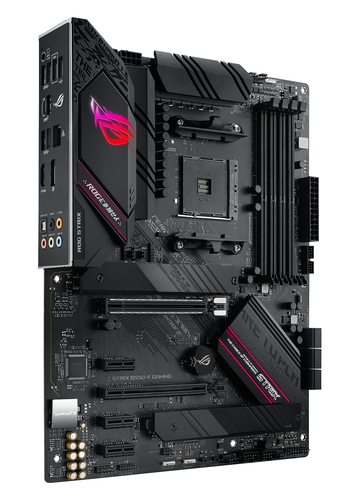

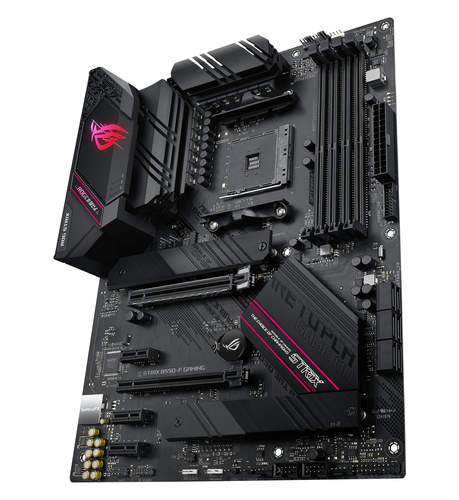

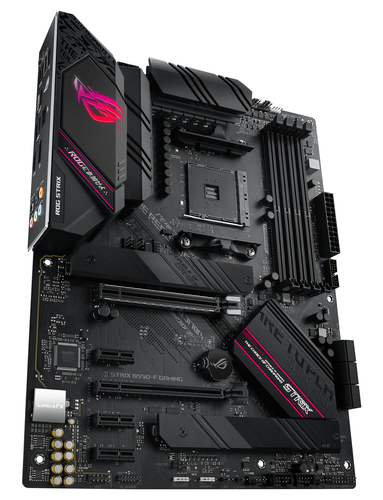

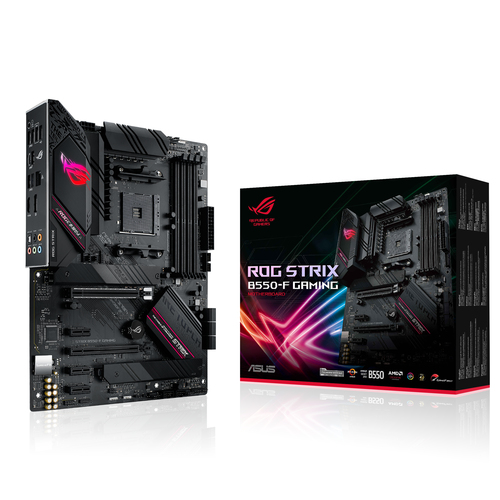

ASUS ROG STRIX B550-F GAMING AMD B550 Socket AM4 ATX
- Brand
- Asus
- Product code
- 90MB14S0-M0EAY0
- SKU
- 19LJ6T3AWYARR
- AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
Product Info
Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Description
Boost
GameFirst VI intelligently switches application priority and adjusts bandwidth accordingly, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay — even when you're streaming high-quality video to your audience or transferring large files.
Identification
GameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognized.
Visualization
An intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Maximum number of SMP processors | 1 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |
| RAID levels | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express slots version | 3.0, 4.0 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256000 Mbit |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |

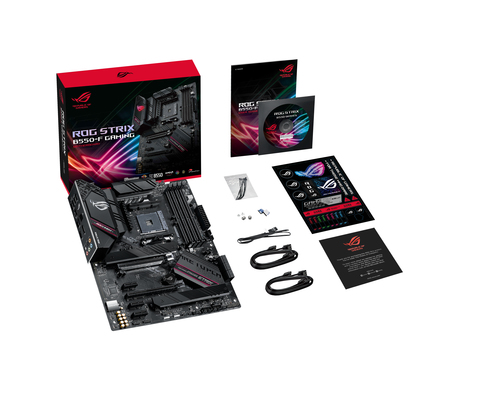

| Packaging content | |
| Cables included | SATA |
| Manual | Yes |
| Drivers included | Yes |
| Other features | |
| Weight | 945 g |
