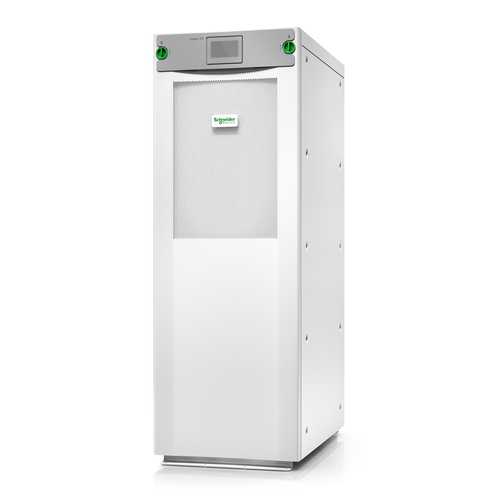

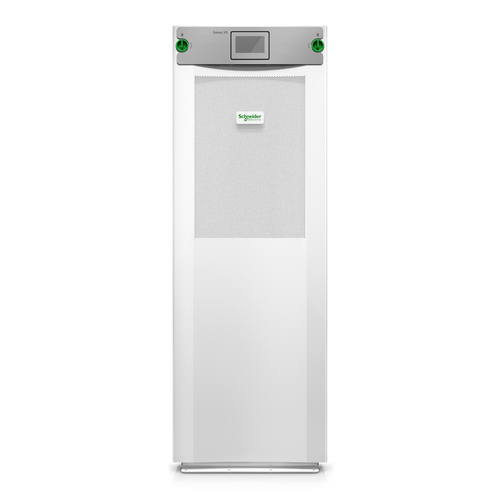

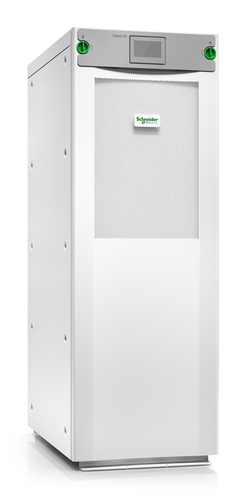

APC GVSUPS20K0B4HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
- Brand
- APC
- Product code
- GVSUPS20K0B4HS
- SKU
- 2SD97TNZBDXBM
- EAN/GTIN
- 731304410041
- Double-conversion (Online)
- 20 kVA 20000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 480 V
- Tower White
Product Info
Parallel-redundant capable
Power the connected equipment with multiple uninterruptible power supplies to increase system redundancy
Parallel-capacity capable
Increases total power capacity by using multiple uninterruptible power supplies simultaneously.
Internal backfeed protection
Increases system defense from power anomalies.
Energy storage flexibility
Conventional flooded and modular battery offer along with different charging modes allows tailoring to specific back-up requirements.
Compatible with Schneider Electric's lithium ion battery solution
Reduces system footprint and weight, cooling and maintenance requirements, and total cost of ownership; offers double the life of VRLA batteries; and improves backup storage predictability and manageability.
Total cost of Ownership
Robust operation
No power derating in kW up to 40 degrees C or 104 degrees F.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
ECOnversion mode
Operating mode that ensures ultra high efficiency while charging the batteries, conditioning the load power factor and ensuring a Class 1 output voltage regulation.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Serviceability
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Multiple levels of service
With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
StruxureOn enabled
Simplify maintenance and operation of your equipment through the use of vendor-neutral, cloud-based software and services.
5x8 Start-up service included
Required for full coverage of factory warranty
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 384 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 340 V |
| Output operation voltage (max) | 460 V |
| Output frequency | 50/60 Hz |
| Maximum current | 54 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Power factor | 0.99 |
| Crest factor | 2.5:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | Hard Wire 5-wire (3PH + N + G) |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 480 V |
| Design | |
| Form factor | Tower |
| Product colour | White |

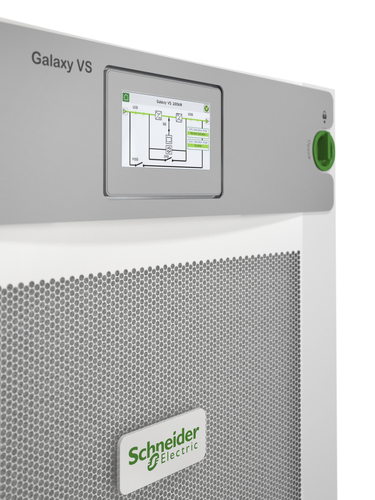

| Display type | LED |
| International Protection (IP) code | IP20 |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Compatibility | Schneider Electric's lithium ion battery solution |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.84 m |
| Non-operating altitude | 0 - 3048 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
| Package weight | 200 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
