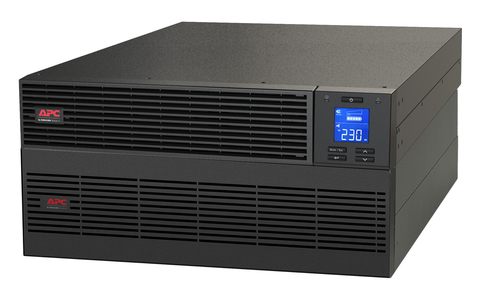

APC SRV10KRIL uninterruptible power supply (UPS)

SRV10KRIL - 731304343288

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit

Brand: APC
Product code: SRV10KRIL
SKU: GQ08F33GF3VGV
EAN/GTIN: 731304343288

Double-conversion (Online)
10 kVA 10000 W
Waveform: Sine
Sealed Lead Acid (VRLA)
Mini Tower Black

€7150.51 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Charging current: 9 A. Form factor: Mini Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

Specifications

Features

UPS topology Double-conversion (Online)

Output power capacity 10 kVA

Output power 10000 W

Waveform Sine

Input operation voltage (min) 110 V

Input operation voltage (max) 300 V

Input frequency 50/60 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency 50/60 Hz

Output voltage regulation 1%

Maximum current 4 A

Surge energy rating 600 J

Efficiency 94%

Power factor 0.99

Input power factor 0.99

Crest factor 3:1

Emergency Power Off (EPO) Yes

Noise level 58 dB

Power protection features Overload

Audible alarm(s) Yes

Ports & interfaces

USB port Yes

Serial interface Yes

Serial interface type RS-232

Battery

Battery technology Sealed Lead Acid (VRLA)

Charging current 9 A

Design

Form factor Mini Tower

Rack capacity 2U

Cooling type Active

Built-in fan Yes

Product colour Black

Display type LCD

LED indicators Fault

Certification CE

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) 0 - 95 °C

Technical details

Sustainability certificates RoHS

Weight & dimensions

Width 438 mm

Depth 615 mm

Height 86.5 mm

Weight 16 kg

Packaging data

Cables included USB cable

Manual Yes

Logistics data

Harmonized System (HS) code 85078000
