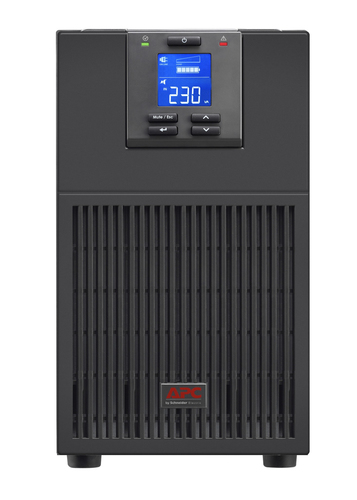

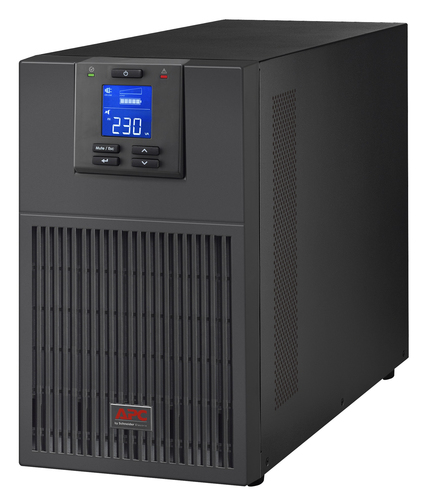

APC SRV10KIL uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
- Brand
- APC
- Product code
- SRV10KIL
- SKU
- WW4T6R8SNFKSV
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- Tower Black
Product Info
SRV10KIL Features

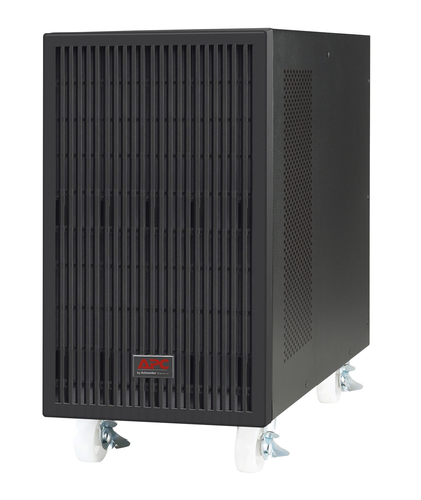

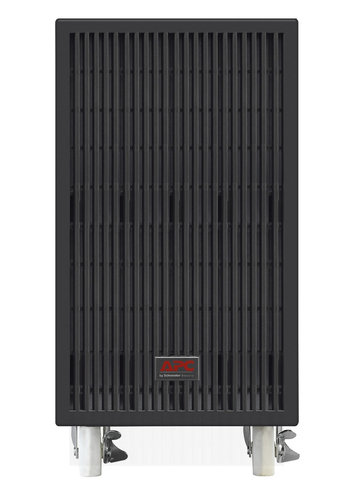

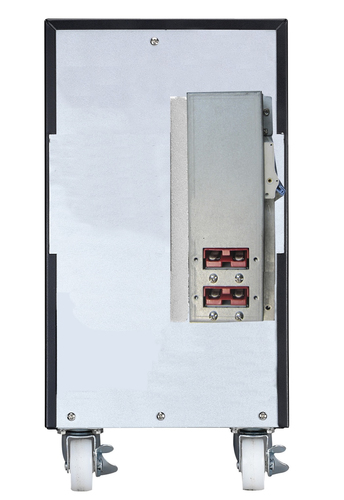

APC Easy UPS On-Line SRV Ext. Runtime 10000VA 230V with External Battery Pack
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: CD with software, USB cable, User Manual
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |

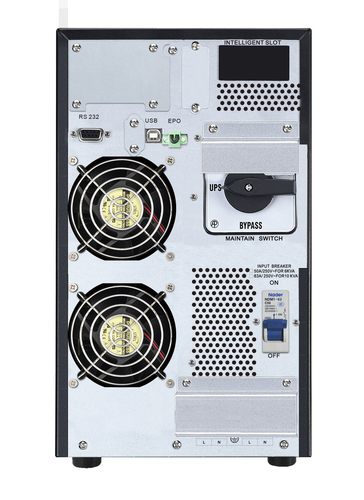

| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Built-in fan | Yes |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Power, Status |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 485 mm |
| Height | 368 mm |
| Weight | 76.5 kg |
| Package weight | 82.5 kg |
| Packaging data | |
| Cables included | USB cable |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
