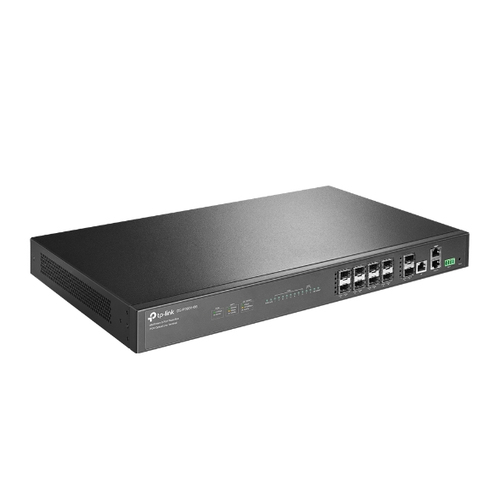

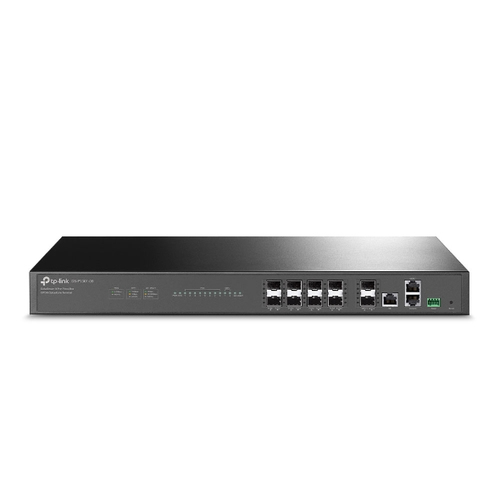

TP-Link DeltaStream DS-P7001-08 optical line terminal (OLT)
DS-P7001-08 - 4897098683170
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal
- Brand
- TP-Link
- Product Family
- DeltaStream
- Product code
- DS-P7001-08
- SKU
- IJP3EMFAJ345K
- EAN/GTIN
- 4897098683170
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port
- Dual Redundant Power Supplies: Carrier-class reliability with dual built-in AC+DC power supplies
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications
Product Info
8× 2.5G PON, 2× 10 Gbps SFP+ Uplink, 1× 10/100/1000 Mbps RJ45 Uplink, 1× RJ45 Console, 1× RJ45 MGMT, 1× Alarm Port, 440 × 260 × 44 mm
TP-Link DeltaStream 8-port Pizza-box GPON Optical Line Terminal. GPON split ratio (max): 1:128, Maximum operating distance (GPON): 20000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 260 mm, Height: 44 mm
8-Port GPON Optical Line Terminal
8 GPON Ports,
Supports 1024 ONUs
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
Free Centralized Management
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
- No Additional Expense
- Improve Management Efficiency And Reduce Maintenance Costs
- The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.

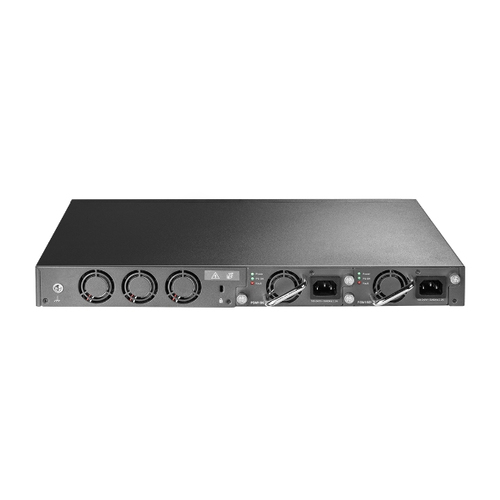

Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
| Features | |
|---|---|
| Static route | Yes |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum operating distance (GPON) | 20000 m |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| GPON ports quantity | 8 |
| Power | |
| AC input voltage | 100 - 240 V |
| DC voltage range | 38.4 - 72 V |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
