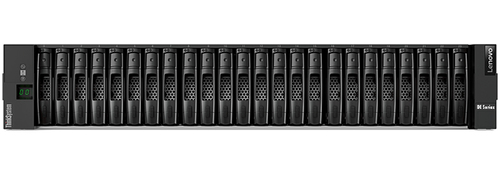

Lenovo ThinkSystem DE4000H disk array 0 TB Rack (2U) Black
- Brand
- Lenovo
- Product code
- 7Y75A00TWW
- SKU
- 01XVU0XEC20FL
- Large Enterprise Business
- Rack (2U) Black
- USB connectivity Hot-swap drive bays
- 913 W
Product Info
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 288 TB |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | Yes |
| Serial interface type | RJ-45 |
| RJ-45 ports quantity | 3 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Yes |
| Cooling | Yes |
| Built-in display | Yes |
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Performance | |
| Device class | Large Enterprise Business |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Height | 85 mm |
| Weight | 24.6 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
