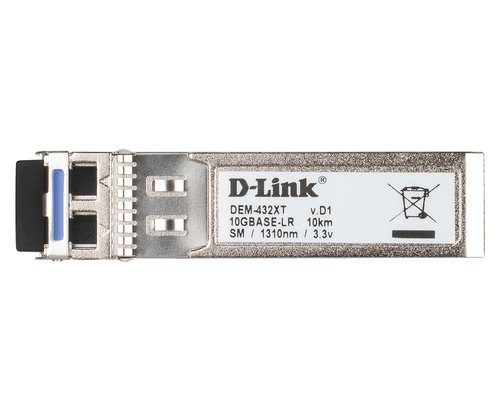

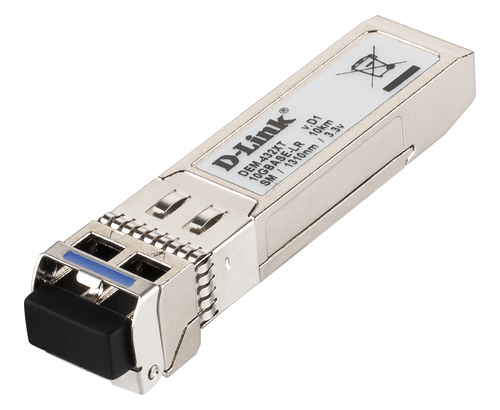

D-Link 10GBase-LR SFP+ Transceiver, 10km - 10 Pack
- Brand
- D-Link
- Product code
- DEM-432XT/10
- SKU
- 3X0CQTY7MUF0T
- EAN/GTIN
- 790069471629
- Enhanced Small Form-Pluggable (SFP+) form factor
- Hot pluggable
- Support 10G Ethernet
- RoHS Compliant
- Compliant with MSA (Multiple Source Agreement)
- Compliant with IEEE802.3ae and 802.3aq standards
Product Info
Better 10G Ethernet Connectivity for Enterprise Deployments
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Enhanced Small Form-factor Pluggable Format
The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -8.5 dBmW |
| Tx power (max) | 0.5 dBmW |
| Rx power (min) | -8.5 dBmW |
| Rx power (max) | 0.5 dBmW |
| Link budget | 10.1 dB |
| Networking standards | IEEE 802.3ae |
| Fiber ethernet cabling technology | 10GBASE |
| Features | |
| Product colour | Black, Stainless steel |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 4650000 h |
| Certification | CE, FCC, VCCI, UL, TUV, CDRH |
| Power | |
| Input voltage | 3.3 V |
| Maximum current | 0.3 A |
| Operational conditions | |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14.8 mm |
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 19.5 g |
| Packaging data | |
| Number of products included | 10 pc(s) |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
