TP-Link DeltaStream DS-P7001-16 optical line terminal (OLT)

DS-P7001-16 - 4897098683620

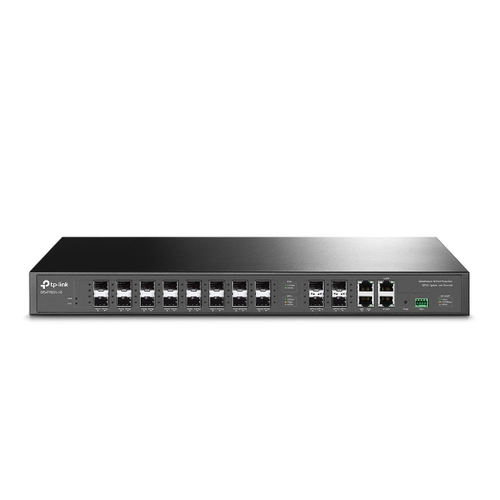

TP-Link DeltaStream 16-Port Pizza-Box GPON Optical Line Terminal

Brand: TP-Link
Product Family: DeltaStream
Product code: DS-P7001-16
SKU: 1SYA7P33WQ0GO
EAN/GTIN: 4897098683620

16 GPON Ports: Supports 1:128 splitting ratio for every port—up to 2048 ONTs by one device
High-Speed Uplink Ports: Provides 4× 10GE SFP+ ports and 2× gigabit uplink ports
Dual Redundant Power Supplies: Carrier-class reliability with dual hot-swap AC, DC, or mixed power input
Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications

€2562.01 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

16× 2.5G PON, 4× 10 Gbps SFP+ Uplink, 2× 10/100/1000 Mbps RJ45 Uplink, 1× RJ45 Console, 1× RJ45 MGMT, 1× Alarm Port, 440 × 440 × 44 mm

TP-Link DeltaStream 16-Port Pizza-Box GPON Optical Line Terminal. GPON split ratio (max): 1:128, Maximum operating distance (GPON): 60000 m. Upstream ports: Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 440 mm, Height: 44 mm

Specifications

Features

Switch layer L2+/L3

Static route Yes

Multicast support Yes

IGMP snooping Yes

Quality of Service (QoS) support Yes

GPON split ratio (max) 1:128

Access Control List (ACL) Yes

MAC address entries Dynamic MAC address entries, Static MAC address entries

Ports & interfaces

Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Upstream ports 10G Ethernet, Gigabit Ethernet

Ethernet LAN (RJ-45) ports 2

GPON ports quantity 16

10G Ethernet ports quantity 4

Power

AC input voltage 100 - 240 V

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Technical details

Sustainability compliance Yes

Sustainability certificates CE, Federal Communications Commission (FCC)
