TP-Link Archer TX20U

ARCHER TX20U - 8885020620191

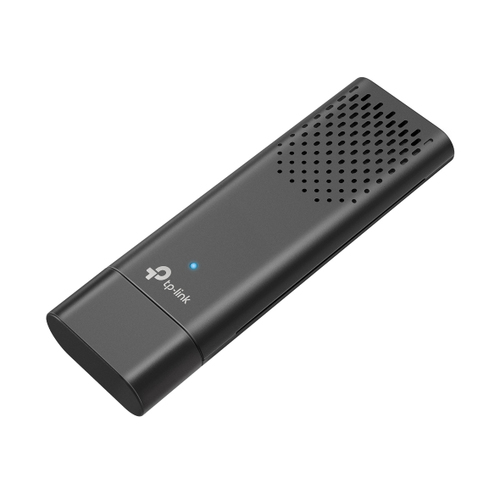

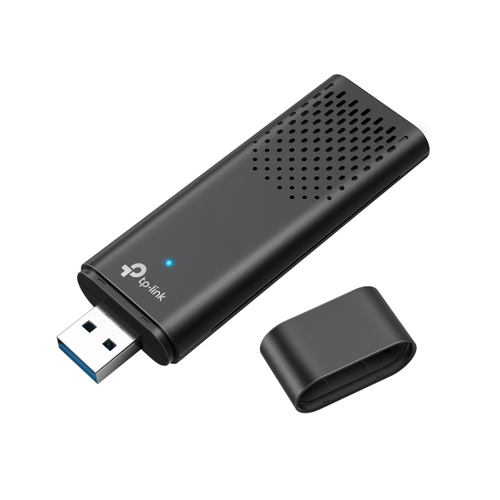

TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter

Brand: TP-Link
Product Family: Archer
Product code: ARCHER TX20U
SKU: H1NFF9D9NTNM2
EAN/GTIN: 8885020620191

Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity
Broader Coverage - Connect to your WiFi from wherever in your home with high-performance antennas and Beamforming
Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
Improved Security - WPA3 provides the latest security enhancements for personal password protection
SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0

€47.2 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), IEEE 802.11a/b/g/n/ac/ax, 90.2 × 29.2 × 12.9 mm

TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter. Connectivity technology: Wired, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1201 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.

Specifications

Ports & interfaces

Connectivity technology Wired

Host interface USB

Interface WLAN

USB connector form factor Straight

USB version 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate 1201 Mbit/s

Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-Fi Yes

Wi-Fi band Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rates supported 11,54,300,400,574,867 Mbit/s

Security algorithms WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Design

Component for PC

Product colour Black

Internal No

Transmitting power (CE) 18.5 - 21.5 dBm

Transmitting power (FCC) 19 dBm

LED indicators Status

Operating modes Infrastructure mode

System requirements

Windows operating systems supported Windows 10, Windows 11

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Sustainability

Sustainability certificates CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width 90.2 mm

Depth 29.2 mm

Height 12.9 mm

Packaging content

Quick installation guide Yes
