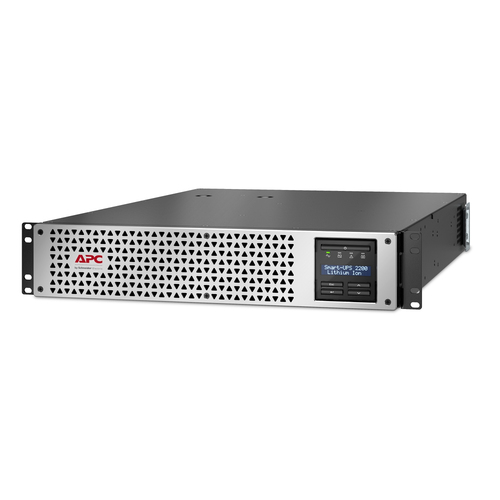

APC SMTL2200RMI2UC uninterruptible power supply (UPS)

SMTL2200RMI2UC - 731304643197

APC Smart-UPS Li-ion SMTL2200RMI2UC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, 2200VA

Brand: APC HW
Product code: SMTL2200RMI2UC
SKU: XGE8Z3JWJLWTH
EAN/GTIN: 731304643197

Line-Interactive
2.2 kVA 1980 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black, Grey

€2903.3 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

APC Smart-UPS Li-ion SMTL2200RMI2UC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, 2200VA

APC Smart-UPS Li-ion SMTL2200RMI2UC - 8xC13 & 1xC19, Rackmount 2U, SmartConnect, 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 10 AC outlet(s), Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Grey, Rack capacity: 2U. Compliance certificates: CE, GS mark, RoHS, VDE, Certification: IRAM, RCM

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable

Specifications

Features

UPS topology Line-Interactive

Output power capacity 2.2 kVA

Output power 1980 W

Waveform Sine

Input operation voltage (min) 151 V

Input operation voltage (max) 302 V

Input frequency 50/60 Hz

Output operation voltage (min) 220 V

Output operation voltage (max) 240 V

Output frequency 50/60 Hz

Automatic Voltage Regulation (AVR) Yes

Surge energy rating 375 J

Response time 6 ms

Heat dissipation 215 BTU/h

Number of input phases 1

Number of output phases 1

Output voltage Total Harmonic Distortion (THD) 5%

Noise level 55 dB

Audible alarm(s) Yes

Auto-restart Yes

Power source type AC

Ports & interfaces

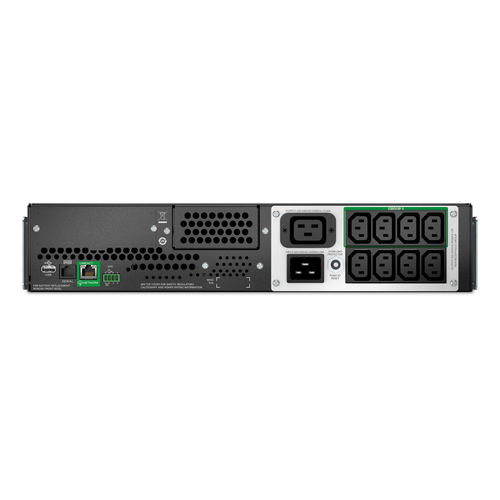

AC outlet types C13 coupler, C19 coupler

AC outlets quantity 10 AC outlet(s)

Number of output IEC jumpers 3

USB port Yes

Serial interface Yes

Serial interface type RJ-45

Ethernet LAN (RJ-45) ports 1

SmartSlot Yes

Battery

Battery technology Sealed Lead Acid (VRLA)

Battery life (max) 5 year(s)

Battery recharge time 3 h

Hot-swap battery Yes

Automatic battery test Yes

Cold start Yes

Design

Form factor Rackmount/Tower

Rack capacity 2U

Cable length 2 m

Product colour Black, Grey

Display type LCD

LED indicators Yes

Certification IRAM, RCM

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -15 - 45 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3048 m

Non-operating altitude 0 - 15240 m

Technical details

Sustainability compliance Yes

Sustainability certificates CE, GS mark, RoHS, VDE

Weight & dimensions

Width 432 mm

Depth 683 mm

Height 86 mm

Weight 42.3 kg

Package width 980 mm

Package depth 600 mm

Package height 254 mm

Package weight 49.7 kg

Packaging data

Rack mount kit Yes

Cables included USB cable

Other features

Input connection type BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Nominal output voltage 230 V

Nominal input voltage 230 V
