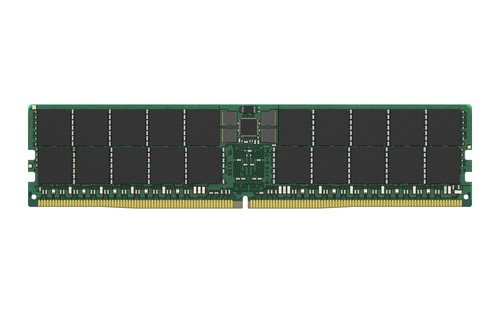

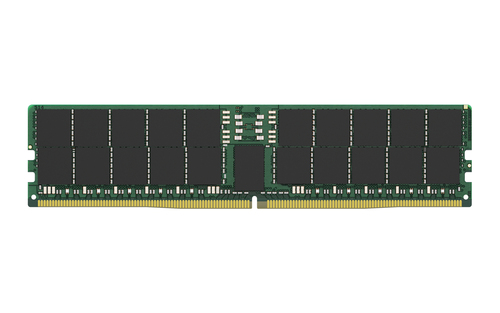

Kingston Technology KSM56R46BD4PMI-96HMI memory module
Kingston Technology 96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit
- Brand
- KINGSTON VRAM
- Product code
- KSM56R46BD4PMI-96HMI
- SKU
- Z8WBW93DXONIB
- EAN/GTIN
- 740617340242
- PC/Server 96 GB DDR5
- 288-pin DIMM 1 x 96 GB
- CAS latency: 46
- 1.1 V
- ECC
€2177.85
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Kingston Technology 96GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 24Gbit. Component for: PC/Server, Internal memory: 96 GB, Memory layout (modules x size): 1 x 96 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC
| Features | |
|---|---|
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| CAS latency | 46 |
| Internal memory | 96 GB |
| Memory layout (modules x size) | 1 x 96 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 12288M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Cooling type | Heatsink |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
