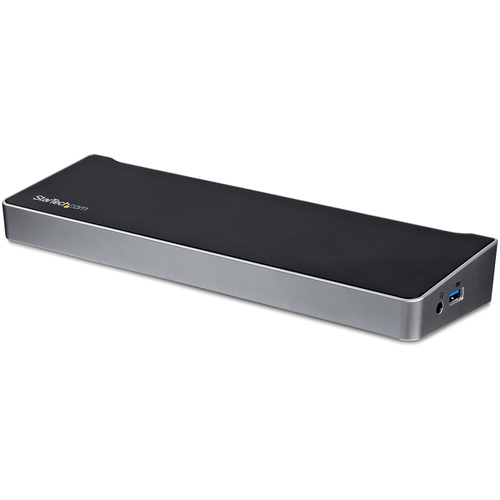

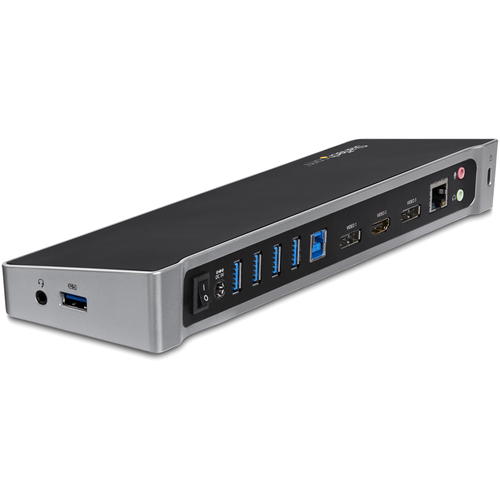

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort
€123.45

Brand
STARTECH
Product code
USB3DOCKH2DP
SKU
LIAH0D0V7AJQX
  • Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
  • Ethernet LAN 10,100,1000 Mbit/s Wake-on-LAN ready
  • Auto MDI/MDI-X Full duplex
  • Cable lock slot

Product Info

Port Replicator | Mac & Windows | 4K DP | 5 USB ports | TAA Compliant

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

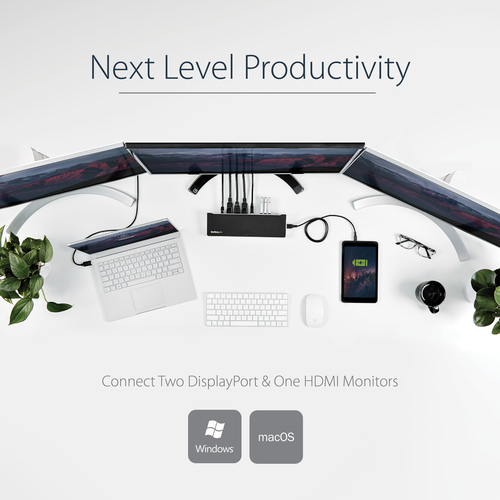

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

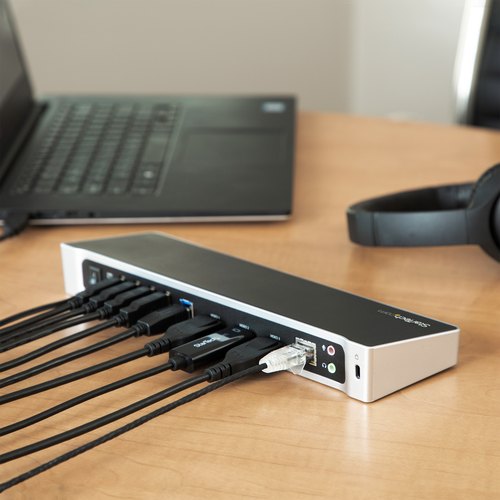

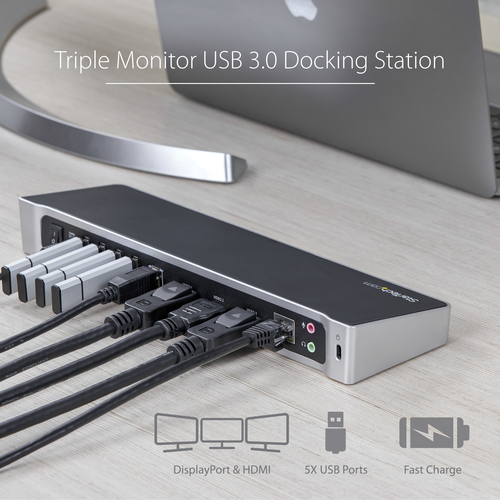

Powerful Connections and Fast Device Charging

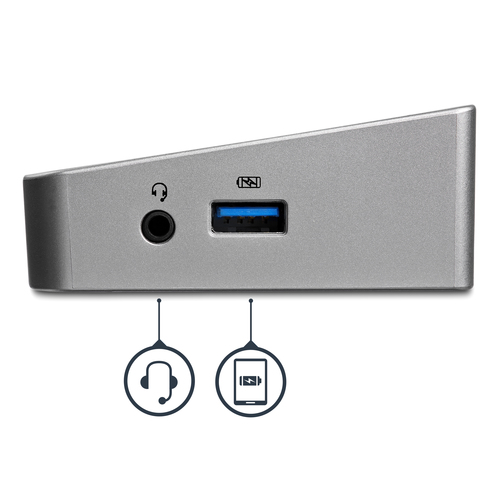

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

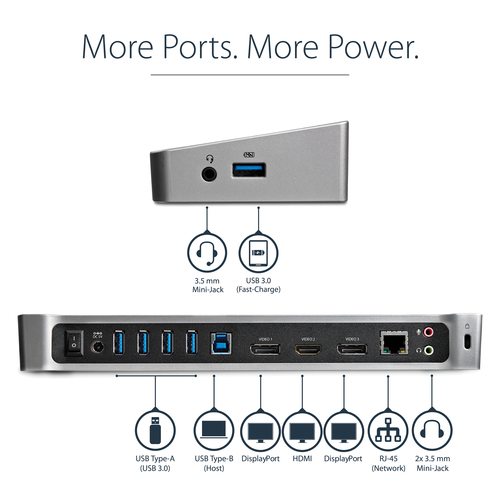

- Maximize your display capabilities with triple monitors (1 x HDMI and 2 x DP) or a dual-monitor setup
- Achieve a high resolution with up to 3840x2160p (4K) on one of the displays
- Connect your USB devices with 5 x USB 3.0 ports

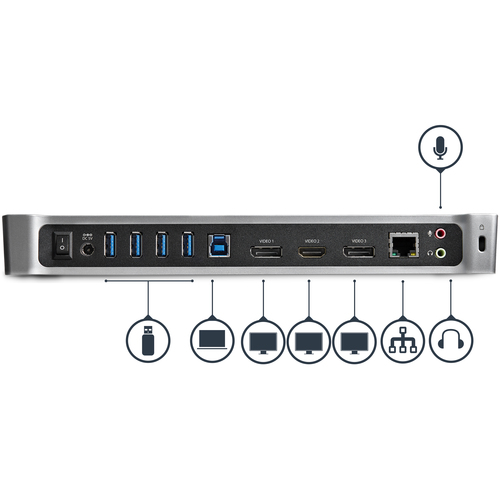

Ports & interfaces
Connectivity technology Wired
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
HDMI ports quantity 1
DisplayPorts quantity 2
Microphone in Yes
Combo headphone/mic port Yes
Headphone outputs 2
Headphone connectivity 3.5 mm
USB connector type USB Type-A
DC-in jack Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Wake-on-LAN ready Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X Yes
Full duplex Yes
Performance
Card reader integrated No
Data transfer rate 5 Gbit/s
Maximum digital resolution 3840 x 2160 pixels
Cable lock slot Yes
Product colour Black, Silver
LED indicators Activity, Link
UASP support Yes
Housing material Plastic
Brand compatibility Any brand
Certification CE, FCC, DisplayLink, TAA, REACH
Power
AC input voltage 100-240 V
Input current 1.5 A
Output voltage 5 V
Output current 6.5 A
Power consumption (typical) 32.5 W
Power plug type Type N
Compatible power plug types AU, EU, UK, US
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported ChromeOS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 80 °C
Operating relative humidity (H-H) 0 - 90%
Sustainability
Sustainability certificates RoHS

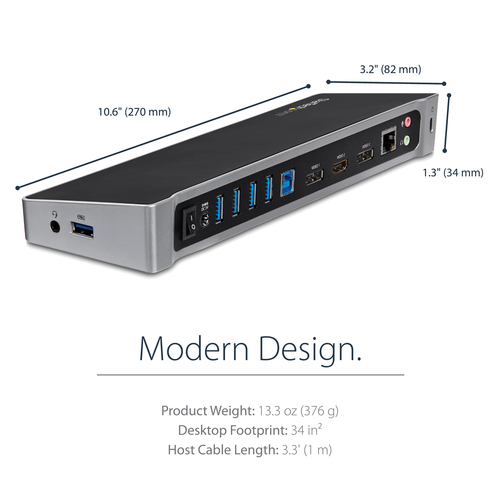

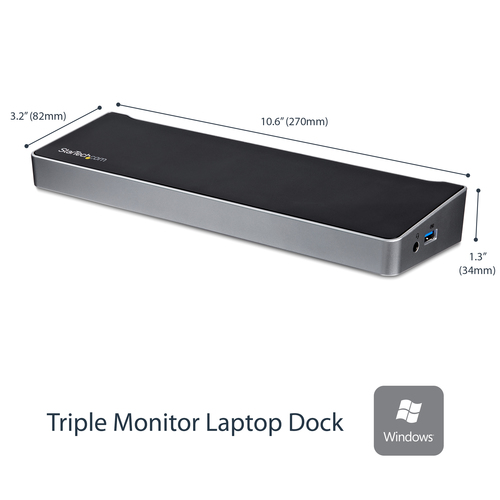

Weight & dimensions
Width 82 mm
Depth 270 mm
Height 34 mm
Weight 376 g
Packaging data
Package width 296 mm
Package depth 164 mm
Package height 71 mm
Package weight 1.03 kg

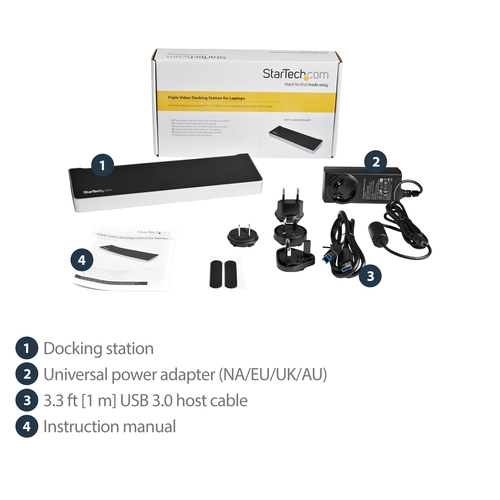

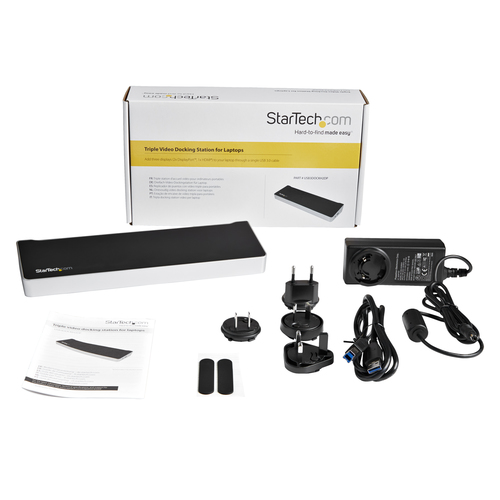

Packaging content
Cables included USB
AC adapter included Yes
Manual Yes
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case width 363 mm
Master (outer) case length 373 mm
Master (outer) case height 395 mm
Harmonized System (HS) code 84733020
Other features
Chipset DisplayLink - DL-5910, VLI - VL812
Number of microphone inputs 1
USB data transfer rates 5000 Mbit/s
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
