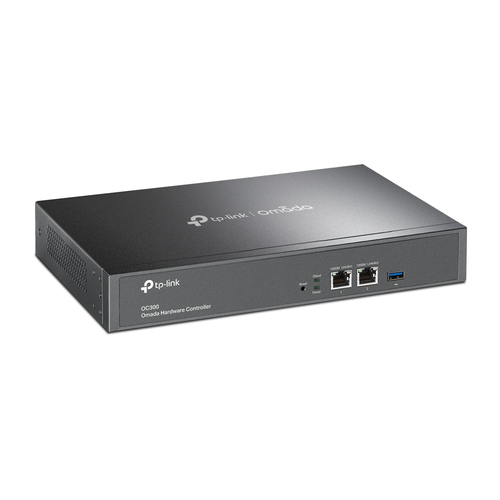

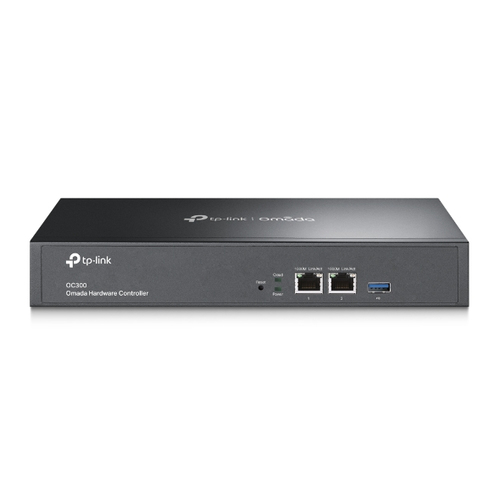

TP-Link Omada OC300 gateway/controller
TP-Link Omada Hardware Controller
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- OC300
- SKU
- JCT6HTJJ0BFM9
- EAN/GTIN
- 6935364053208
- Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers
- Cloud access to manage from anywhere, anytime
- Locally monitor and manage devices with the ultimate security and stability
- The Omada app for convenient management
- Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup
- Batch management, multi-site management, and remote firmware updates benefit network maintenance
- The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution
- Network topology helps IT admins quickly see and troubleshoot connections at a glance
€201.17
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Centralized Management for Access Points, Switches, and Gateways
TP-Link Omada Hardware Controller. Product colour: Black, Rack capacity: 1U. Processor manufacturer: ARM, Processor family: ARM Cortex, Internal memory: 2000 MB. Supported protocols: Routing/NAT/Session Limit/Bandwidth Control VPN (IPSec/L2TP/PPTP/OpenVPN) RADIUS.... Ethernet LAN data rates: 10,100,1000 Mbit/s, VPN support: VPN (IPSec/L2TP/PPTP/OpenVPN). Security algorithms: SNMP, SSH

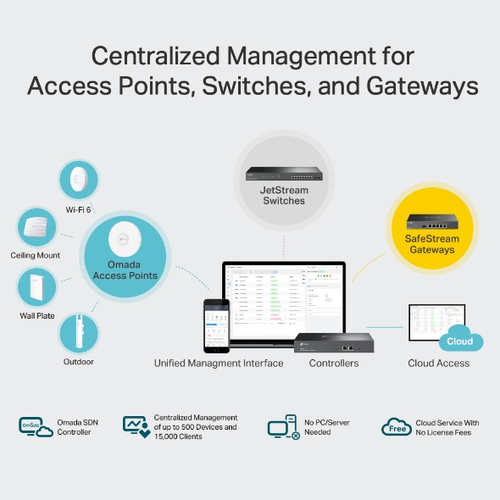

Centralized Management for Access Points, Switches, and Gateways
OC300, the hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of access points, switches, and gateways—all controlled from a single interface.

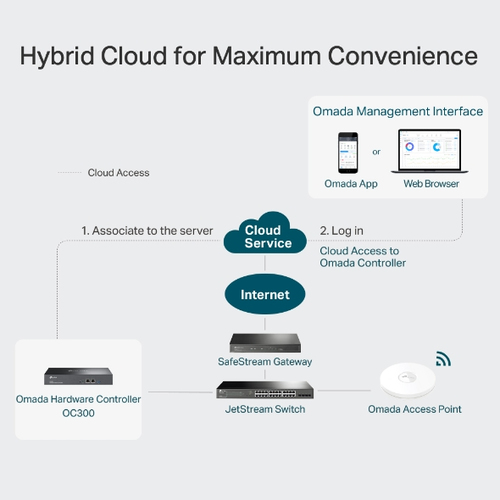

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC300 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

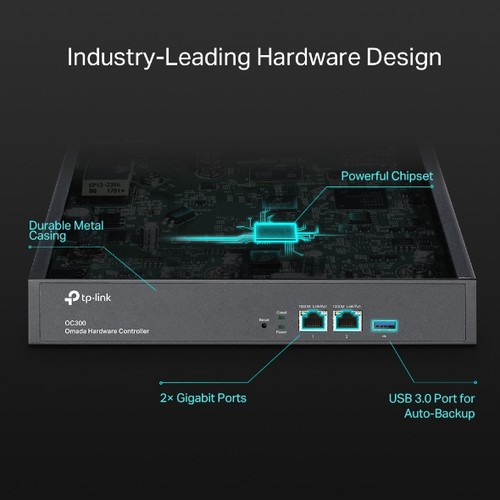

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC300 has enough processing power to support the massive management of your business network. Rackmount/desktop design benefits easier and flexible installation.
Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Greater Convenience with the Omada App
Remotely access and configure your whole network with a tap of your phone from anywhere in the world.
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Features | |
| Antenna type | Internal |
| Performance | |
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Number of processors installed | 1 |
| Internal memory | 2048 MB |
| Internal memory type | DDR4 |
| Flash memory | 8000 MB |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Security | |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| VLAN support | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 400 mm |
| Package height | 80 mm |
| Package weight | 1.91 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
