StarTech.com POEINJ4G network extender

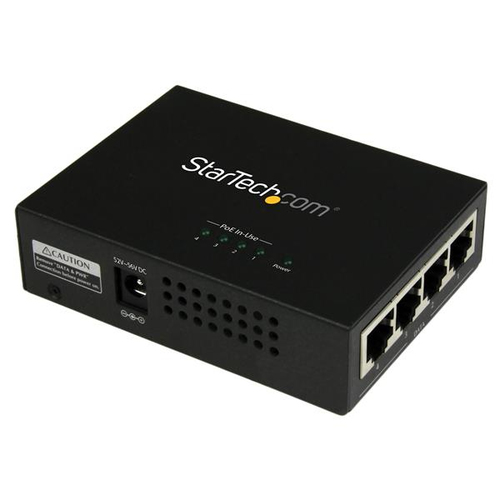

StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af


Brand
STARTECH
Product code
POEINJ4G
SKU
71PDTYO64WCRW
EAN/GTIN
0065030859752
  • Network transmitter 100 m 2000 Mbit/s
  • 10/100/1000Base-T(X)
  • Power over Ethernet (PoE)
  • Black
€153.81 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.

More power, with less cost and hassle

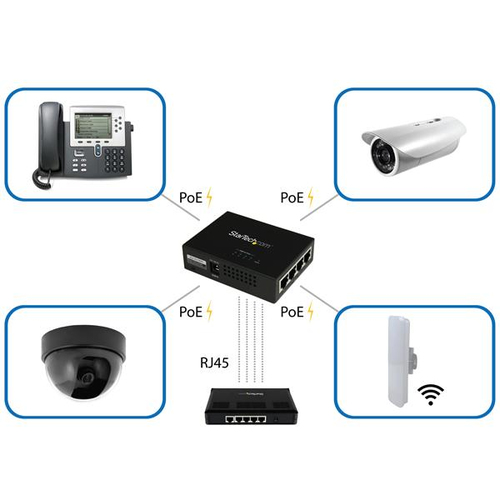

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
Type Network transmitter
Maximum transfer distance 100 m
Data transfer rate 2000 Mbit/s
Auto MDIX IEEE Yes
Auto-negotiation Yes
Duplex system Full
Plug and Play Yes
Mean time between failures (MTBF) 50000 h
Network
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces

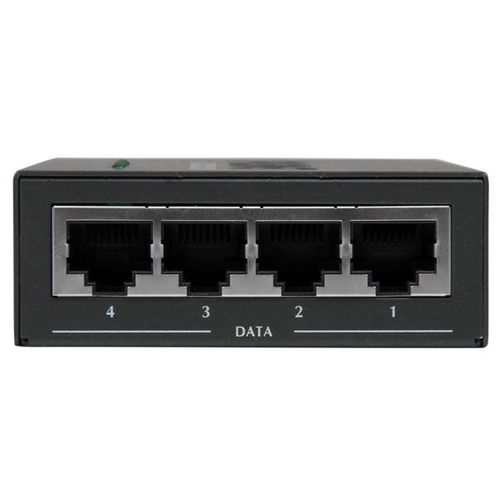

Ethernet LAN (RJ-45) ports 8

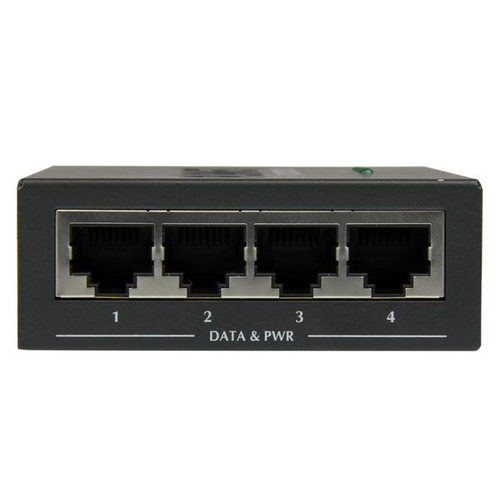

Power over Ethernet (PoE) ports quantity 4

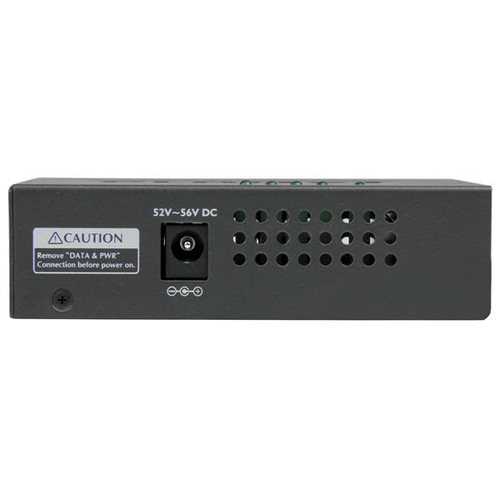

DC-in jack Yes
Design
Product colour Black
Housing material Steel
LED indicators PoE, Power
Certification CE, FCC
Power
AC input voltage 100 - 240 V
Power consumption (max) 120 W
Output voltage 52 V
Output current 2.31 A
Power over Ethernet (PoE) Yes
Power plug type Type M
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 70 mm
Depth 94 mm
Height 26 mm
Weight 204 g
Technical details
Sustainability certificates RoHS
Packaging content
Cables included AC
Manual Yes
AC adapter included Yes
Packaging data
Package width 180 mm
Package depth 305 mm
Package height 90 mm
Package weight 1.63 kg
Logistics data
Harmonized System (HS) code 85176990
