StarTech.com PCI Express to 4 Slot PCI Expansion System
- Brand
- STARTECH
- Product code
- PEX2PCI4
- SKU
- 5LYTEXU05PJP3
- EAN/GTIN
- 0065030825184
Product Info

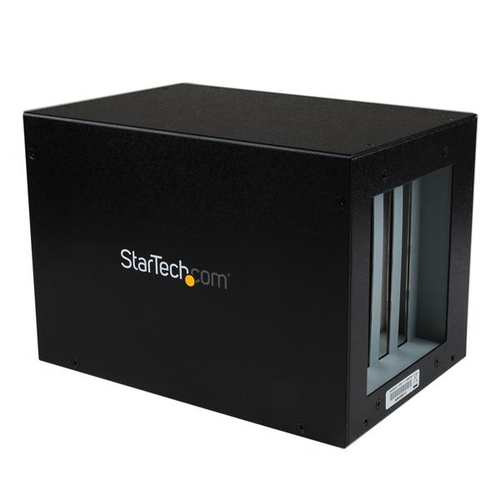

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.

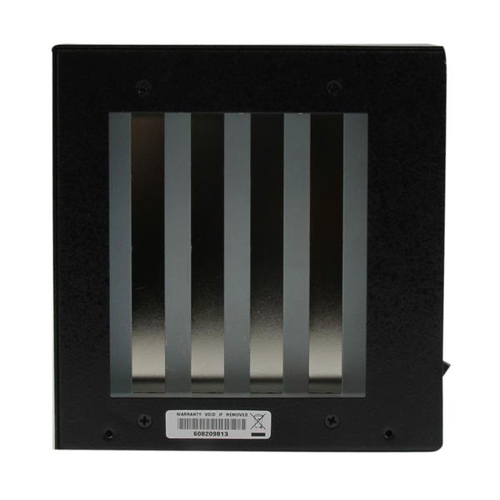

The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard.
A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Convert a single PCI Express slot to four additional external PCI slots without any driver or software installation required
- External expansion enclosure simplifies swapping PCI cards, without ever having to move or take apart the main desktop/server
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Design | |
|---|---|
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Features | |
| Plug and Play | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 137 mm |
| Depth | 204 mm |
| Height | 142 mm |
| Weight | 2.4 kg |
| Packaging data | |

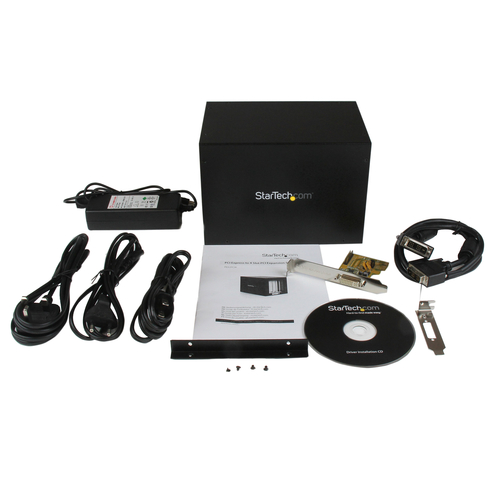

| Cables included | AC, DVI |
| Manual | Yes |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 210 mm |
| Package weight | 2.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Ports quantity | 4 |
