StarTech.com MCMGBSCMM055 network media converter

StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex


Brand
STARTECH
Product code
MCMGBSCMM055
SKU
0C3JN3U8FZ5UB
EAN/GTIN
0065030878227
  • Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks_x000D_
  • Provides a cost-effective Ethernet to fiber/copper to fiber link_x000D_
  • Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)_x000D_
  • Compact design and wall mountable_x000D_
  • Non-blocking full wire-speed forwarding rate_x000D_
  • Provides DIP switch supporting Link Fault Pass-through function_x000D_
€81.78 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)

Network
Maximum data transfer rate 1000 Mbit/s
Converter input interface 100Base-TX, 1000Base-T
Converter output interface 1000Base-SX
Networking standards IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Jumbo frames support Yes
Jumbo frames 9000
Flow control support Yes
Auto MDI/MDI-X Yes
Store-and-forward Yes
Duplex system Full
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SC
Performance
Maximum transfer distance 550 m
Wavelength 850 nm
Wavelength-division multiplexing (WDM) No
Fiber mode structure Multi-mode
Mean time between failures (MTBF) 50000 h
Design
Internal No
LED indicators Activity, Link, Power
Product colour Black
Housing material Steel
Certification CE, FCC, REACH
Power
Input voltage 100 - 240 V
Input current 0.5 A
Output voltage 5 V
Output current 2.6 A
Power consumption (typical) 5 W
External power adapter Yes
Power plug type Type N
Weight & dimensions
Width 97 mm
Depth 70 mm
Height 26 mm
Weight 200 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Packaging data
Package width 280 mm
Package depth 133 mm
Package height 66 mm
Package weight 564 g
Packaging content

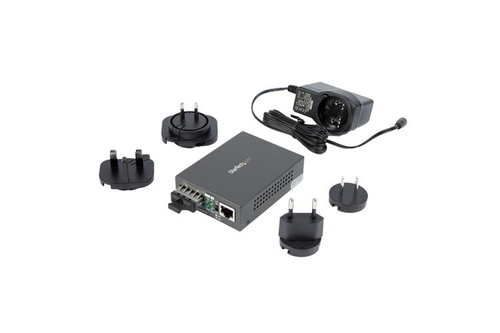

AC adapter included Yes
Quick installation guide Yes
Technical details
Sustainability certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Master (outer) case width 595 mm
Master (outer) case length 375 mm
Master (outer) case height 320 mm
Products per master (outer) case 20 pc(s)
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
