StarTech.com 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA
- Brand
- STARTECH
- Product code
- ICUSB422
- SKU
- U7FOQI25Y9S1U
- EAN/GTIN
- 0065030836548
- 1.8 m
- DB9 M Straight Male
- USB-A FM Straight Female
- Black
Product Info
Add an RS422/485 serial port to your system through USB; features COM port retention

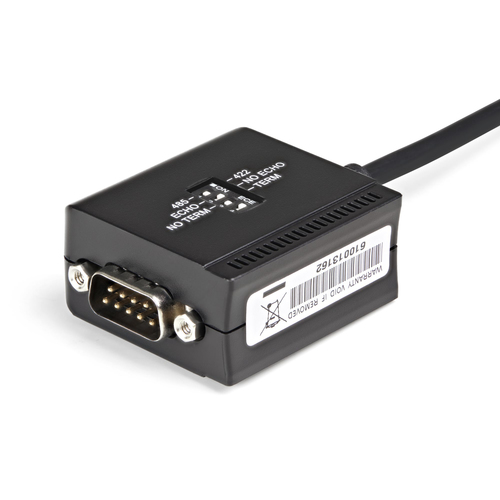

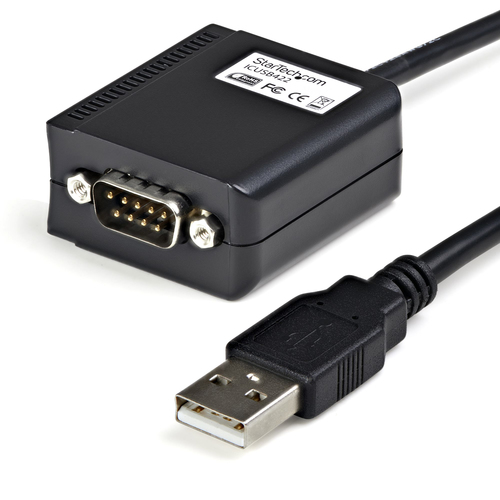

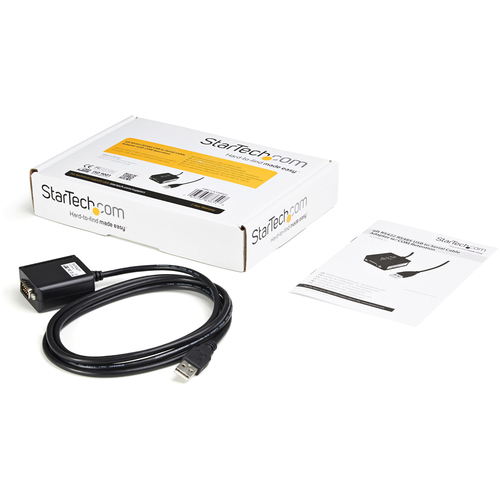

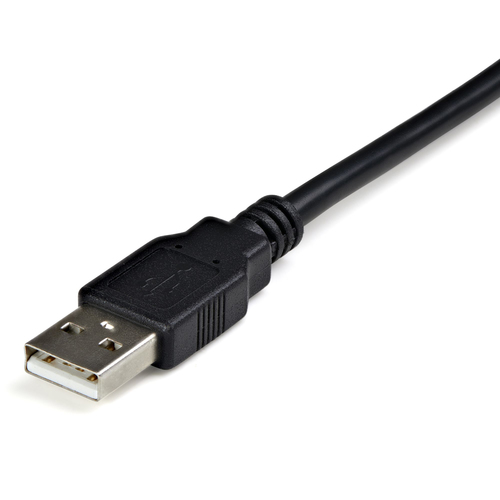

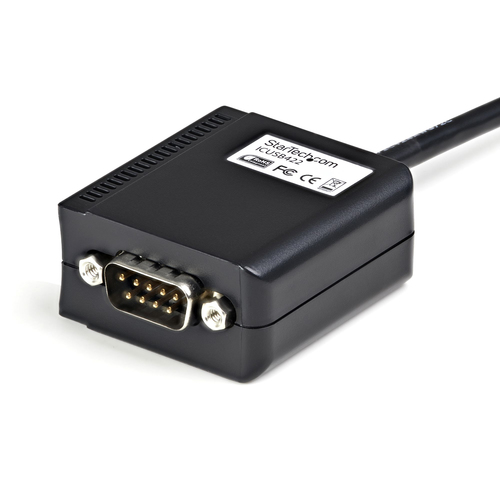

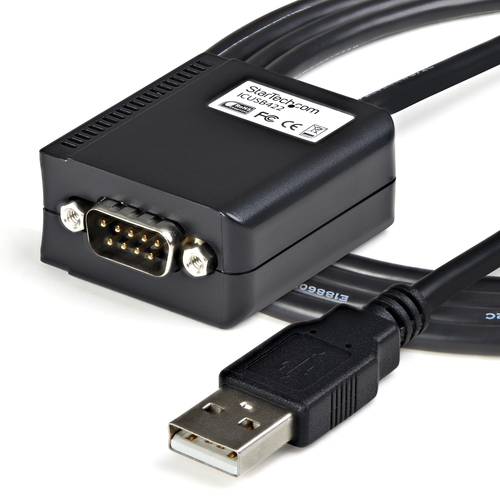

The ICUSB422 6 ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software. The RS422/RS485 USB Adapter is fully powered via the host USB connection and provides power to the attached serial device without requiring an external power adapter. COM Port Retention saves the assigned port settings, allowing you to disconnect and re-connect the adapter with little to no configuration required on the host computer. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB Powered - no power outlet required, and no cumbersome AC adapter to carry around
- Supports high speed RS-422/RS-485 communication up to 921.6kbps; 400% faster than most USB to RS-232 adapters
- COM retention saves the assigned port settings for the device, so disconnecting/reconnecting is hassle-free
| Ports & interfaces | |
|---|---|
| Connector 1 | DB9 M |
| Connector 2 | USB-A FM |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Performance | |
| Product colour | Black |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+ |
| Weight & dimensions | |
| Weight | 100 g |
| Packaging data | |
| Package width | 40 mm |
| Package depth | 230 mm |
| Package height | 160 mm |
| Package weight | 220 g |
| Logistics data | |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 260 mm |
| Other features | |
| Minimum system requirements | Win 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ 2008(32/64bit)/ CE(4.2/5.2/6.0) Mac 9.8/OS X Linux 2.4.x + |
| Dimensions (WxDxH) | 41.5 x 1778 x 22.1 mm |
