StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
- Brand
- STARTECH
- Product code
- RKCONS1916K
- SKU
- ZHX1FIOT2HTPF
- EAN/GTIN
- 0065030872539

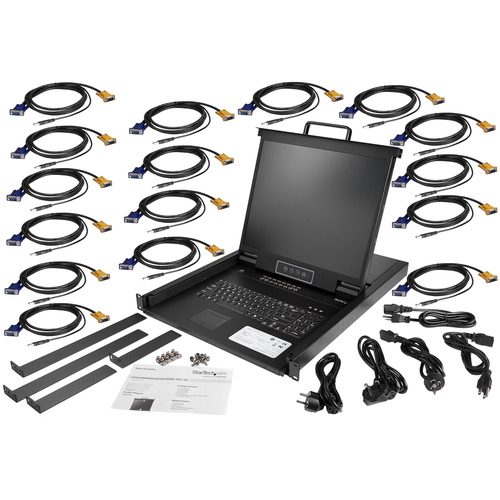

- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0_x000D_
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan_x000D_
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8' [60.5 cm] to 35' [89 cm] (incl. mounting hardware)_x000D_
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours._x000D_
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support_x000D_
- _x000D_
Product Info
Control your server or KVM switch from a centralized rack-mount KVM console
This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle

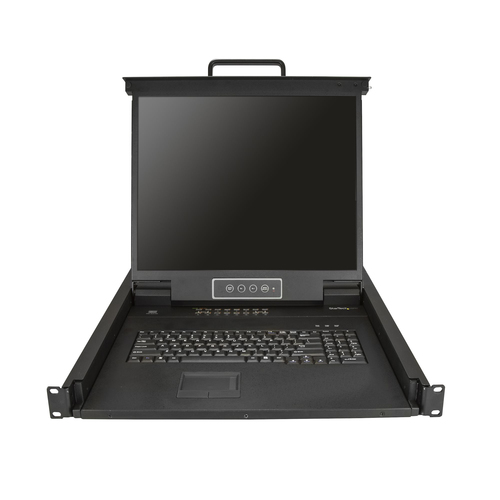

This 16-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring

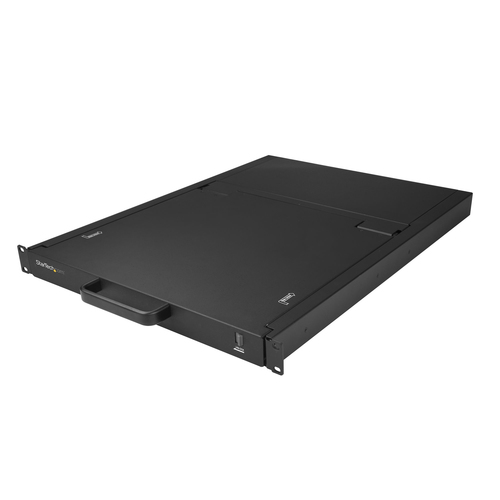

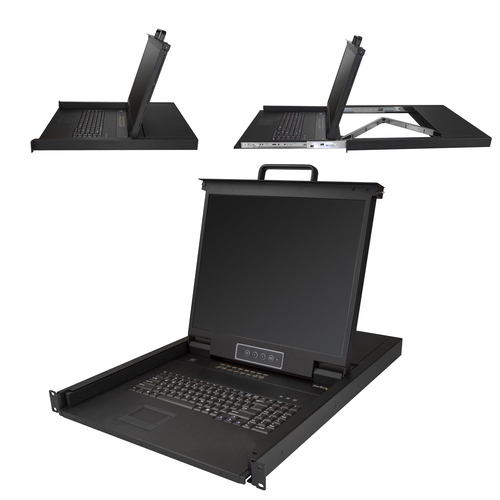

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8' [60.5 cm] to 35' [89 cm] (incl. mounting hardware)
| Display | |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Pixel pitch | 0.264 x 0.264 mm |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 bit |
| Technical details | |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Audio support | No |
| Daisy chain | No |
| Key lock | No |
| Number of computers controlled | 16 |
| Sustainability certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |

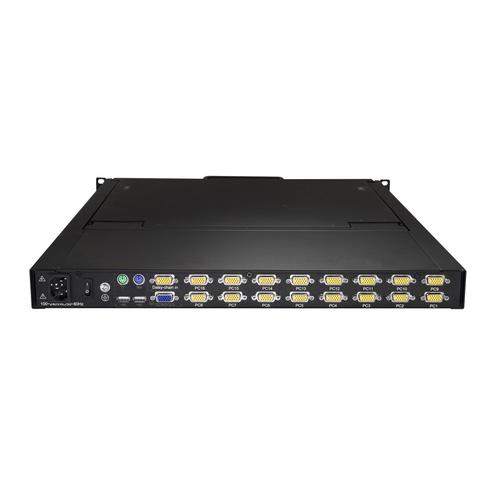

| VGA (D-Sub) ports quantity | 18 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Built-in touchpad | Yes |
| Certificates | |
| Certification | PSE, FCC, UL, CE, REACH |
| Power | |
| Power consumption (typical) | 23 W |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 483 mm |
| Height | 43 mm |
| Depth | 643 mm |
| Weight | 13.5 kg |
| Mounting depth (min) | 60.5 cm |
| Mounting depth (max) | 89 cm |
| Packaging data | |
| Package weight | 21 kg |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 190 mm |
| Packaging content | |
| Cables included | KVM |
| Screws included | Yes |
| Number of screws | 8 |
| Mounting brackets included | Yes |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 1 pc(s) |
