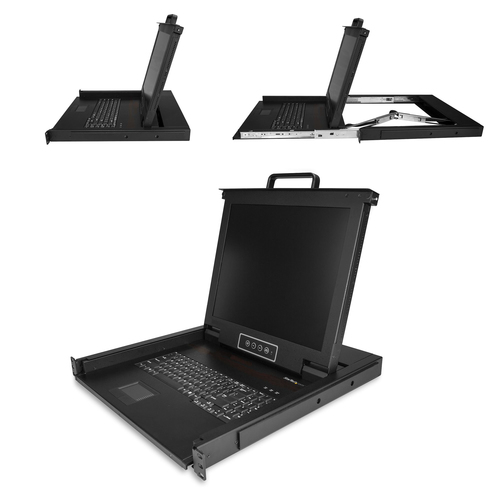

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
- Brand
- STARTECH
- Product code
- RKCONS1701
- SKU
- X9YXHMV8QQPVG
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
- 99 key full keyboard with numeric keypad + Trackpad
- Supports VGA and USB
- Integrated power supply
Product Info
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

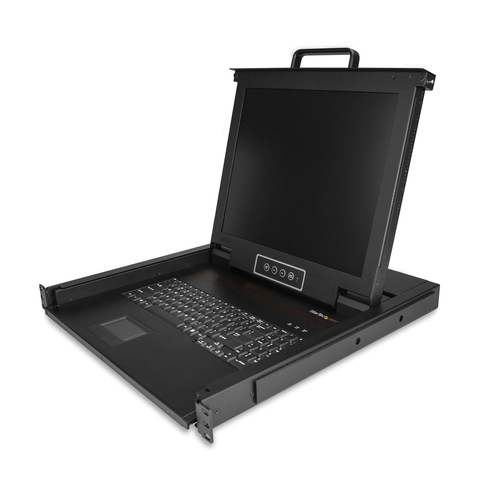

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

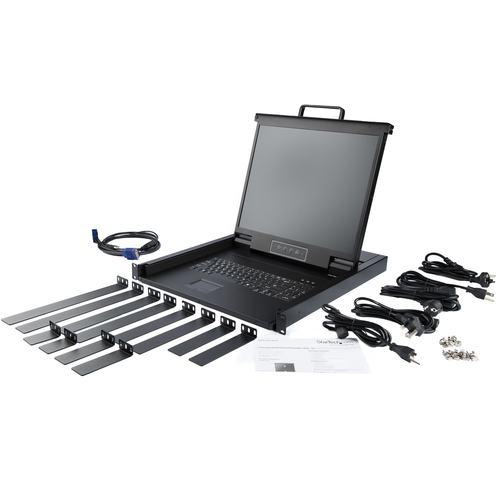

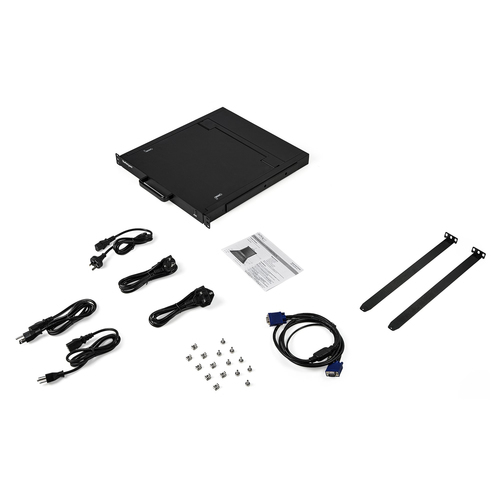

This single-port KVM console includes everything you need to set up right out of the box:
1 VGA KVM Cable
Mounting Rails
M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Aspect ratio | 5:4 |
| Display type | LCD |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Colour depth | 8 bit |
| Technical details | |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 - 80% |
| Rack mounting | Yes |
| Daisy chain | No |
| Key lock | No |
| IP control | No |
| LED indicators | Power, Status |
| Cable length | 1.82 m |
| Sustainability certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Certificates | |
| Certification | CE, FCC, PSE, UL |
| Power | |
| Power consumption (typical) | 13 W |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 448 mm |
| Height | 471 mm |
| Depth | 42.5 mm |
| Weight | 11.6 kg |
| Mounting depth (min) | 45 cm |
| Mounting depth (max) | 79 cm |
| Packaging data | |
| Package weight | 17.1 kg |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Packaging content | |
| Cables included | KVM |
| Screws included | Yes |
| Number of screws | 8 |
| Mounting brackets included | Yes |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |
