StarTech.com ST1030USBM interface hub
StarTech.com 10-Port Industrial USB 3.0 Hub - ESD and Surge Protection~10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
- Brand
- STARTECH
- Product code
- ST1030USBM
- SKU
- 2MY4VOAXMU959
- EAN/GTIN
- 0065030863001
- MAXIMIZE USB PERFORMANCE: This 10-port USB 3.2 Gen 1 (5Gbps) hub adds ten independent USB ports to your server room or industrial environment
- PROTECT YOUR DEVICES: This USB 3.0 hub protects your connected devices with 15kV Air and 8kV contact ESD protection; It provides a surge protection of 350W on the downstream and upstream USB ports

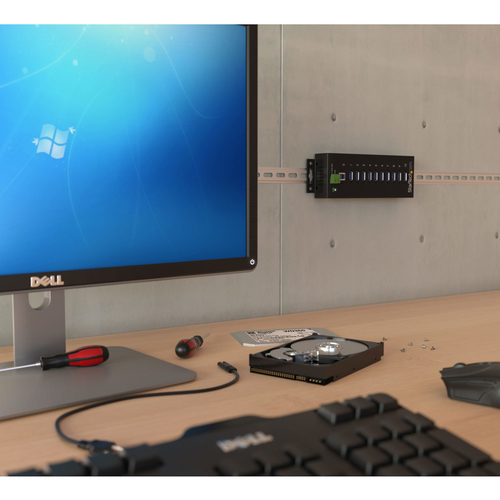

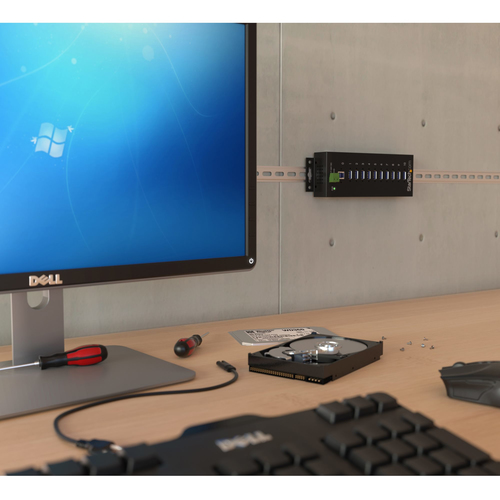

- VERSATILE INSTALLATION OPTIONS: built-in mounting brackets and included DIN mount rails to securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or in a rack
- POWERED HUB: Allows 7 ~ 24VDC input through included terminal block or 65W external power adapter; Supports USB Battery Charging Specification 1.2
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB hub is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
€183.41
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
StarTech.com 10-Port Industrial USB 3.0 Hub - ESD and Surge Protection~10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 56 mm, Depth: 198 mm, Height: 31 mm. Package width: 169 mm, Package depth: 246 mm, Package height: 57 mm
Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 GbpsThis TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.Perfect for Harsh EnvironmentsThis industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.Connect & Charge More USB DevicesDesigned for a high volume of connections, this robust USB 3.0 hub offers ten connection ports, for connecting more USB devices and peripherals.The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.Locate the Hub Where You Need it MostWith versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.Works With Your Older USB DevicesThe rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy USB 3.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions.The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| Ports quantity | 10 |
| Terminal block port | Yes |
| Features | |
| Data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Housing material | Steel |
| Surge protection | Yes |
| LED indicators | Power |
| Cable length | 2.032 m |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Power | |
| Input voltage | 7 - 24 V |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 198 mm |
| Height | 31 mm |
| Weight | 357 g |
| Packaging data | |
| Package width | 169 mm |
| Package depth | 246 mm |
| Package height | 57 mm |
| Package weight | 600 g |

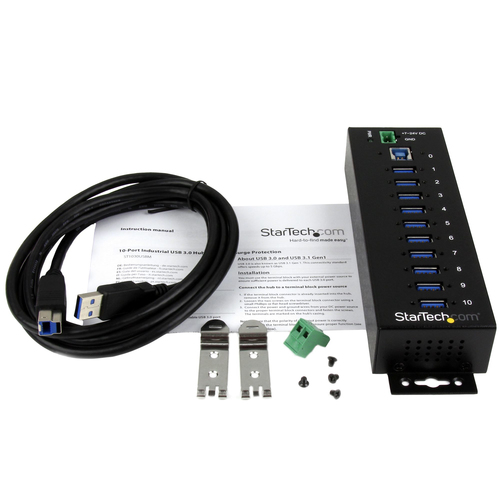

| Packaging content | |
| Cables included | USB |
| Manual | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Mean time between failures (MTBF) | 119388 h |
| Logistics data | |
| Master (outer) case width | 444 mm |
| Master (outer) case length | 526 mm |
| Master (outer) case height | 338 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | Genesys Logic - GL3520 |
