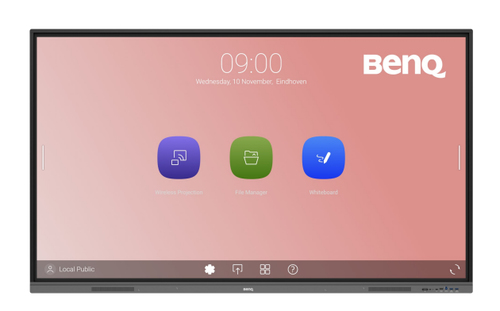

BenQ RE6503 interactive whiteboard

Display

Display diagonal 165.1 cm (65")

Display brightness 400 cd/m²

Display number of colours 1.07 billion colours

Display resolution 3840 x 2160 pixels

Anti-glare screen Yes

HD type 4K Ultra HD

Panel type TFT

LED backlight Yes

LED backlighting type Direct-LED

Native aspect ratio 16:9

Contrast ratio (typical) 1200:1

Contrast ratio (dynamic) 30000:1

Response time 8 ms

Maximum refresh rate 60 Hz

Touchscreen Yes

Touch technology Multi-touch

Touchscreen type Infrared

Number of simultaneous touchpoints 40

Touch system response time 10 ms

Viewing angle, horizontal 178°

Viewing angle, vertical 178°

Pixel pitch 0.37 x 0.37 mm

Colour gamut 72%

Working area 1428.5 x 803.5 mm

Screen glass thickness 3.2 mm

Surface material Tempered glass

Low Blue Light technology Yes

Hardness 9H

Accuracy touch 1.5 mm

Computer system

Operating system installed Android 11

Maximum internal memory 4 GB

RAM capacity 32 GB

Audio

Built-in speaker(s) Yes

Number of built-in speakers 2

Speaker power 20 W

Network

Ethernet LAN Yes

Ethernet LAN data rates 100,1000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 2.0 ports quantity 2

USB 2.0 Type-B Touch ports quantity 2

HDMI ports quantity 3

USB Type-C ports quantity 1

HDMI version 2.0

HDMI output ports quantity 1

Ethernet LAN (RJ-45) ports 2

VGA (D-Sub) ports quantity 1

Line-in Yes

Line-out Yes

OPS slot 1

S/PDIF out port Yes

Headphone connectivity 3.5 mm

Ergonomics

Product colour Black

VESA mounting Yes

Panel mounting interface 600 x 400 mm

Certification CE

Power

Power consumption (typical) 82 W

Power consumption (standby) 0.5 W

AC input voltage 100 - 240 V

AC input frequency 50 - 60 Hz

Energy efficiency class G

Energy efficiency scale A to G

System requirements

Windows operating systems supported Windows 10, Windows 7, Windows 8

Mac compatibility Yes

Mac operating systems supported Yes

Linux operating systems supported Yes

Mobile operating systems supported Android

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 90%

Storage temperature (T-T) -10 - 60 °C

Storage relative humidity (H-H) 10 - 90%

Weight & dimensions

Width 1488.3 mm

Depth 87.5 mm

Height 896.6 mm

Weight 36 kg

Packaging data

Package weight 46 kg

Quantity per pack 1 pc(s)

Packaging content

Cables included HDMI, Power, USB, USB Type-C, VGA

Remote control included Yes

Mounting kit Yes

Sustainability

Sustainability certificates CE
