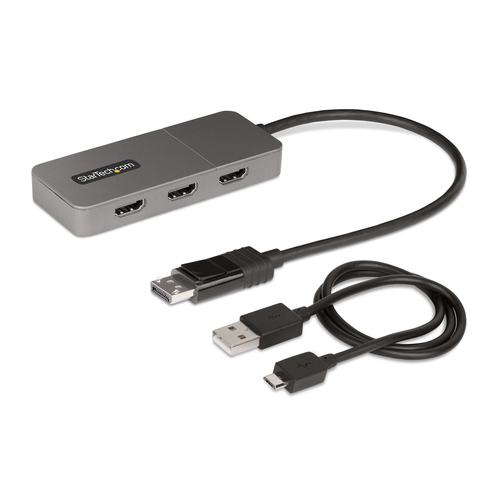

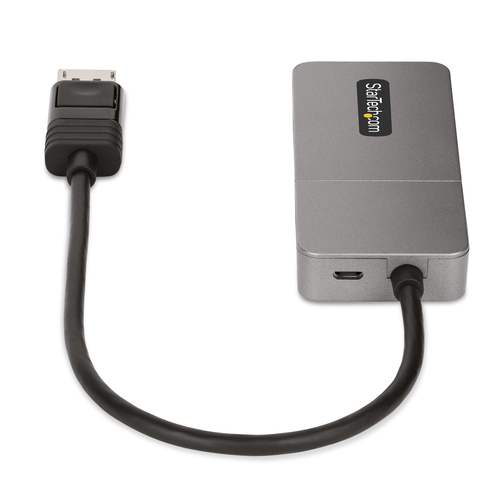

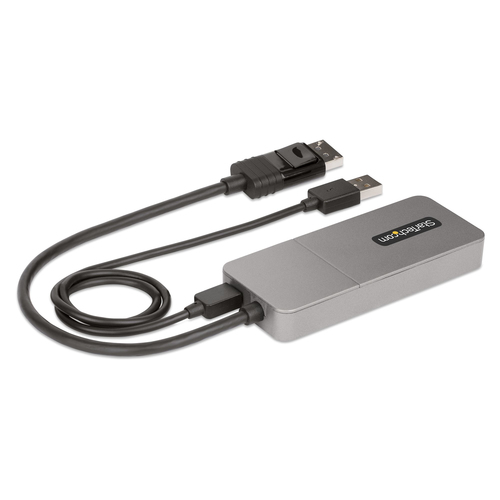

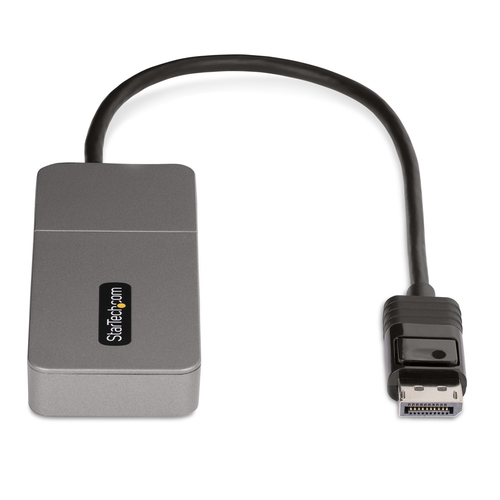

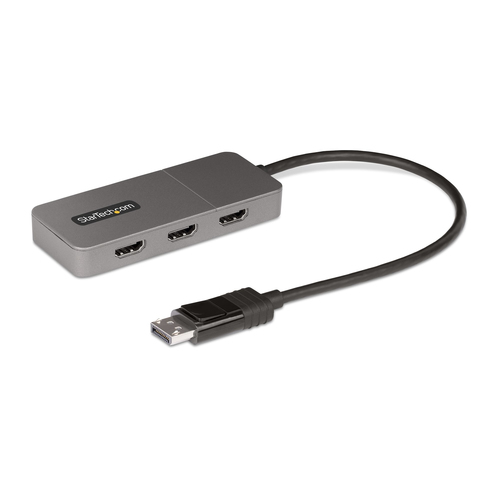

StarTech.com 3-Port MST Hub - DisplayPort to 3x HDMI, Triple 4K 60Hz Monitors, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only
- Brand
- STARTECH
- Product code
- MST14DP123HD
- SKU
- 9SH7XH7G0SYRZ
- EAN/GTIN
- 0065030897631

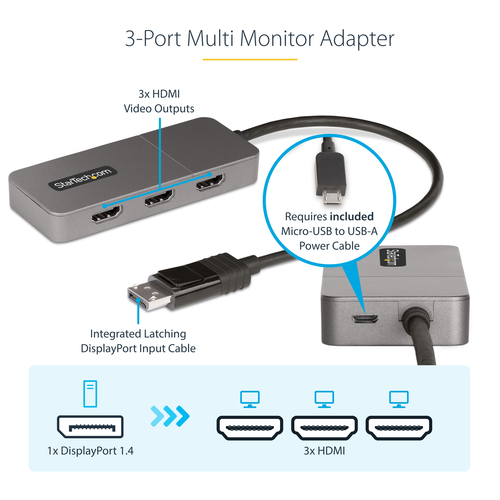

- MULTI-MONITOR CONFIGURATION: DisplayPort to Triple-HDMI MST Hub drives up to three 4K 60Hz displays from a DP 1.4 host with DSC; USB Powered; Supports HDR and 7.1ch HDMI Audio; HDCP 2.2; Backwards compatible with DP 1.2 hosts at lower resolutions

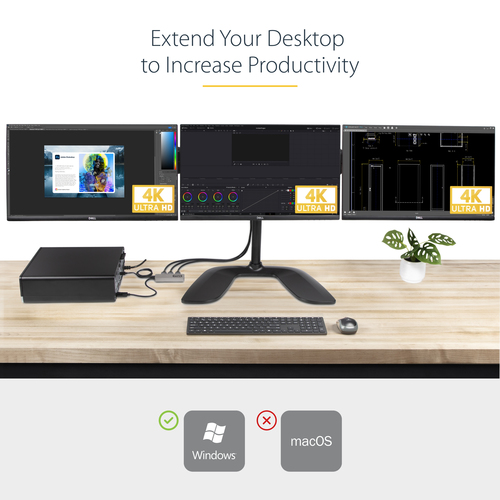

- NO DRIVERS OR SOFTWARE: Increase productivity by adding three extended or mirrored displays to a Windows desktop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Windows computers with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC support up to three 4K 60Hz monitors; See resolution chart for a list of other supported display configurations
- EXTRA-LONG CABLE: 1ft (30cm) built-in cable provides extended reach and reduced port strain, enabling flexible placement of the adapter; Adapters with short cables provide no flexibility in placement, adding clutter and cables to the workspace
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the adapter
Product Info

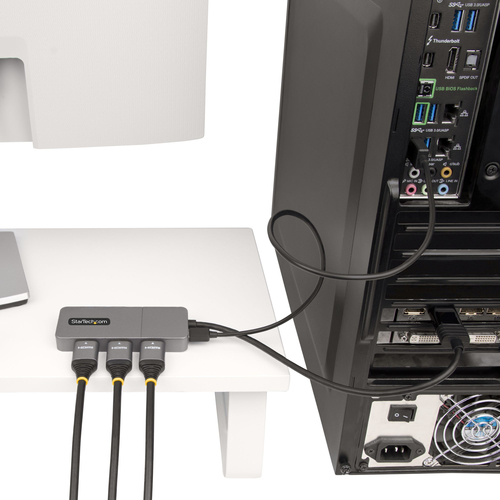

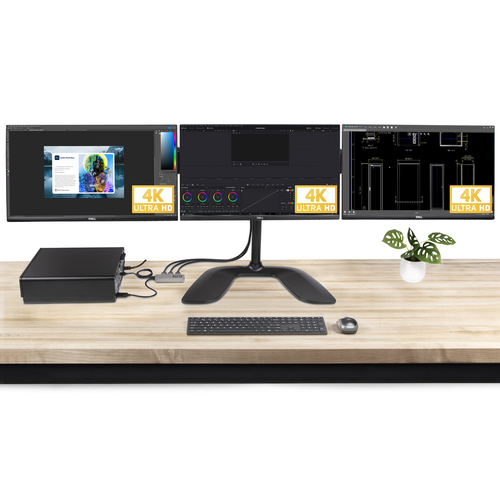

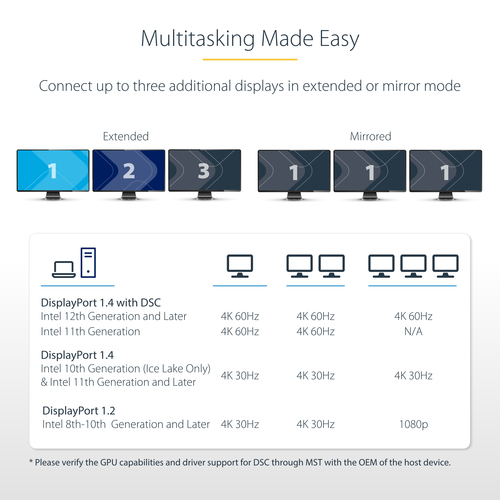

Create a high-performance triple-monitor workstation by connecting a DisplayPort Desktop to three independent HDMI monitorsConnect three HDMI monitors to a DisplayPort-enabled host device, using this DisplayPort to HDMI MST Hub.Drive Triple 4K 60Hz Displays with HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into three independent signals, one for each HDMI-enabled display. Support for High Dynamic Range (HDR) facilitates enhanced contrast, brightness, color, and luminosity.Host ConnectionMaximum Resolution Output 1Maximum Resolution Output 2Maximum Resolution Output 3Example Host Processor/GraphicsDisplayPort 1.4 with DSC4K 60Hz4K 60Hz4K 60HzIntel 12th Gen Processors & LaterDedicated AMD & Nvidia GPU's that support DSC4K 60Hz4K 60HzN/AIntel 11 th Gen with DSCDisplayPort 1.44K 30Hz4K 30Hz4K 30HzIntel 10 th Gen (Ice Lake Only)Intel 11th Gen Processors & LaterDedicated AMD and Nvidia GPU's that support DP 1.4DisplayPort 1.24K 30Hz4K 30Hz1080pIntel 8 th - 10th Gen Processors & Later*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host deviceMultitasking Made EasyConfigure the triple-HDMI displays in extended or mirrored mode. Create a high-performance workstation by adding three independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.Driverless for Rapid Deployment and Seamless User Setup ExperienceThis MST Hub achieves maximum performance with Windows desktops featuring Intel 12th generation (and later) processors, or dedicated graphics cards with DisplayPort 1.4 output ports and DSC support. Plug-and-play installation with no drivers or software required. The 12in (30cm) built-in DisplayPort cable provides options for flexible installation configurations, reducing the amount of strain on the port and connector. Additionally, this triple-monitor splitter is USB Powered and includes a 20inch (50cm) USB Micro-B power cable.The StarTech.com Advantage
| Features | |
|---|---|
| Power source | USB |
| Cable length | 0.3 m |
| Connector 1 | DisplayPort |
| Connector 2 | 3 x HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 2560 x 1440, 3840 x 2160, 4096 x 2160 |
| Maximum refresh rate | 60 Hz |
| Refresh rate at maximum resolution | 60 Hz |
| Product colour | Grey |
| Chipset | VMM5310, IT6563FN |
| Supported audio channels | 7.1 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |

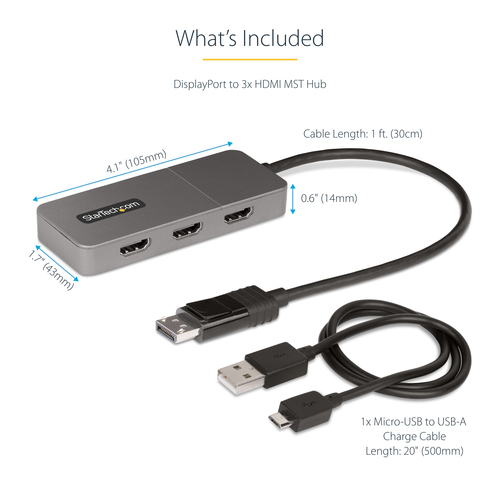

| Weight & dimensions | |
| Weight | 71 g |
| Width | 43 mm |
| Depth | 105 mm |
| Height | 14 mm |
| Packaging data | |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 115 g |
| Logistics data | |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 331 mm |
| Products per master (outer) case | 70 pc(s) |
| Other features | |
| Material | Plastic |
